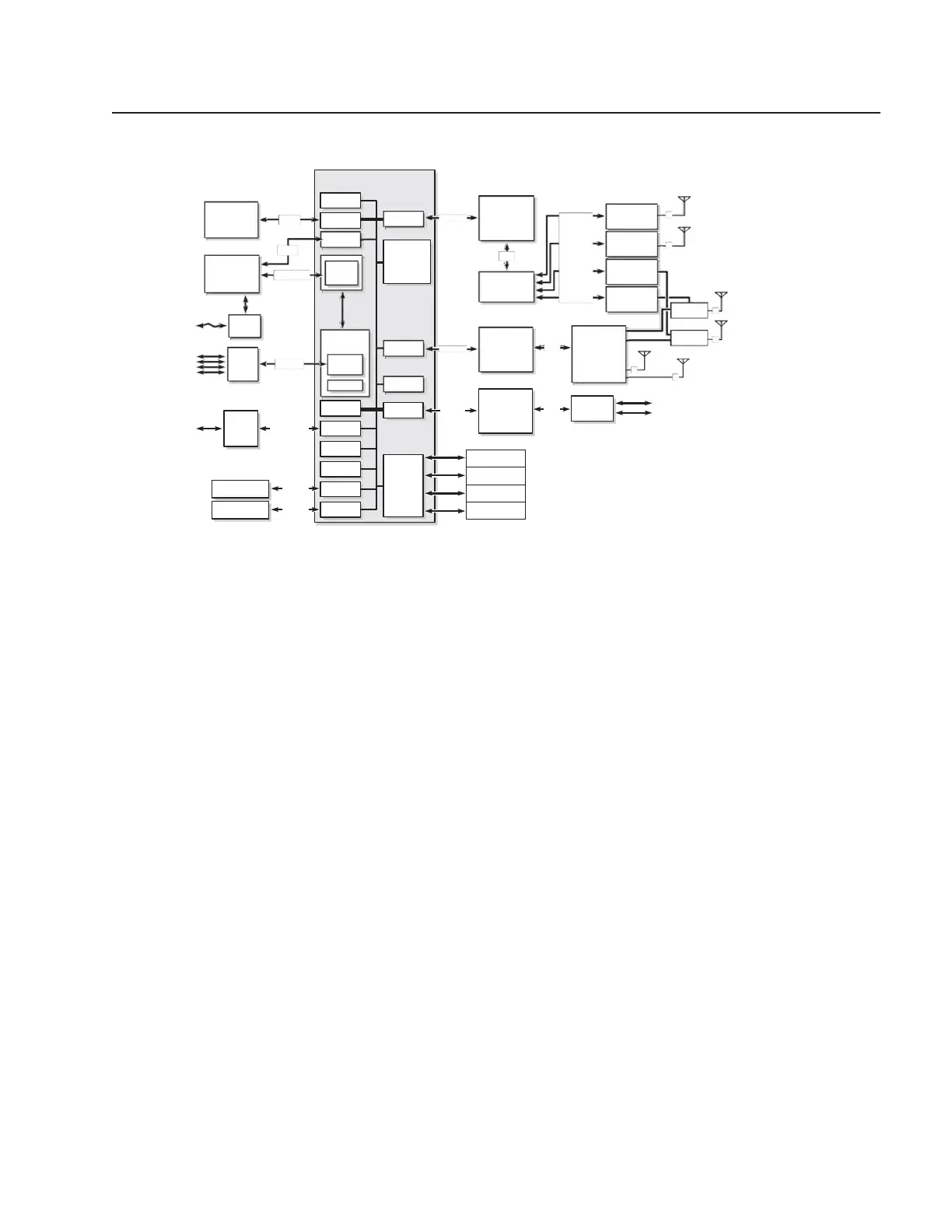

Figure 5-8 G-2426G-B ONT functional block
SPI NAND
FLASH
2Gb
UX3320
2.5Gbs
Transceiver
SPI
I2C
SerDes
DDR3
NAND
I2C
PON
MAC
SOC
PCIE1
1.0 GHz
Dual-Core
ARM A7
CPU
PCIE1
802.11ax
MAC/PHY/
Radio
MT7915AN
I/Q
802.11ax
MT7975AN
TX/RX1
TX/RX2
TX/RX3
TX/RX4
5G FEM
6
RTC7676E
5G FEM
RTC7676E
5
5G FEM
RTC7676E
5G FEM
RTC7676E
5G
ANT
2/5G
ANT
BOSA
4x1
RJ45
4xMDI
Ports
4x GE
PCIE0
PCIE0
MAC/PHY/
MT7915AN
I/Q
MT7975N
2/5G
diplexer
1
Conn
USB
3.0
Conn.
UART Conn.
USB 3.0
UART
PHY
HSGMII
MDIO
USB 3.0
USB 2.0
UART1
UART0
SPI
PCM
GPIO
PCM
Dual SLIC
PEF32002
T/R
2x RJ11
Conn.
3
ANT
4
JTAG Conn. JTAG
JTAG
36738
5.11 G-2426G-B standards compliance
G-2426G-B indoor ONTs are compliant with the following standards:
• CE marking for European standards for health, safety, and environmental protection
• EN 300-328 v1.9.1 wide band data transmission standards for 2.4GHz bands
• G.984 support GPON interface (framing)
• G.984.2 (Amd1, class B+) for GPON
• G.984.3 support for activation and password functions
• G.984.3 support for AES with operator enable/disable on per port-ID level
• G.984.3 support for dynamic bandwidth reporting
• G.984.3 support for FEC in both upstream and downstream directions
• G.984.3 support for multicast using a single GEM Port-ID for all video traffic
• G.984.4 and G.983.2 support for ONT management and provisioning
• IEEE 802.1p for traffic prioritization
• IEEE 802.1q for VLANs
• IEEE 802.3 (2012)
• IEEE 802.11 b/g/n/ac/ax for Wi-Fi
• ITU-T G.711, G.722, G.723, G.726, G.729
• SIP RFC 3261

Nokia ONT Specifications

General

Brand	Nokia
Model	ONT
Category	Network Router
Language	English
