Paper handling > 33
7. Feed the paper over the roller on the stand.
8. Set the paper onto the platen from the top of the tension bar.
9. Rotate the platen knob until the top edge of the paper reaches the roll paper, and
then set the Paper Type Lever to PULL to easily adjust the paper position.
10. Align the paper so that the exit and entry paper edges align.
11. Reset the Paper Type Lever to RPS.
12. Move the paper guide and adjust it to the width of the paper.
13. Lower the paper separator to its original position.
14. Turn the platen knob to move the paper to the point where you want printing to
start.
S
ETTING
THE
P
APER
T
HICKNESS
LEVER
There are 10 lever positions for printing purposes. The 10
th
position is also to facilitate
ribbon replacement.
Set the Paper Thickness lever for different paper types as follows:

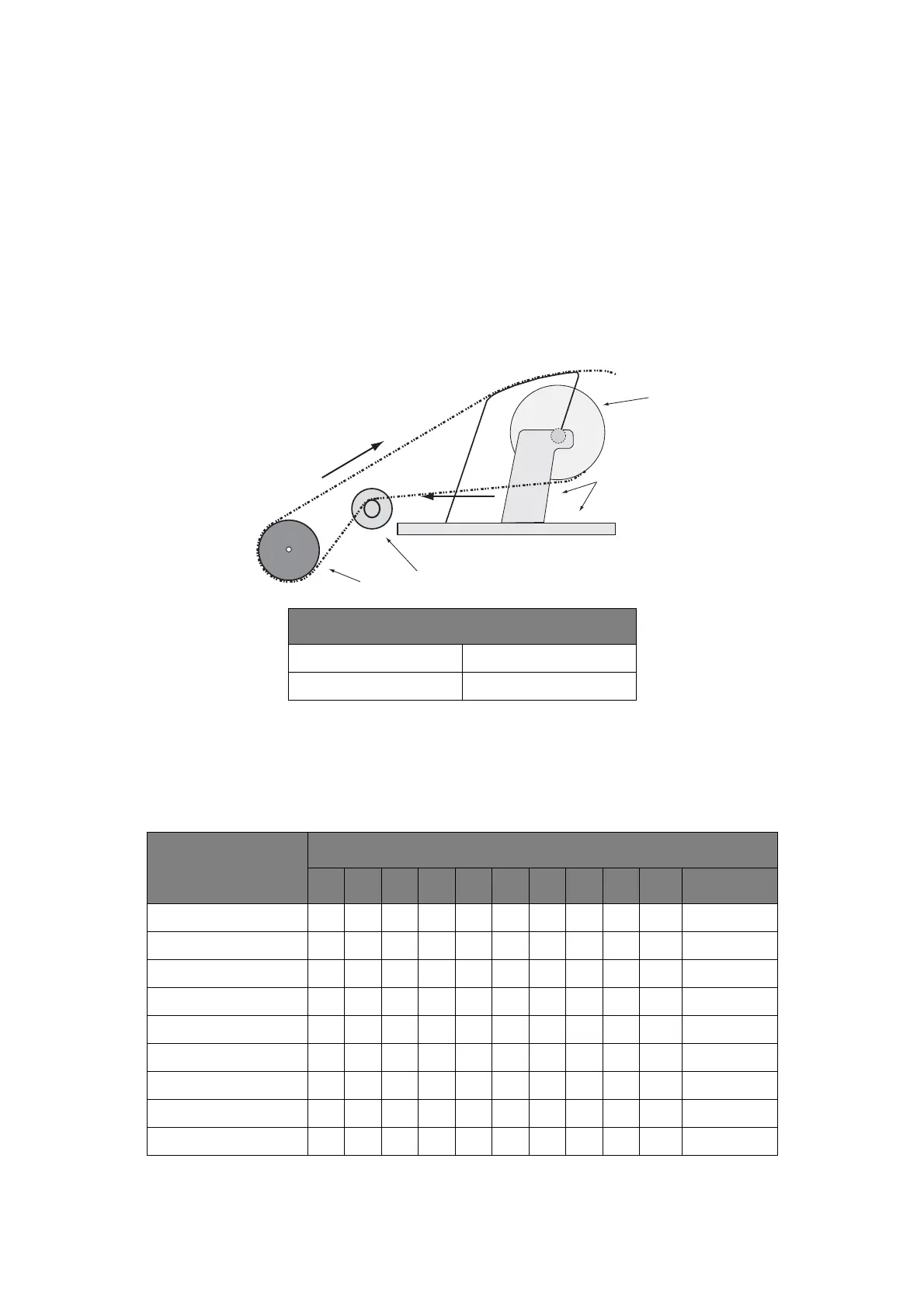

CORRECT PAPER PATH
a. Paper Roll b. Roll Paper Stand
c. Platen d. Paper Guide
PAPER TYPE
LEVER POSITION
1 2 3 4 5 6 7 8 9 10 REMARKS
Cut sheet paper See below
52 - 81 gsm X
81 - 128 gsm X
128 - 156 gsm X
Postcard X
Envelope X
Continuous paper See below
52 - 81 gsm X
81 - 128 gsm X
a
b
c
d
