Omron 3G3JX Quick Start Guide

12 JX Quick Start Guide
PROGRAMMING JX

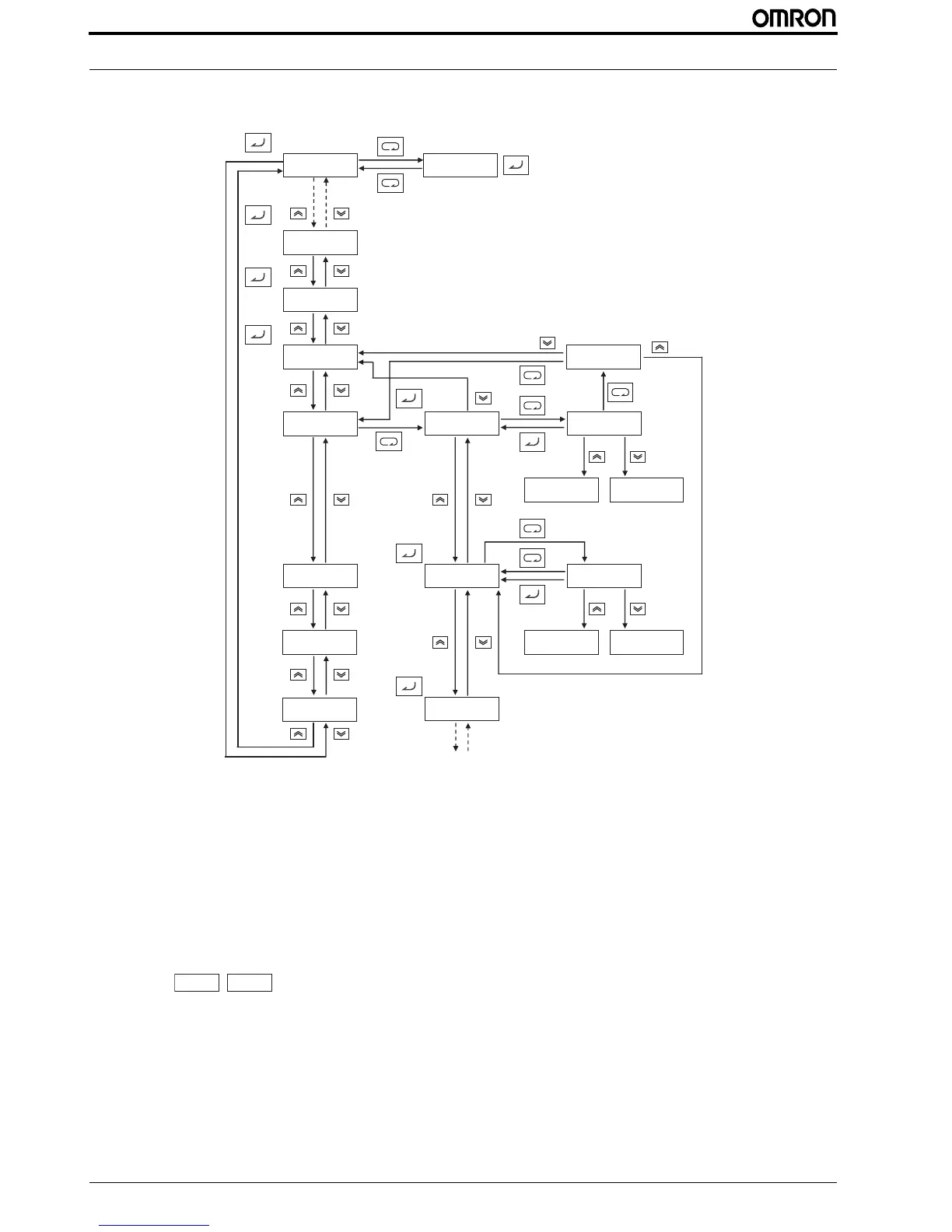

3.2 Keypad navigation
*1. Data is not stored by pressing the Mode key.
*2. Press the Enter key to store the data.
*3. When you press the Mode key after you return to the parameter number display without storing data in the extended func-
tion mode, the mode selection function is selected.
*4. When you press the Enter key with d@@@ or F001 displayed, the monitor value is stored as the initial display that appears
when the power is turned on.
*5. When you press the Enter key, the first digit of each parameter setting is stored as the initial display that appears when the
power is turned on.
(Example:
etc.)
* To display a specific monitor when the power is turned on, press the Enter key with that monitor displayed. If a parameter for
an extended function code is stored after pressing the Enter key, however, that code (A@@@, b@@@, C@@@, d@@@ or
H@@@) appears at the next power-on. To prevent this, always press the Enter key again with the desired monitor displayed after
storing a parameter.
*4
*3
*1
*1
*2
*2
d001 0.0
d083
a---
b---
c---
h---
a001
0000
f001
a001
a002
f004
*4
Press the key
*4
*4
*5
*5
*5
*5
0001 9999
0000
0001 9999
a003
f002 a---
,,

Omron 3G3JX Specifications

General

Model	3G3JX
Category	Inverter
Control Method	V/f control
Input Frequency	50/60 Hz
Communication Interface	RS-485 (optional)
Operating Temperature	-10 to 50°C
Humidity	20 to 90% RH (non-condensing)
Enclosure Rating	IP20
Input Voltage	200 to 240 V AC
Output Voltage	Three-phase 200 to 240 V AC
Output Frequency	400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication	RS-485
Braking Unit	Built-in
Power Range	0.1 to 15 kW
Cooling Method	Fan-cooled
Storage Temperature	-20°C to +65°C
Altitude	Up to 1000 m
