3. Instructions
CS/CJ/NSJ Series Instructions Reference Manual (W474)
SFC Instructions
3
TSR/TSW
Example Programming

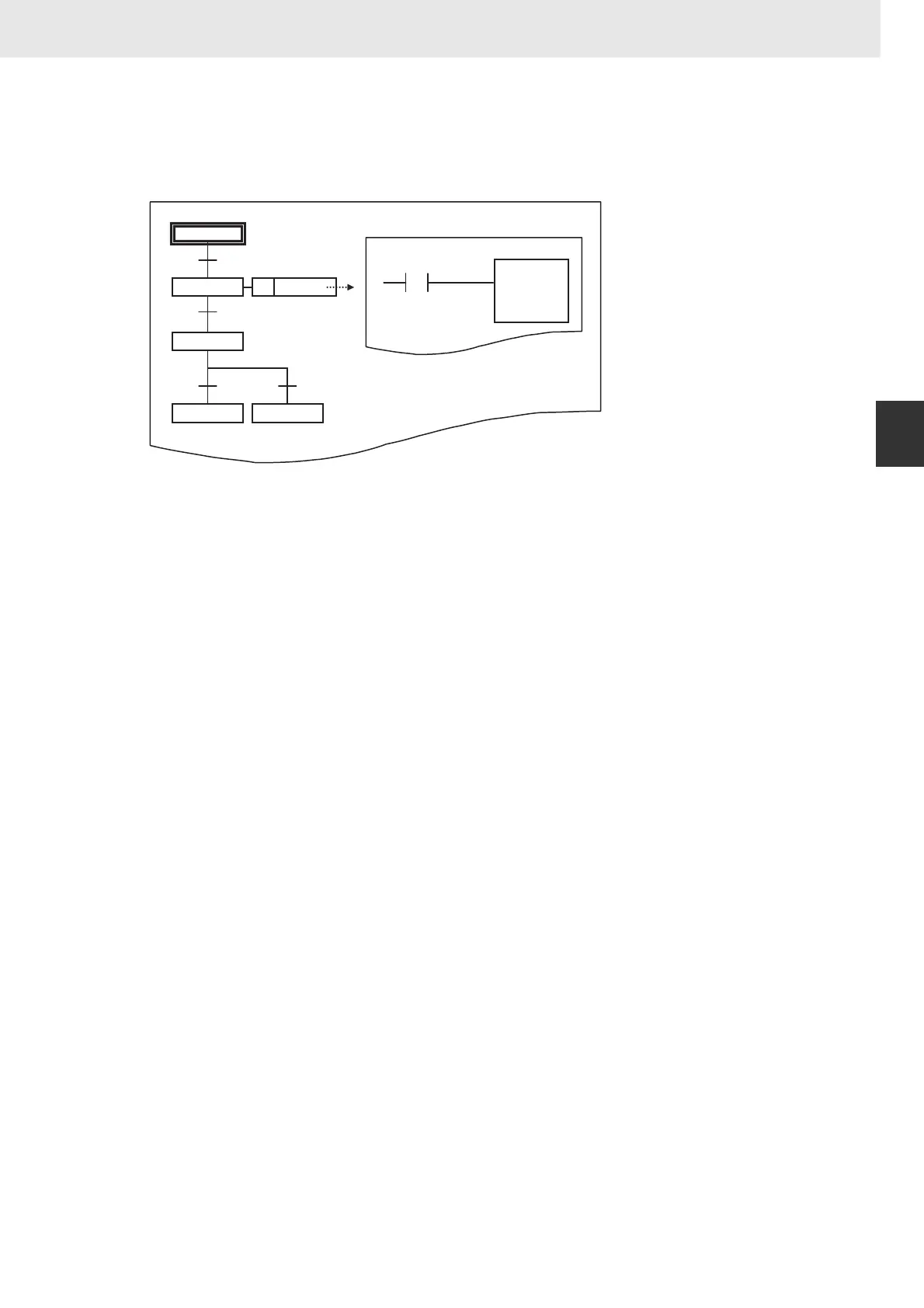

In the following example, the present value of the Step Timer for step 2 is changed to 100 when W0.0
turns ON.
Note The active step is indicated by a solid circle (●).
Precaution
• Designate Step Flags in the form step_name.X. Refer to the SYSMAC CS/CJ Series Programmable
Controllers Operation Manual SFC Programming (W469) for details.
• These instructions cannot be input or displayed on a Programming Console. “?” will be displayed.
TSW
&100
Step2.T
W0.0
N Action1
Step1
Step2
Step4 Step5
Step3
●
