3. Instructions
340
CS/CJ/NSJ Series Instructions Reference Manual (W474)

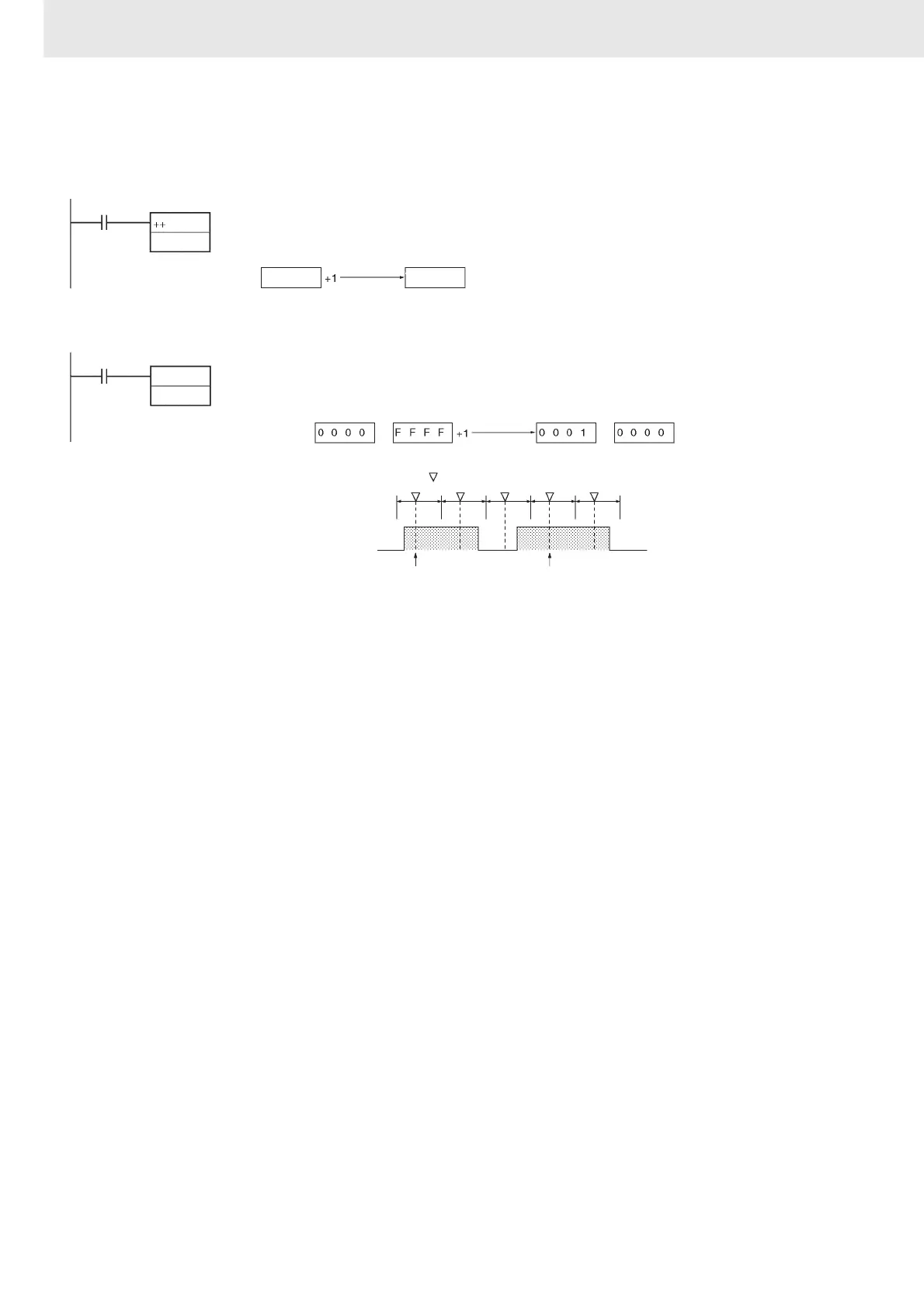

z Operation of @++(590)/@++L(591)
The up-differentiated variation is used in the following example, so the content of D100 will be
incremented by 1 only when CIO 0.00 has gone from OFF to ON.
The up-differentiated variation is used in the following example, so the content of D101 and D100 will be
incremented by 1 only when CIO 0.00 has gone from OFF to ON.
D100 D100
0 0 1 9
0.00
D100
Wd:
0 0 1 A
Incremented every cycle
while CIO 0.00 is ON.
Wd:
D101 D100 D101 D100
@++L
0.00
0.00
D100
Wd+1: Wd: Wd+1: Wd:
Increment Increment
Incremented only for
up-differentiation.
: Execution of @++(590) or @++L(591)
