29
Wiring Section 3-2
9. Do not connect a line driver output device to a 24-V DC input. Doing so will
not damage the internal circuits, but the input will not be recognized.

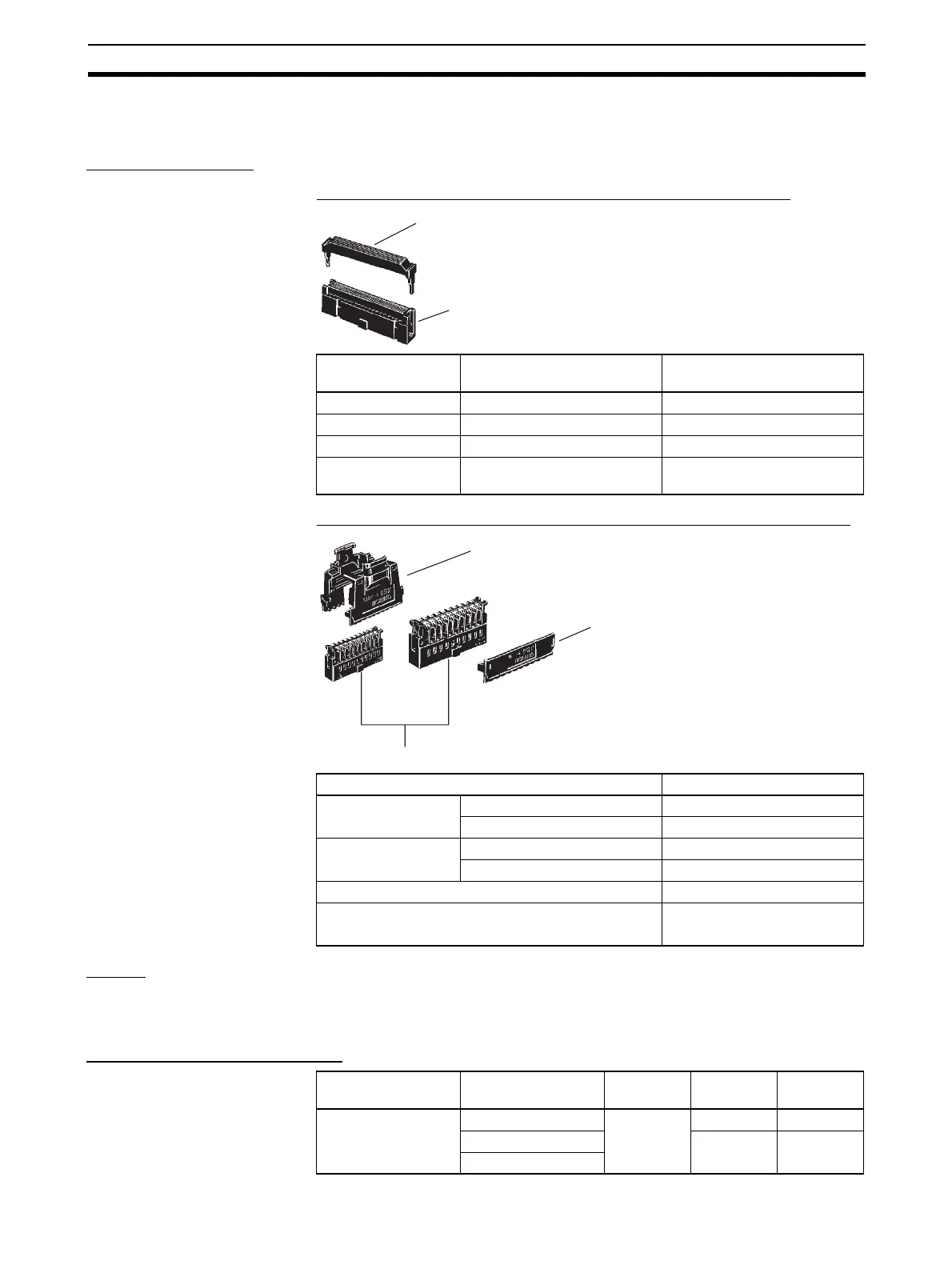

Connector Models
Compatible Connector
Specifications
MIL Flat Cable Connectors (40-pin Pressure-fitted Connectors)
MIL Loose Wire Crimp Connectors (40-pin Pressure-fitted Connectors)
Wiring
We recommend using a cable with wires sized between 28 and 24 AWG (0.2
to 0.08 mm
2
). Use a wire with an outer diameter of 1.61 mm max.
Compatible Terminal Blocks
Name OMRON model number Daiichi Electronics model
number
Socket XG4M-4030 FRC5-AO40-3TON
Stain Relief XG4M-4004 ---
Set model number XG4M-4030-T FRC5-AO40-3TOS
Recommended Flat
Cable
XY3A-200@ ---
Name OMRON model number
Socket AWG24 XG5M-4032-N
AWG26 to AWG28 XG5M-4035-N
Connector AWG24 XG5W-0031-N
AWG26 to AWG28 XG5W-0034-N
Hood Cover XG5S-4022
Partial Cover
(2 required for each socket)
XG5S-2001
Socket
Stain relief
Hood Cover
Partial Cover
Socket
Recommended
Cable
Compatible Termi-
nal Block
Number of
pins
Size Tempera-
ture (°C)
XW2Z-@@@K XW2D-40G6 40 Small 0 to 55
XW2B-40G5 Standard −25 to 80
XW2B-40G4
To Next Page
