37

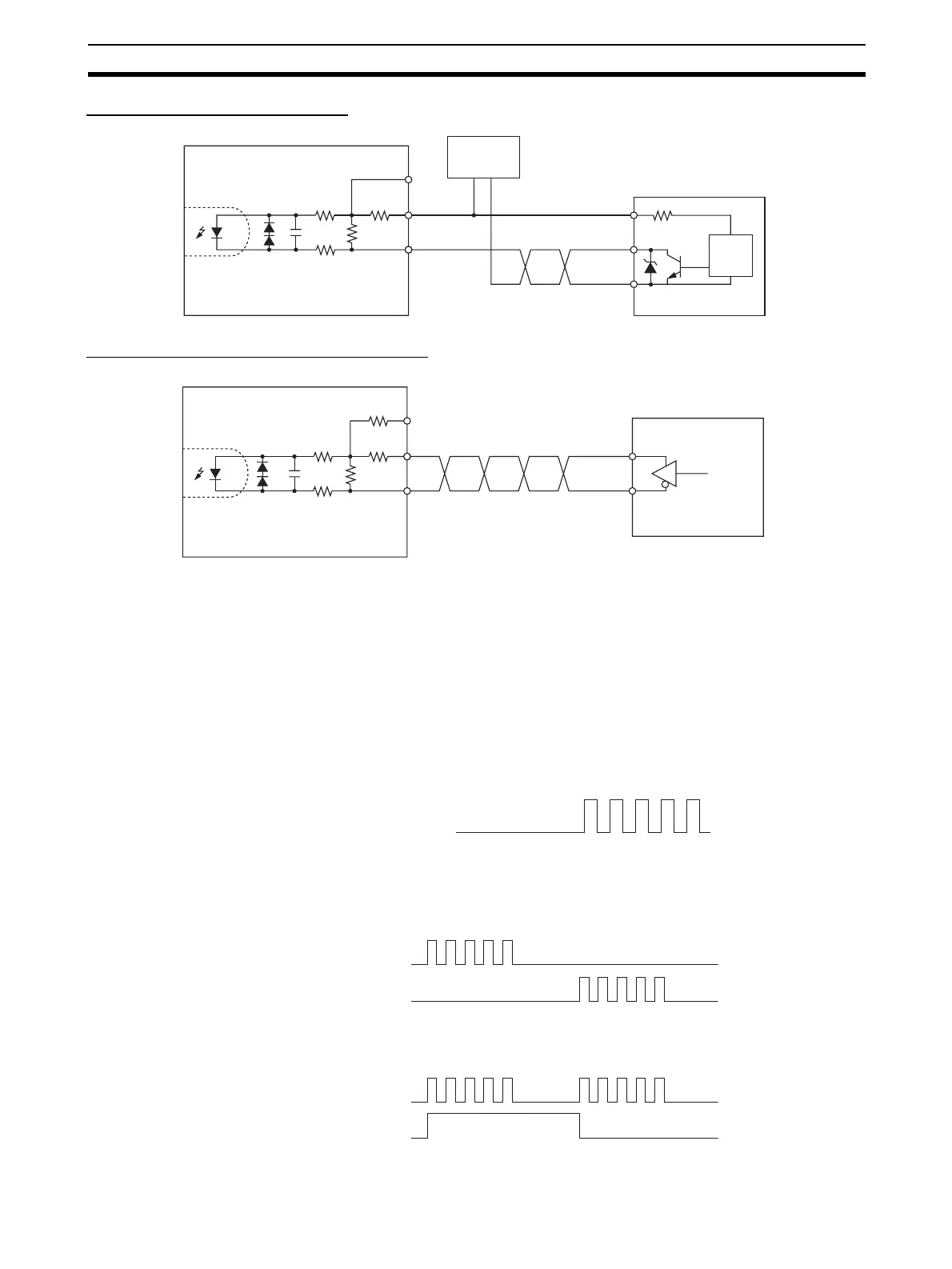

Wiring Examples Section 3-3
Origin Input Signal (24 V DC)
Origin Input Signal (Line Driver Input)
3-3-4 Pulse Output Connection Examples
This section provides examples of connections to motor drivers. Refer to the
specifications for the motor driver being used before actually connecting a
motor driver. With open-collector outputs, the wire length between the CJ1M
CPU Unit and motor driver must not exceed 3 m.
When the pulse output's output transistor is OFF, pulses are not being output.
When the direction output is OFF, it indicates a CCW output.
Do not share the pulse output's power supply (24 V DC or 5 V DC) with any
other I/O applications.
3.6 kΩ
1/7
5/11
+
−
+V
0 V
CJ1M CPU Unit
24-V DC
power
supply
Example: OMRON
E2R-A01
Proximity Sensor
(NPN output)
Signal
Switch
circuit
3.6 kΩ
3/9
5/11
19
+Z
20
−Z
CJ1M CPU Unit
Example: OMRON R88D-WT
Servomotor Driver
ON
OFF
CW CCW
CW CCW
CW
CCW
Output transistor
Pulses being output
CW/CCW Pulse Output
Pulse + Direction Output
Output ON
Output OFF
Pulse
Direction
