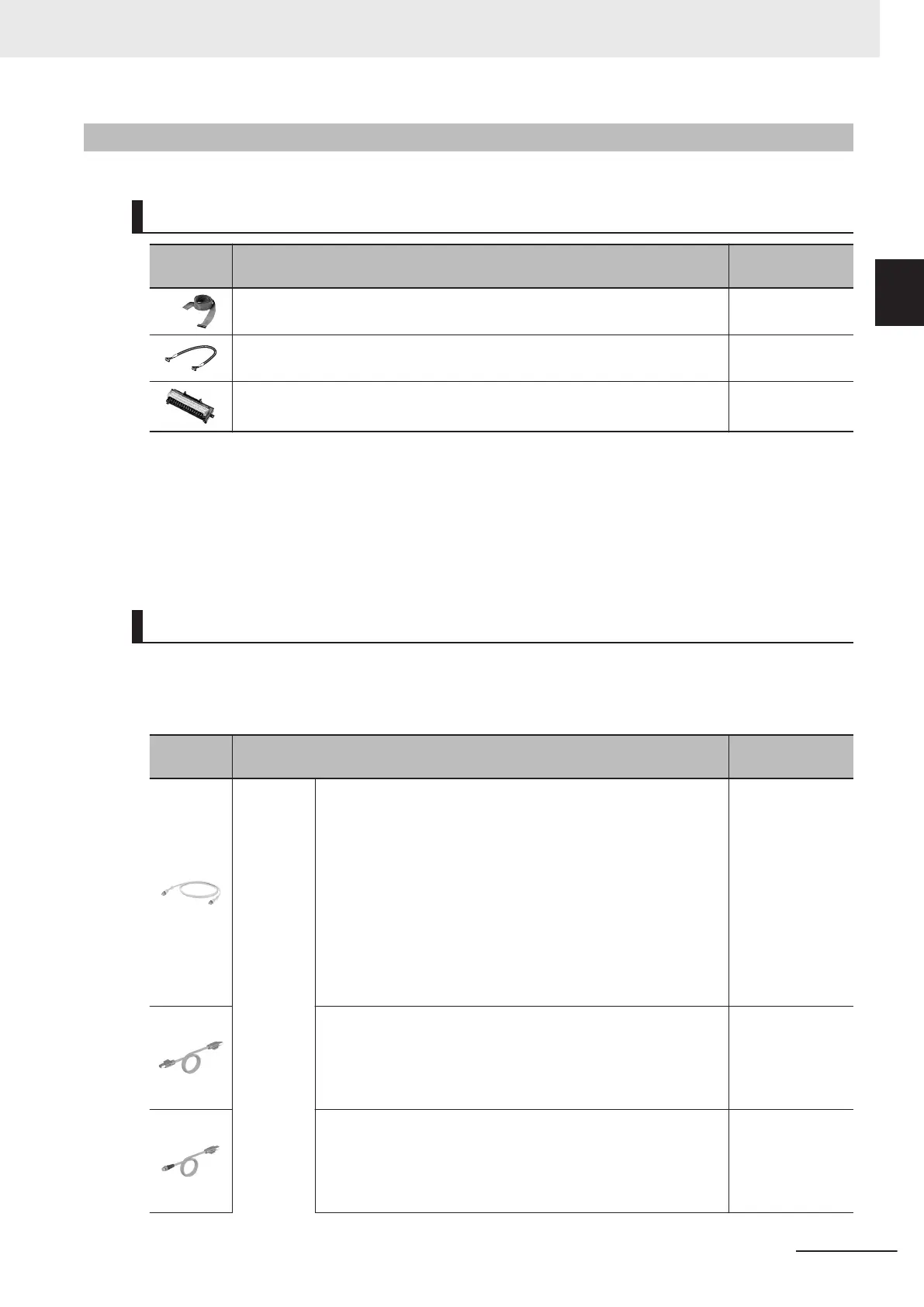

1-5-4
Cable
Parallel I/O Cables
Appear-
ance
Description Model
Parallel I/O Cable
*1
Cable length: 2 m, 5 m or 15 m
XW2Z-S013-£
*2
Parallel I/O Cable for Connector-terminal Conversion Unit
*1
Cable length: 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m
XW2Z-£££EE
*3
Connector-Terminal Block Conversion Units, General-purpose devices
XW2R-£34GD-T
*4
*1. 2 Cables are required for all I/O signals.
*2.
Insert the cables length into £ in the model number as follows. 2 m = 2, 5 m = 5, 15 m = 15
*3.
Insert the cables length into £££ in the model number as follows. 0.5 m = 050, 1 m = 100, 1.5 m = 150, 2
m = 200, 3 m = 300, 5 m = 500
*4.
Insert the wiring method into £ in the model number as follows. Phillips screw = J, Slotted screw (rise up) =
E, Push-in spring = P
Refer to the XW2R Series catalog (Cat. No. G077) for details.
Recommended EtherCAT and EtherNet/IP Communications Cables
Use Straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding
and aluminum foil tape) for EtherCA
T.
Use Straight or cross STP (shielded twisted-pair) cable of category 5 or higher for EtherNet/IP.
Appear-
ance
Description Model
For Ether-
CA
T
Cable with Standard type Connectors on Both Ends (RJ45/
RJ45)
• Wire Gauge and Number of Pairs:
AWG27, 4-pair Cable
• Cable Sheath material:
LSZH
*1
• Cable color:
Blue, Yellow, or Green
• Cables length:
0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m, 7.5 m, 10 m,
15 m, 20 m
XS6W-6LSZH8S
S£CM-Y
Cable with Rugged type Connectors on Both Ends (RJ45/RJ45)
• Wire Gauge and Number of Pairs:
A
WG22, 2-pair Cable
• Cables length:
0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m
XS5W-T421-
£MD-K
Cable with Rugged type Connectors on Both Ends (M12/RJ45)
• Wire Gauge and Number of Pairs:
A
WG22, 2-pair Cable
• Cables length:
0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m
XS5W-T421-
£MC-K
1 Confirm the Package
1-9
FH Series Vision System Hardware Setup Manual for 3D Robot Vision (Z436-E1)
1-5 Sold Separately
1
1-5-4 Cable
To Next Page
