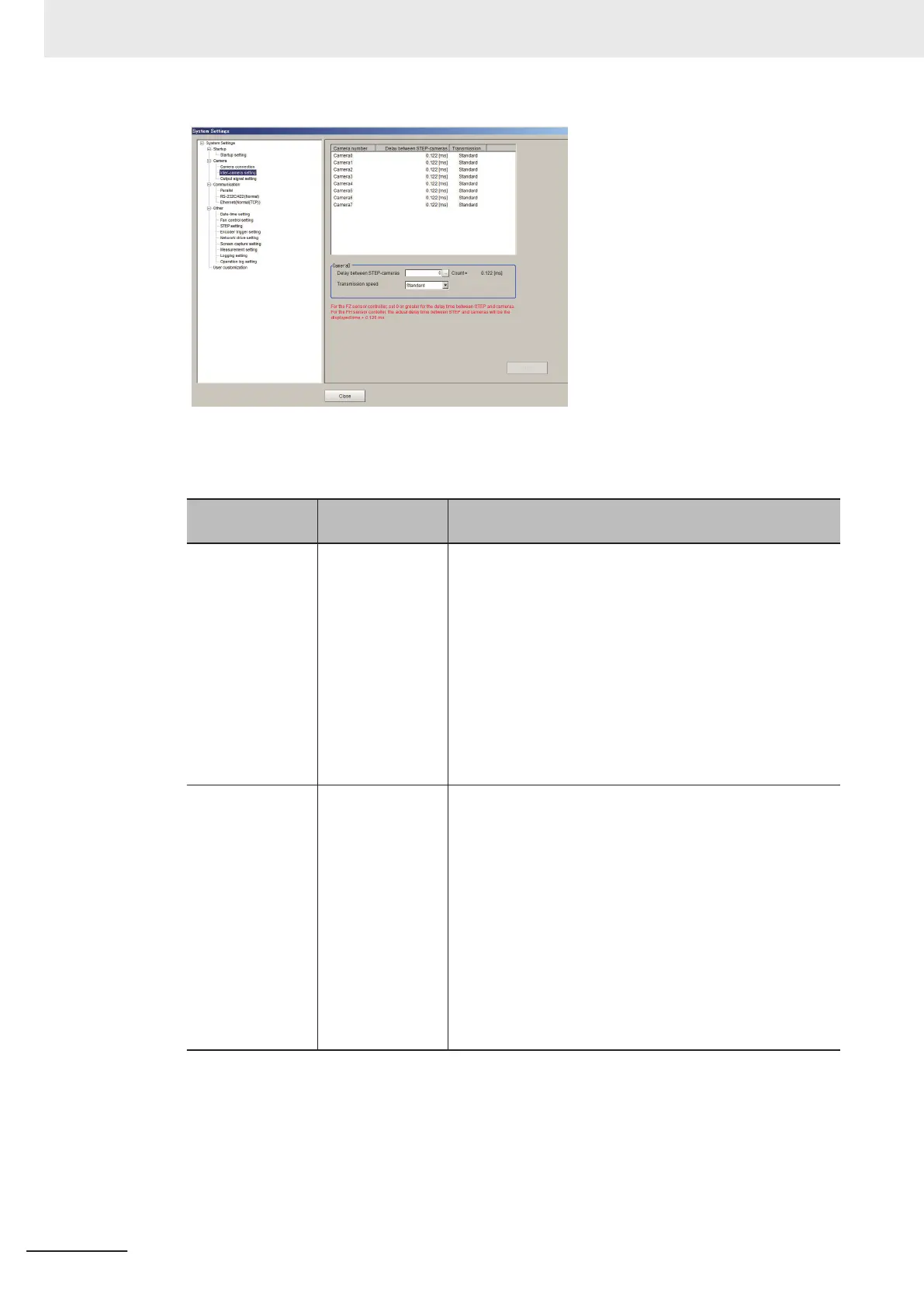

2 Click a camera number to set the delay between STEP-cameras and then specify the delay
count value.
Item
Set value
[Factory default]
Description
Delay between
STEP-cameras
• -4 to 511
[0]
(1 count is 30
μs)
Sets the delay time from when the STEP signal is received to
when exposure begins for the selected Camera.
• Delay time of FH series Sensor Controller: When using
cameras other than FH-S£05R, the time displayed for
STEP-camera delay time is (STEP-camera delay counts ×
30 μs + 122 μs) + 120 μs.
When using the FH-S£05R camera, the time displayed for
STEP-camera delay time is (STEP-camera delay counts ×
30 μs + 122 μs) + 470 μs.
When using the FH-S£21R camera, the time displayed for
STEP-camera delay time is (STEP-camera delay counts ×
30 μs + 122 μs) + 1123 μs.
Transmission
speed
• [Standard]
• High speed
When you connect a camera that supports High speed mode
using a camera cable shorter than 5m, image input time can
be shortened by selecting High speed for frame rate.
For details about frame rate values, refer to the Instruction
manual for the Camera.
The following cameras support High speed:
• FH-SC02/FH-SM02
• FH-SC04/FH-SM04
• FH-SC12/FH-SM12
• FH-SCX/FH-SMX
• FH-SCX05/FH-SMX05
• FH-SCX12/FH-SMX12
• FH-SC21R/FH-SM21R
4 Setting the Controller
4 - 40
FH/FHV Series Vision System User’s Manual (Z365-E1)
