10. Appendix 2 Setting the Tag Data Links Using the Software
10. Appendix 2 Setting the Tag Data Links Using the
Software
This section describes the procedure for setting the Controller using the software without
using the configuration files (procedure for setting the parameters from the beginning).
You can refer to this section when you want to change the parameters of the configuration
files.
Personal computer
53
Global variable
(CSV file)
Destination
device
Controller
10.1. Overview of Tag Data Links Settings Using the Software

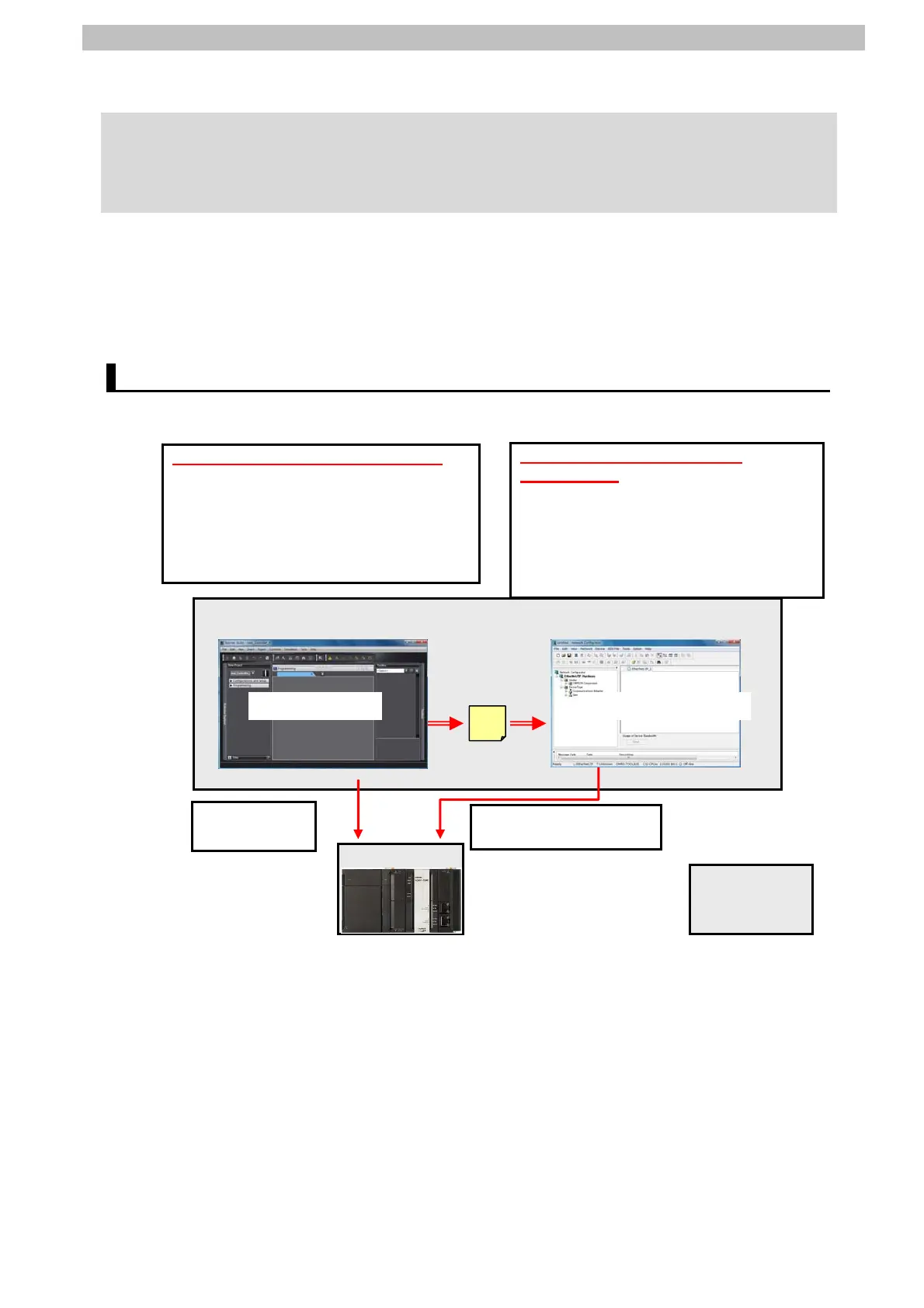

The following is the relationship of the processes to operate the tag data links using the
"procedure for setting parameters from the beginning".
Settings made with Sysmac Studio
•Setting parameters (IP address, etc.)
•Setting global variables (name,
network setting and task setting, etc.)
•Exporting global variables
•Building
•Settings in the Watch Tab Page
Transferring
project data
Transferring tag data
link parameters
Network Configurator Sysmac Studio
Settings made with Network
Configurator
•Uploading network configuration
•Importing CSV file (tag name)
•Tag registration
•Connection setting (associating tags
with the EDS file of destination
device)
