3-6 Using Memory Cards

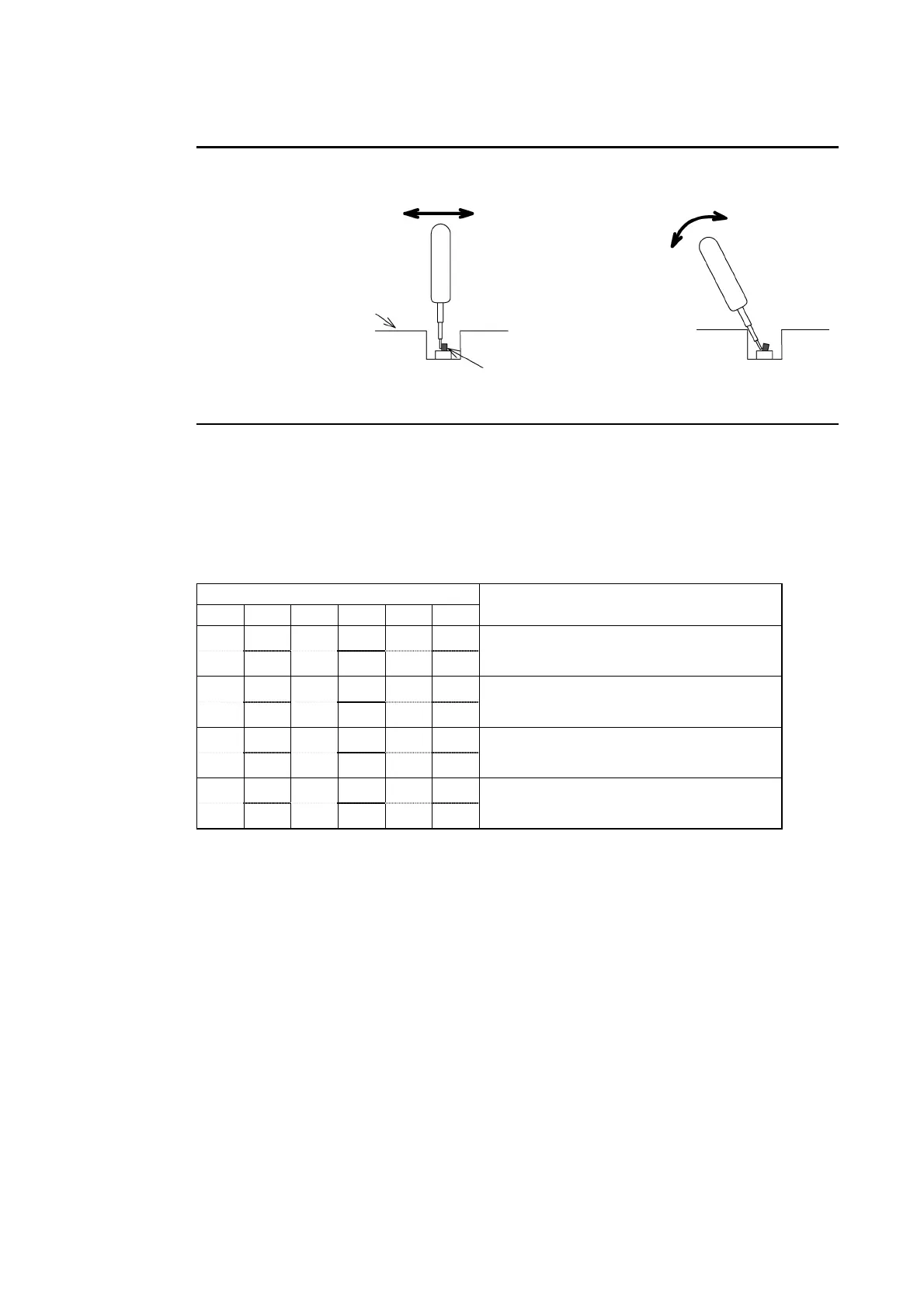

Note Use the following technique when changing DIP-switch settings.
Correct technique
Incorrect technique
Back of the PT’s case
DIP switch
The DIP switch may bend or break if the tool is incorrectly levered against the PT’s case as
shown in the diagram.
● Automatic Download
An automatic download transfers system programs and screen data from the Memory Card
to the PT.
Set the DIP switch for automatic download, as shown below.
The Memory Card cannot be used to transfer data when the DIP switch pins are set to com-
binations other than those specified here.
DIP switch pin and status
1 2 3 4 5 6
Operation
ON
OFF OFF OFF OFF OFF
Automatically downloads bank 1 system pro-
grams and screen data.
ON
OFF OFF OFF OFF OFF
Automatically downloads bank 2 system pro-
grams and screen data.
ON
OFF OFF OFF OFF OFF
Automatically downloads bank 3 system pro-
grams and screen data.
ON
OFF OFF OFF OFF OFF
Automatically downloads bank 4 system pro-
grams and screen data.
Use the following procedure to automatically download data.
1. Turn OFF the power to the PT.
2. Set the DIP switch.
3. Insert the Memory Card with the specified banks stored in it into the PT.
4. Turn ON the power to the PT.
The system programs and screen data will be written to the PT.
5. The status of the PT indicators during data transfer is as shown below.
Do not remove the Memory Card during data transfer.
Transferring data: Indicator flashes orange.
Transferring completed: Indicator flashes green.
Error occurred: Indicator flashes red.
Refer to page 3-25 if an error occurs.
6. Turn OFF the power.
7. Remove the Memory Card.
