4 - 51
4 System Design
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications
4-5 Regenerative Energy Absorption
4
4-5-4 Connecting an External Regeneration Resistor
This section describes how to connect an External Regeneration Resistor.
Check your Servo Drive model before connecting an External Regeneration Resistor because the
connection method varies depending on the Servo Drive.
Normally B2 and B3 are open.

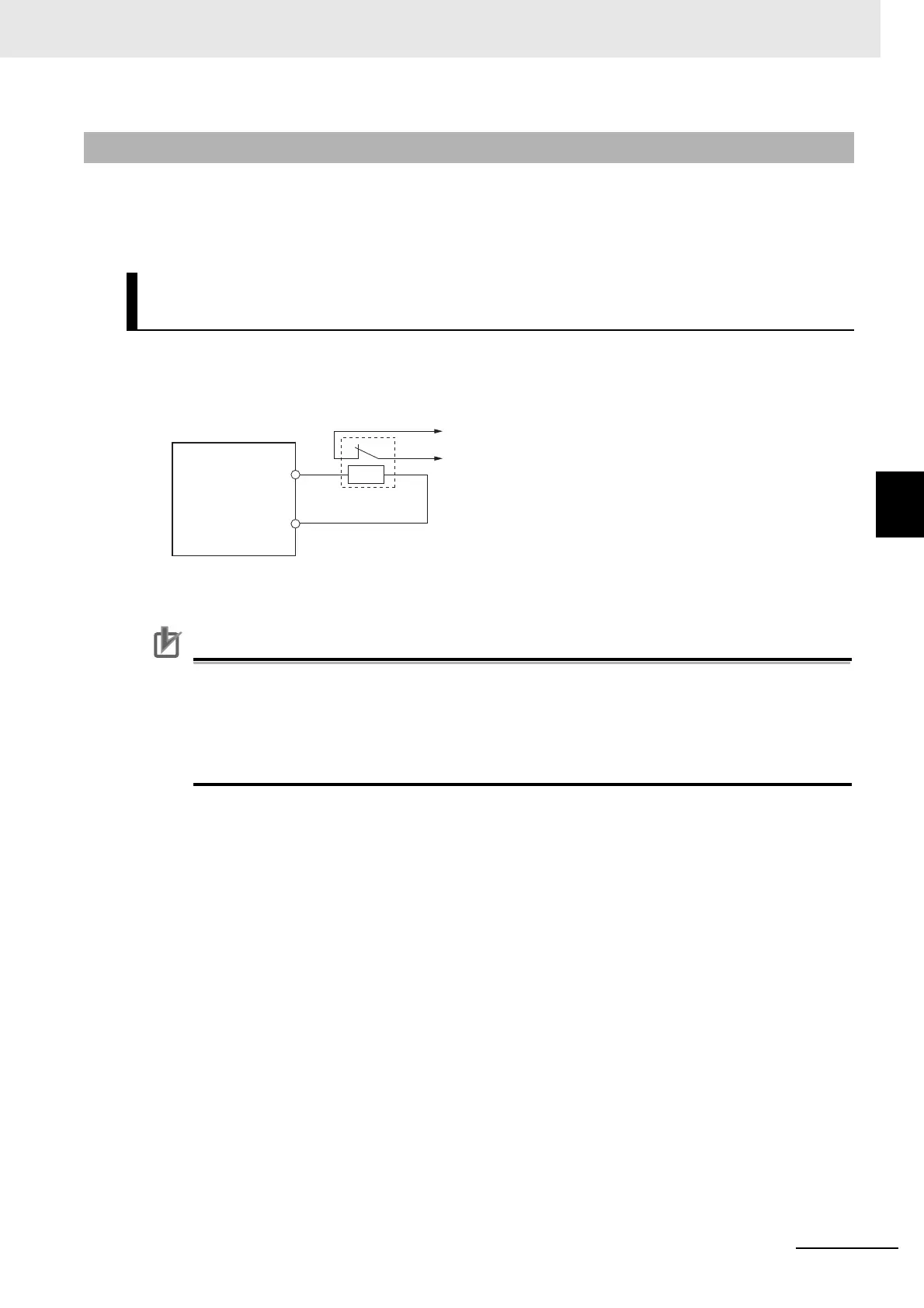

If an External Regeneration Resistor is necessary, connect the External Regeneration Resistor
between B1 and B2 as shown in the diagram below.
Precautions for Correct UsePrecautions for Correct Use
Connect the thermal switch output so that the main circuit power supply is shut OFF when the
contacts open.
When using multiple External Regeneration Resistors, connect each thermal switch in series.
The resistor may be damaged by burning, or cause fire if it is used without setting up a power
supply shutoff sequence using the output from the thermal switch.
4-5-4 Connecting an External Regeneration Resistor
R88D-KN01L-ECT-L/-KN02L-ECT-L/-KN01H-ECT-L/
-KN02H-ECT-L/-KN04H-ECT-L
B2
θ>
B1
Thermal Switch Output
External Regeneration
Resistor
Servo Drive
