11-5 Damping Control
11
11-5-3 Operating Procedure
1
Adjust the Position Loop Gain 1 (3100 hex), Speed Loop Gain 1 (3101 hex), Speed Loop
Integral Time Constant 1 (3102 hex), and Force Command Filter Time Constant 1
(3104 hex) settings.
If no problem occurs in realtime autotuning, you can continue to use the settings.
2
Measure the damping frequency at the tip of the mechanical unit.
Measure the damping frequency by using a measurement device such as a laser displacement
sensor, servo acceleration meter, or acceleration pick-up.
Set the measured damping frequency in one of Damping Frequency 1 to Damping Frequency 4
according to the operation.
Also set the Switching Mode using Damping Filter Selection (3213 hex).
If the measurement device cannot be used, use CX-Drive tracing function, and read the residual
damping frequency [Hz] from the Following Error Actual Value waveform as shown in the
following figure.
If vibration persists after setting the frequency, increase or decrease the resonance frequency to
find a proper one with minimum vibration.
3
Make the damping filter 1 to 4 settings.
First, set the filter to 0 and check the force waveform during operation.
The stabilization time can be reduced by setting a large value; however, force ripple will increase
at the command change point as shown in the following figure. Set a range that will not cause
force saturation under actual operation conditions. The effects of vibration suppression will be
lost if force saturation occurs.
When a Damping Frequency is set, reduce this setting if force saturation occurs or increase this
setting to increase operation speed. Normally 0 is set.
The setting range is as follows:

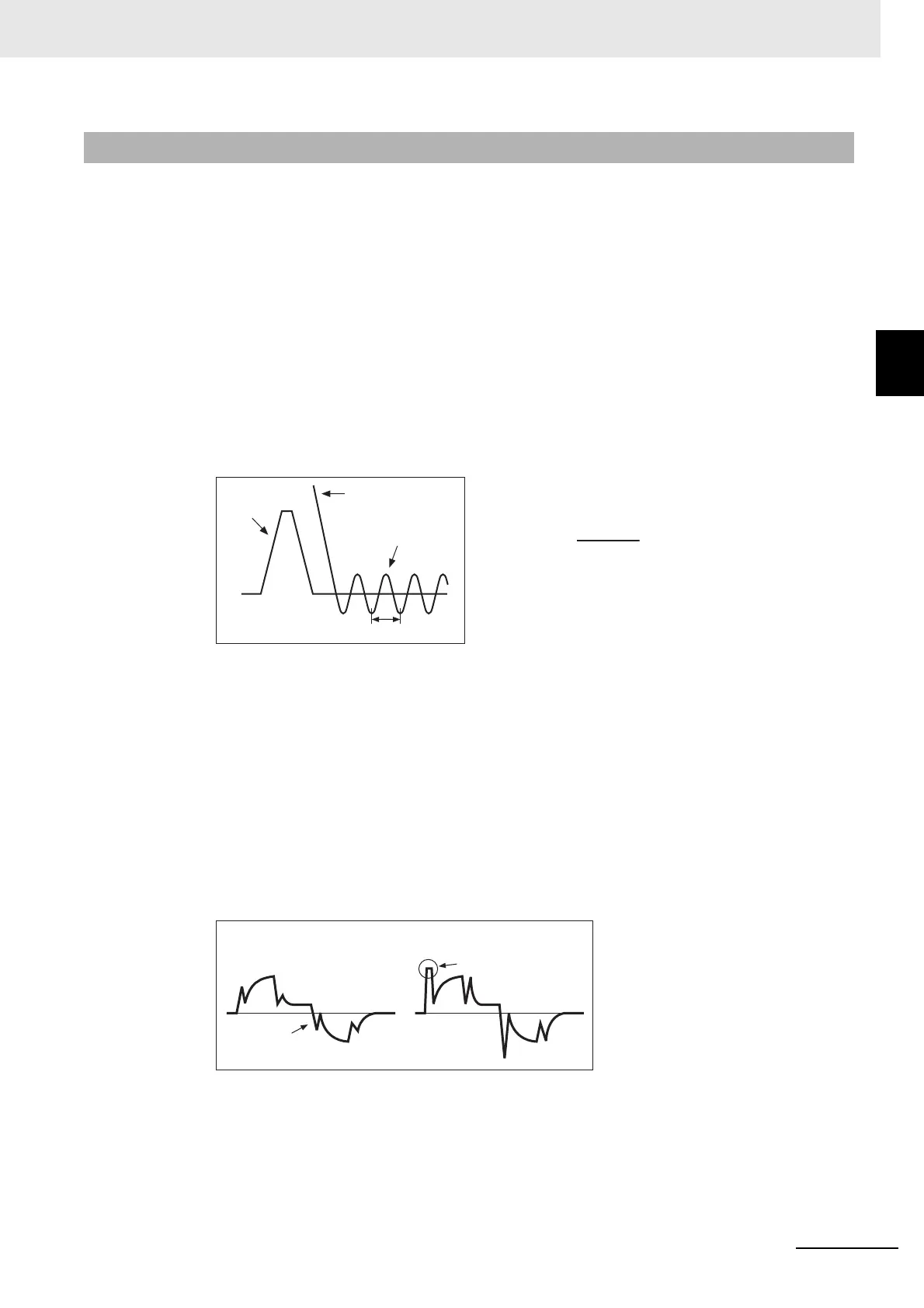

11-5-3 Operating Procedure
Command
speed
Following error
actual value
Calculate the
damping frequency.
Damping cycle T
• The damping frequency in the figure is calculated
with the following formula:
Since the object unit is 0.1 Hz:
(3214 hex, 3216 hex, 3218 hex, 3220 hex)
= 10 × f
• Application example
If the damping cycle is 100 ms or 20 ms, set 100 or
500 in the object so that the damping frequency
becomes 10 Hz or 50 Hz.
Force
command
Force saturation
Damping filter setting is
too large.
Damping filter setting is
appropriate.
Damping filter setting range: Damping filter setting ≤ Damping frequency
100 ≤ (Damping frequency + Damping filter setting)
