Omron SMARTSTEP A Series User Manual

Chapter 2
2-114
Standard Models and Specifications

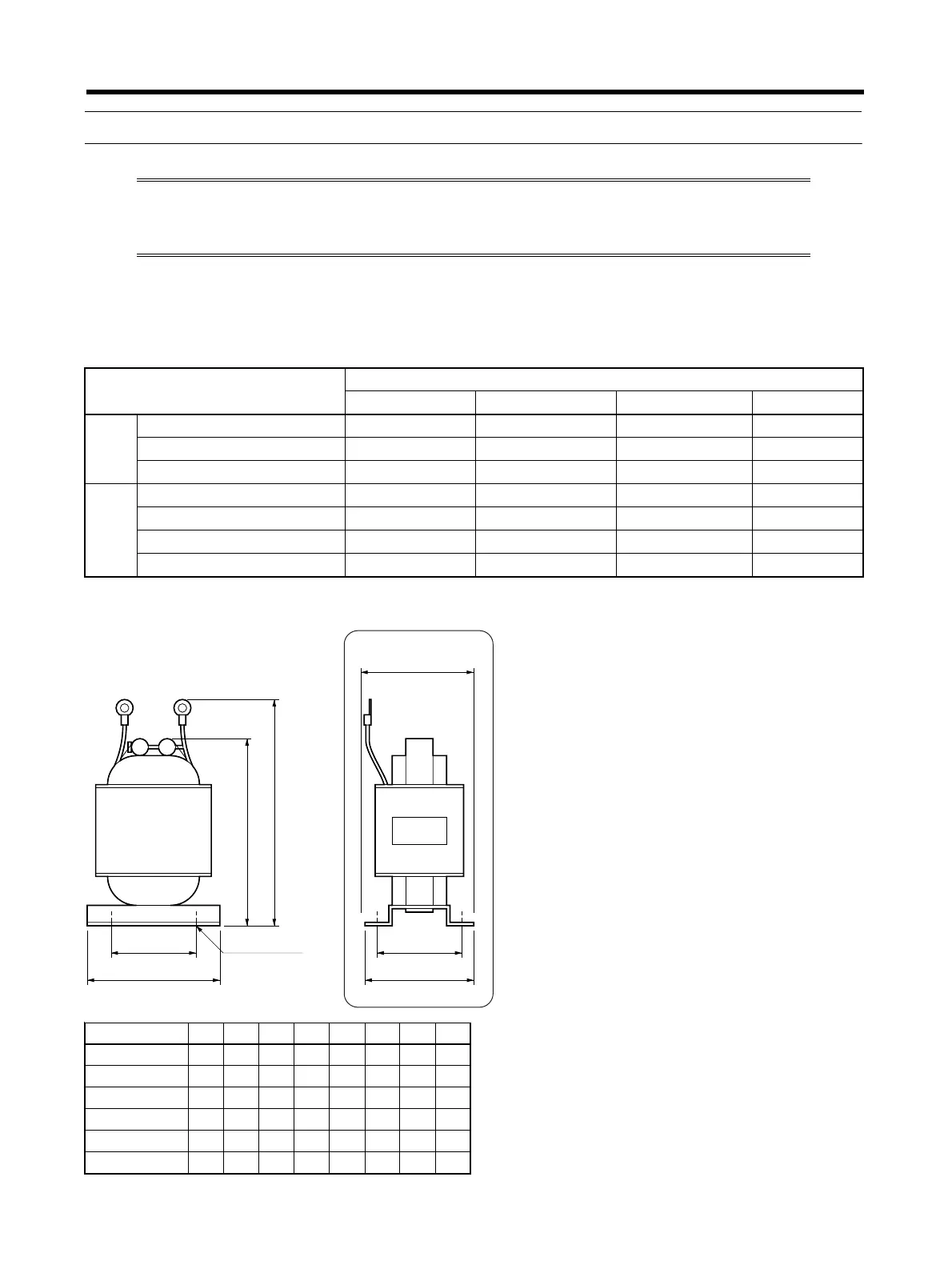

2-10 DC Reactors
Connect a DC Reactor to the Servo Driver’s DC Reactor connection terminal as a
harmonic current control measure. Select a model to match the Servo Driver being
used.
■ R88A-PX@ DC Reactors
■ Specifications
■ External Dimensions
Servo Driver model DC Reactor
Model Rated current (A) Inductance (mH) Weight (kg)
100 V R7D-APA3L/APA5L/AP01L R88A-PX5063 1.8 10.0 Approx. 0.6
R7D-AP02L R88A-PX5062 3.5 4.7 Approx. 0.9
R7D-AP04L R88A-PX5061 4.8 2.0 Approx. 0.5
200 V R7D-APA3H/APA5H/AP01H R88A-PX5071 0.85 40.0 Approx. 0.5
R7D-AP02H R88A-PX5070 1.65 20.0 Approx. 0.8
R7D-AP04H R88A-PX5069 3.3 10.0 Approx. 1.0
R7D-AP08H R88A-PX5061 4.8 2.0 Approx. 0.5
Model A B C D E F G H
R88A-PX5061355280953545504
R88A-PX5062 40 59 100 120 40 50 55 4
R88A-PX5063 35 52 90 105 35 45 50 4
R88A-PX5069 40 59 105 125 45 60 65 4
R88A-PX5070 40 59 100 120 35 45 50 4
R88A-PX5071355280953040454
Four, H dia.
A
B
C D
E
F
G
