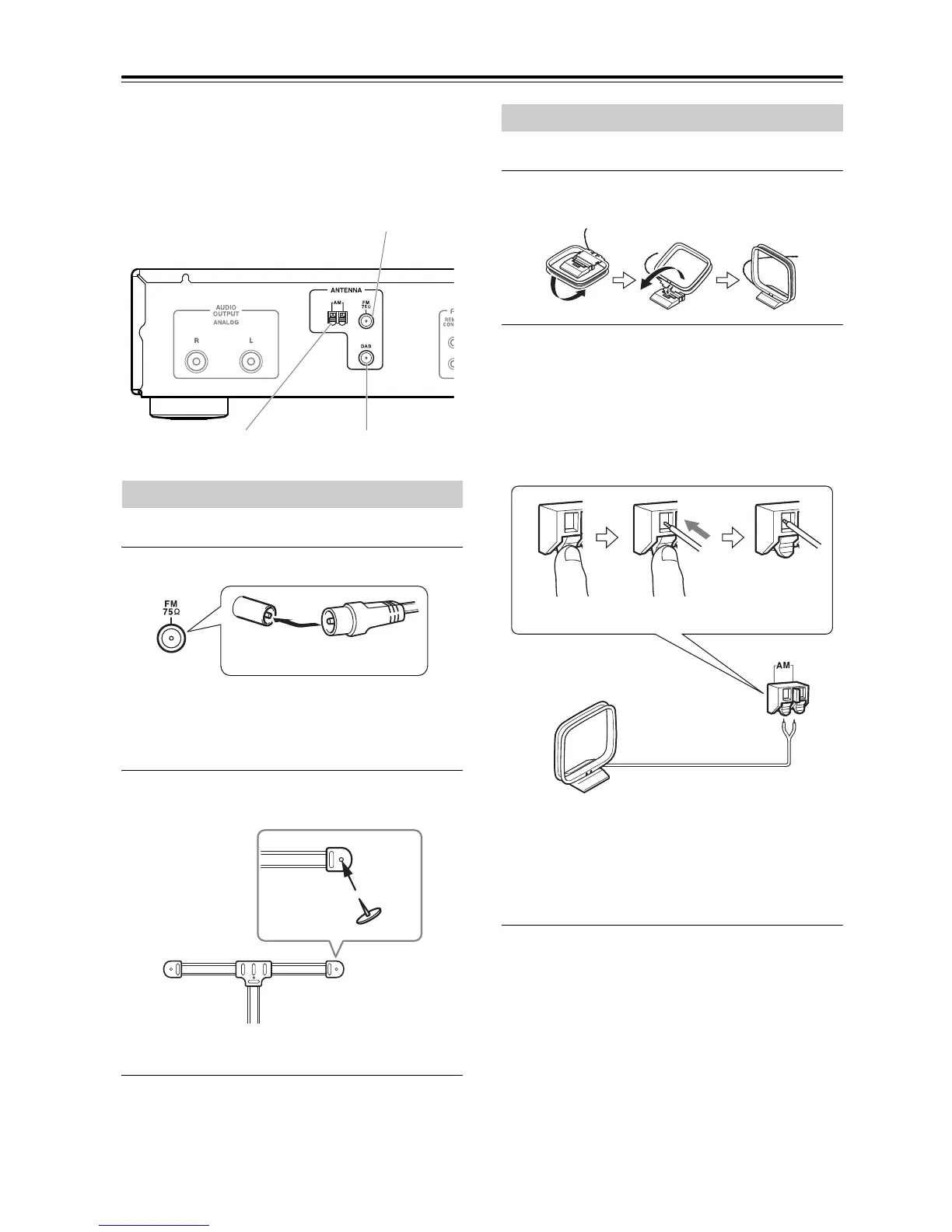

Connecting Antennas
This section explains how to connect the supplied
FM antenna, AM loop antenna, and DAB antenna.
The tuner won’t pick up any radio signals if no antenna
is connected, so you must connect the antenna to use the
tuner.
The supplied FM antenna is for indoor use only.
1
Attach the FM antenna, as shown.
Once your tuner is ready for use, you’ll need to
tune into an FM radio station and adjust the
position of the FM antenna to achieve the best
possible reception.
2
Use thumbtacks or something similar to fix
the FM antenna into position.
Caution: Be careful that you don’t injure yourself when
using thumbtacks.
If you cannot achieve good reception with the supplied
FM antenna, try using a commercially available outdoor
FM antenna instead.
The supplied AM loop antenna is for indoor use only.
1
Assemble the AM loop antenna, inserting
the tabs into the base, as shown.
2
Connect both wires of the AM loop antenna
to the AM push terminals, as shown.
(The antenna’s wires are not polarity sensitive, so
they can be connected either way around).
Make sure that the wires are attached securely and
that the push terminals are gripping the bare wires,
not the insulation.
Once the your tuner is ready for use, you’ll need to
tune into an AM radio station and adjust the
position of the AM antenna to achieve the best
possible reception.
Keep the antenna as far away as possible from your
tuner, TV, speaker cables, and power cords.
If you cannot achieve good reception with the supplied
AM loop antenna, try using it with a commercially
available outdoor AM antenna.
