Onkyo TX-RZ50 User Manual

7.1.2ch
7.1ch
5.1. 2ch
5.1.4ch
7.1.4ch
5.1c h
51

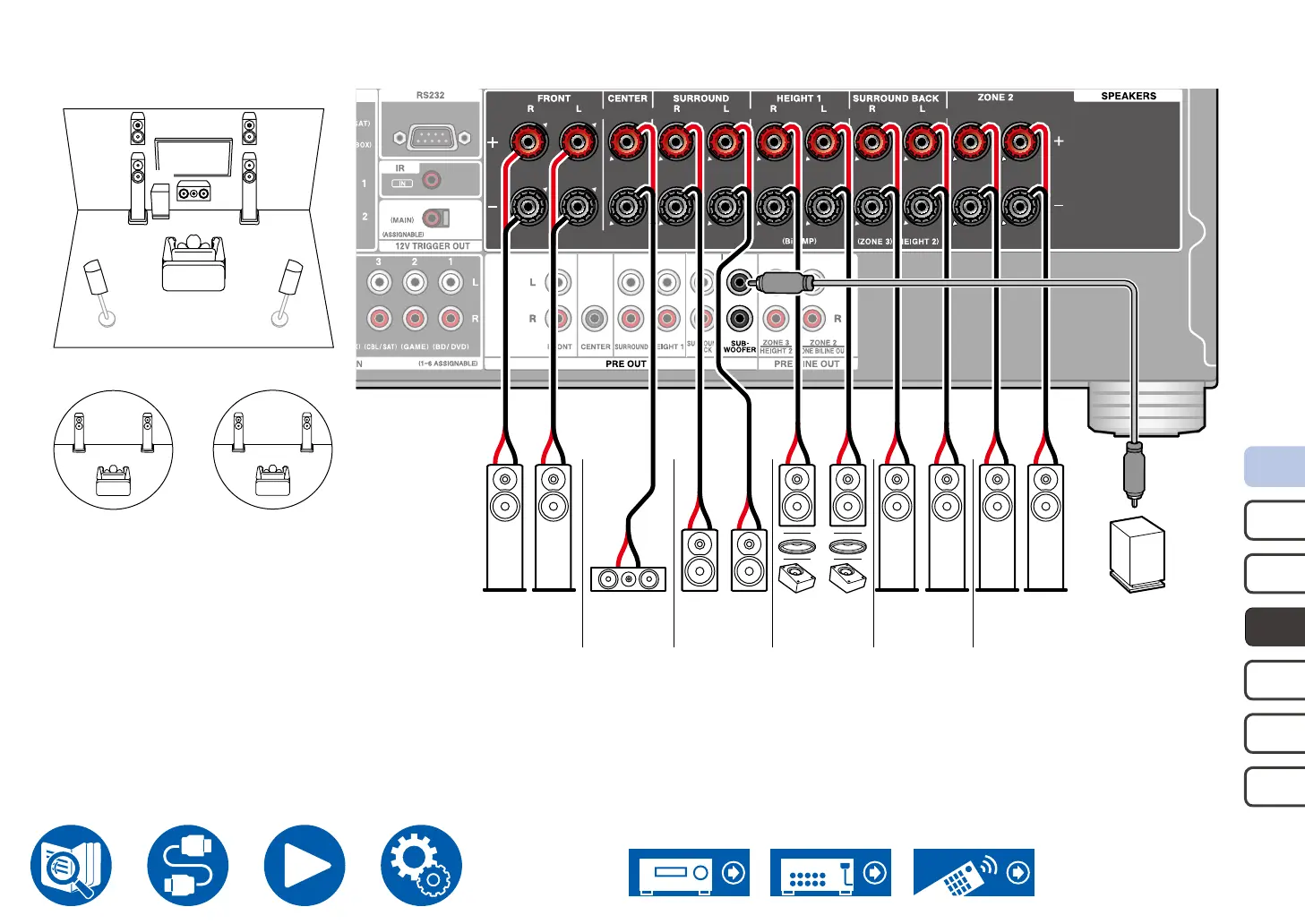

Speaker Connections
 5.1.2 Channel System + ZONE 2/ZONE 3 SPEAKER (North American models only)
FL FR
SL SR
C
SW
HL HR
FR FL
(
Z3
) (
Z3
)
FR
(
Z2
) (
Z2
)
FLHR HL
C
SR SLFR FL SR
SW
ZONE 2
FL(Z2)FR(Z2)
MAIN ROOM
• While ZONE 2/ZONE 3 layback is being performed, Height 1 speakers installed in the main room cannot play audio.
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).
ZONE 3
FL(Z3)FR(Z3)
*1

Onkyo TX-RZ50 Specifications

General

Impedance	16 Ω
Receiver type	Surround
Frequency range	5 - 100000 Hz
Input sensitivity	200 mV
4Ω speaker support	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (20-20KHz@8 Ohm)	250 W
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	850 W
HDMI in	6
USB ports quantity	1
Digital audio optical in	2
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Wi-Fi	No
AirPlay	-
Display	LCD
Product color	Black
Audio decoders	DTS:X, Dolby Atmos
THX-certified	THX
Cables included	AC

Weight and Dimensions

Depth	201.5 mm
Width	435 mm
Height	398 mm
Weight	14000 g
