Connections

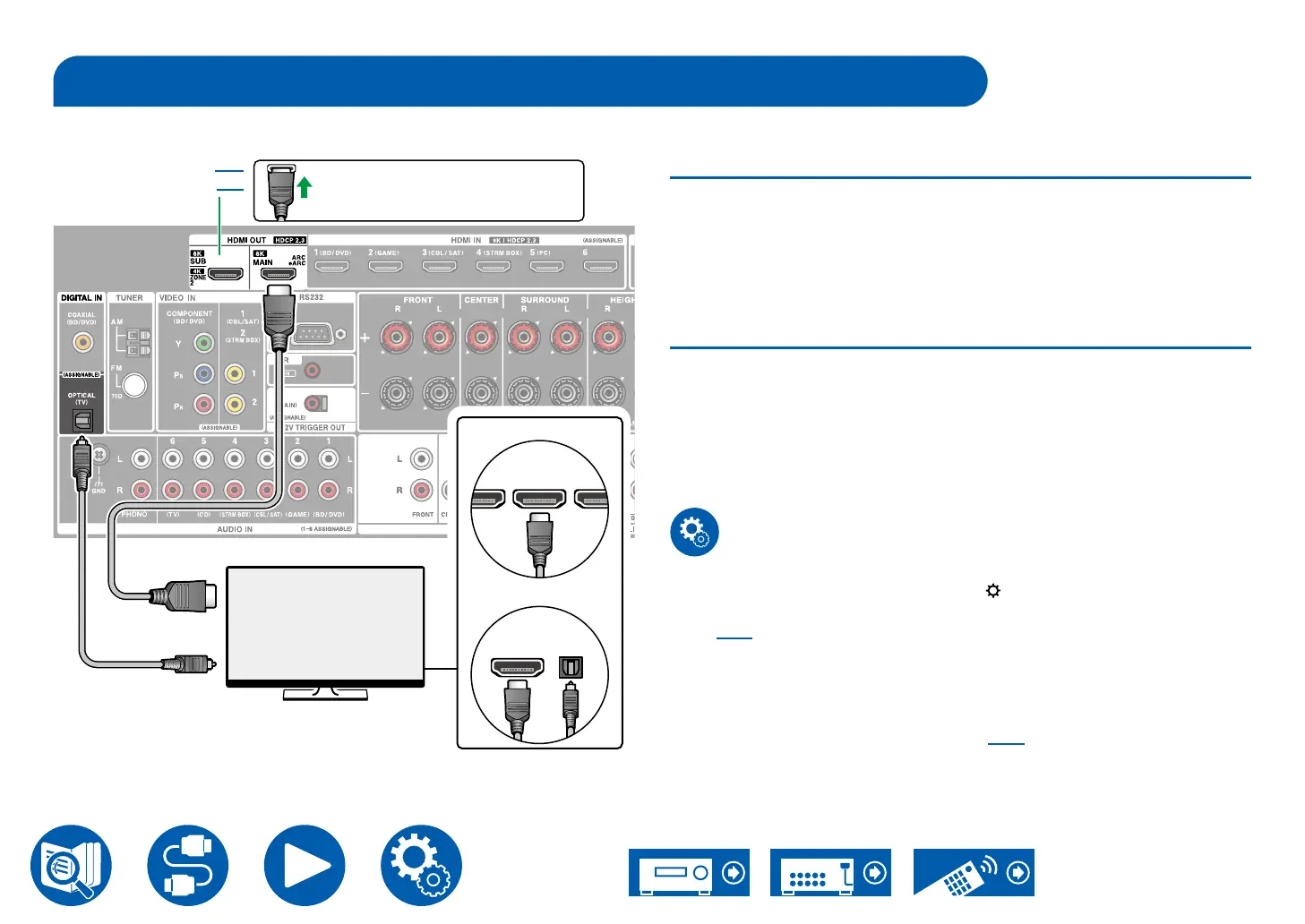

Connecting the TV
By connecting a TV to this unit, you can show the video from AV devices connected to this unit on the TV and also play the sound from the TV through this unit.
b
a
HDMI IN
DIGITAL
OPTICAL
OUT
HDMI IN
(
ARC
)
Be sure to insert the HDMI
cable all the way in.
To ARC/eARC TV
If the TV supports the ARC (Audio Return Channel) function(*), use only the
HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of
the TV for connection. You connect the HDMI cable to the HDMI OUT MAIN jack
labeled "ARC" on the receiver side.
• When a TV compatible with the eARC function is connected, use an HDMI
cable that supports Ethernet.
To Non-ARC TV
If the TV does not support the ARC (Audio Return Channel) function(*), connect
an HDMI cable and digital optical cable. If the TV does not have a DIGITAL
OPTICAL OUT jack, you can use an analog audio cable to connect with the
AUDIO IN TV jack.
• If you use a cable set-top box, etc. connected to the input jack of this unit to
watch TV (without using a TV’s built-in tuner), connection with a digital optical
cable or analog audio cable is not required.
Setup
• When not using the ARC function, press on the remote controller, then
set "5.Hardware" - "HDMI" - "Audio Return Channel (eARC supported)"
( →p144) to "Off".
(*)The ARC function and eARC function transmit the audio signals of the TV via
an HDMI cable, and plays the audio of the TV on this unit. To check if the TV
supports the ARC function and eARC function, refer to the instruction manual
of the TV, etc.
ARC/eARC compatible audio formats ( →p204)
TV
ARC TV
Non-ARC TV
SUB Monitor ( →p65)
ZONE 2 ( →p70)
a HDMI cable, b Digital optical cable
