Connections
Connecting an Audio Component

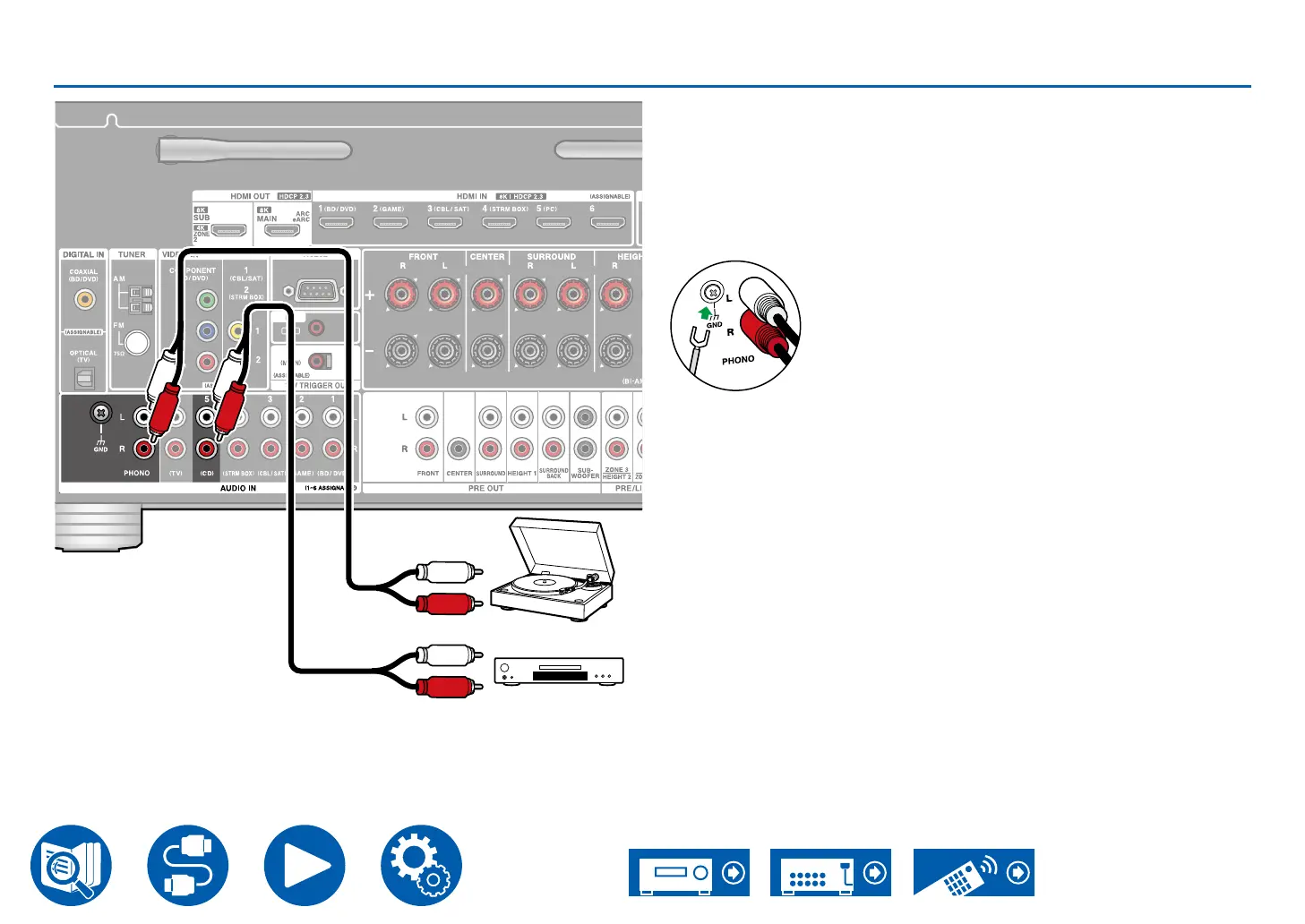

This is a connection example of an audio component. Connect a CD player
using an analog audio cable. You can also connect a turntable that has an MM-
type cartridge to the PHONO jack.
• If the turntable has a built-in phono equalizer, connect it to any of the AUDIO
IN jacks other than the PHONO jack. Further, if the turntable uses an MC type
cartridge, install a phono equalizer compatible with the MC type cartridge
between the unit and the turntable, and then connect it to any of the AUDIO
IN jacks other than the PHONO jack.
If the turntable has a ground wire, connect it to the GND terminal of this unit.
a
Turntable
CD
a Analog audio cable
