Owon TAO3000 Dual-Channel Series User Manual

6.Communication with PC
104

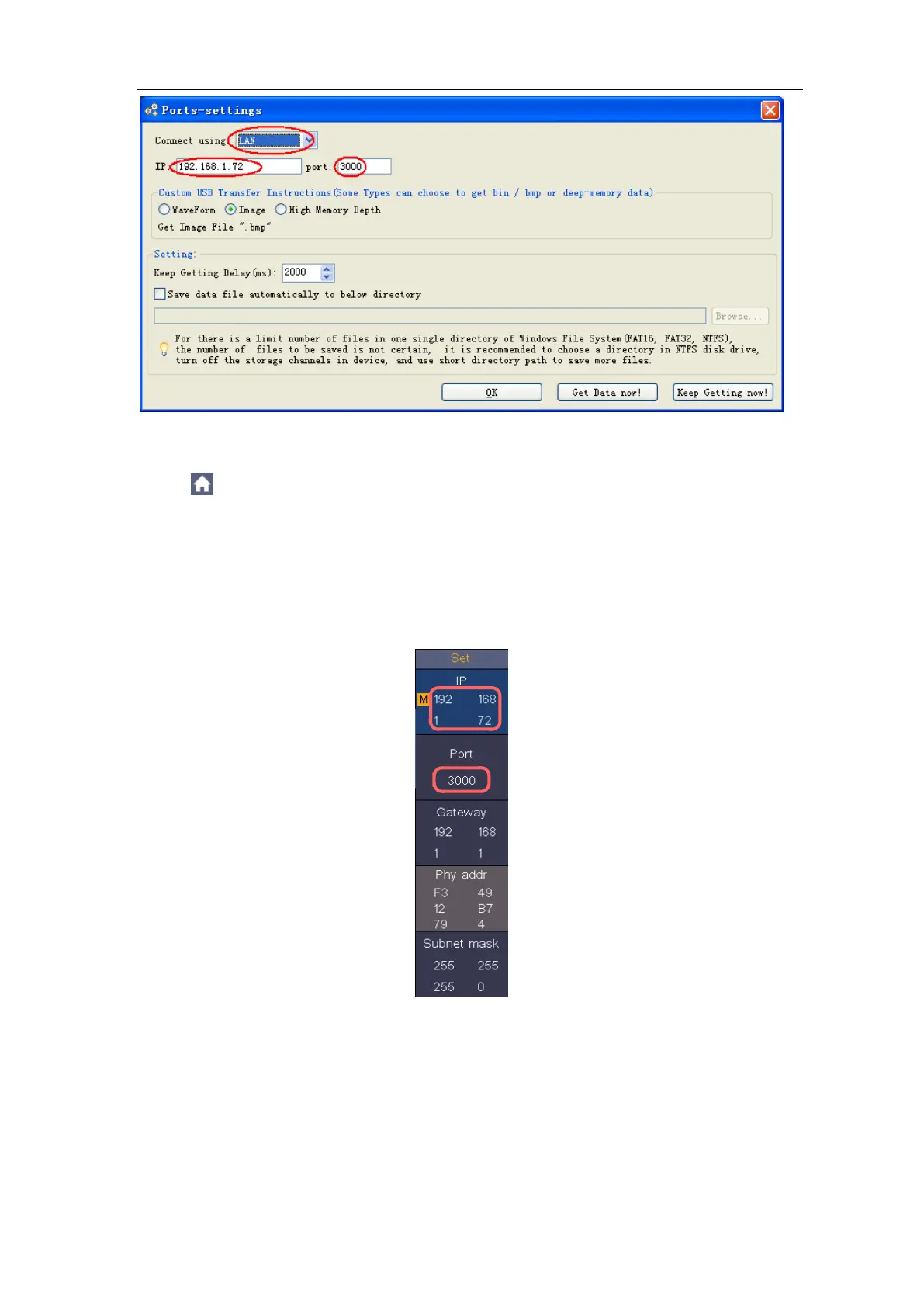

Figure 6-3 Set the network parameters of the OWON Oscilloscope Software
(4) Set the network parameters of the oscilloscope. In the oscilloscope, click
the icon, click Utility. Select Function in the bottom menu. Select LAN
Set in the left menu. In the bottom menu, set the Type item as LAN, and select
Set. In the right menu, set IP and Port to the same value as the
"Ports-settings" in the software in step (3). Select Save set in the bottom menu,
it prompts "Reset to update the config". After resetting the oscilloscope, if you
can get data normally in the oscilloscope software, the connection is
successful.
Figure 6-4 Set the network parameters of the oscilloscope
Connect through a router
(1) Connection. Use a LAN cable to connect the oscilloscope with a router, the
LAN port of the oscilloscope is in the right panel; the computer should be
connected to the router too.
(2) Set the network parameters of the computer. Since the oscilloscope can
not support obtaining an IP address automatically, you should assign a static
