Owon TAO3000 Dual-Channel Series User Manual

8.Demonstration
124
Example 6: Video Signal Trigger
Observe the video circuit of a television, apply the video trigger and obtain the
stable video output signal display.
Video Field Trigger
For the trigger in the video field, carry out operations according to the following
steps:
(1) Click to call up the menu panel. Click the Trig Menu softkey on panel
to display the Trigger menu.
(2) Select the first menu item in the bottom menu. Select Single in the right
menu.
(3) In the left menu, select Video as the mode.
(4) Select Source in the bottom menu. Select CH1 in the right menu.
(5) Select Modu in the bottom menu. Select NTSC in the right menu.
(6) Select Sync in the bottom menu. Select Field in the right menu.
(7) Adjust the vertical scale, vertical position and horizontal scale to obtain a
proper waveform display (see Figure 8-7).

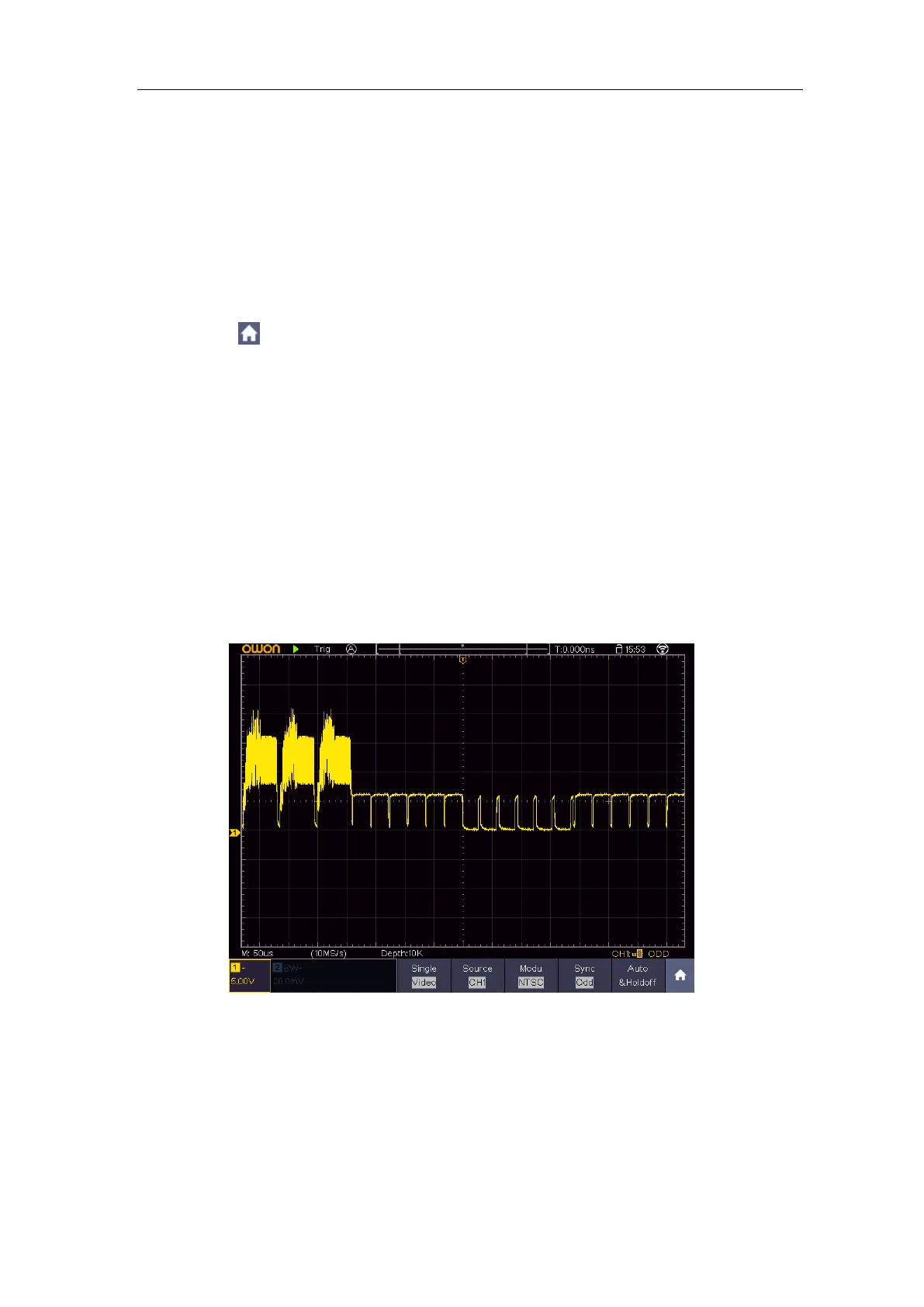

Figure 8-7 Waveform Captured from Video Field Trigger
