Panasonic Diga DMR-EX98VEB User Manual

10
RQT9089

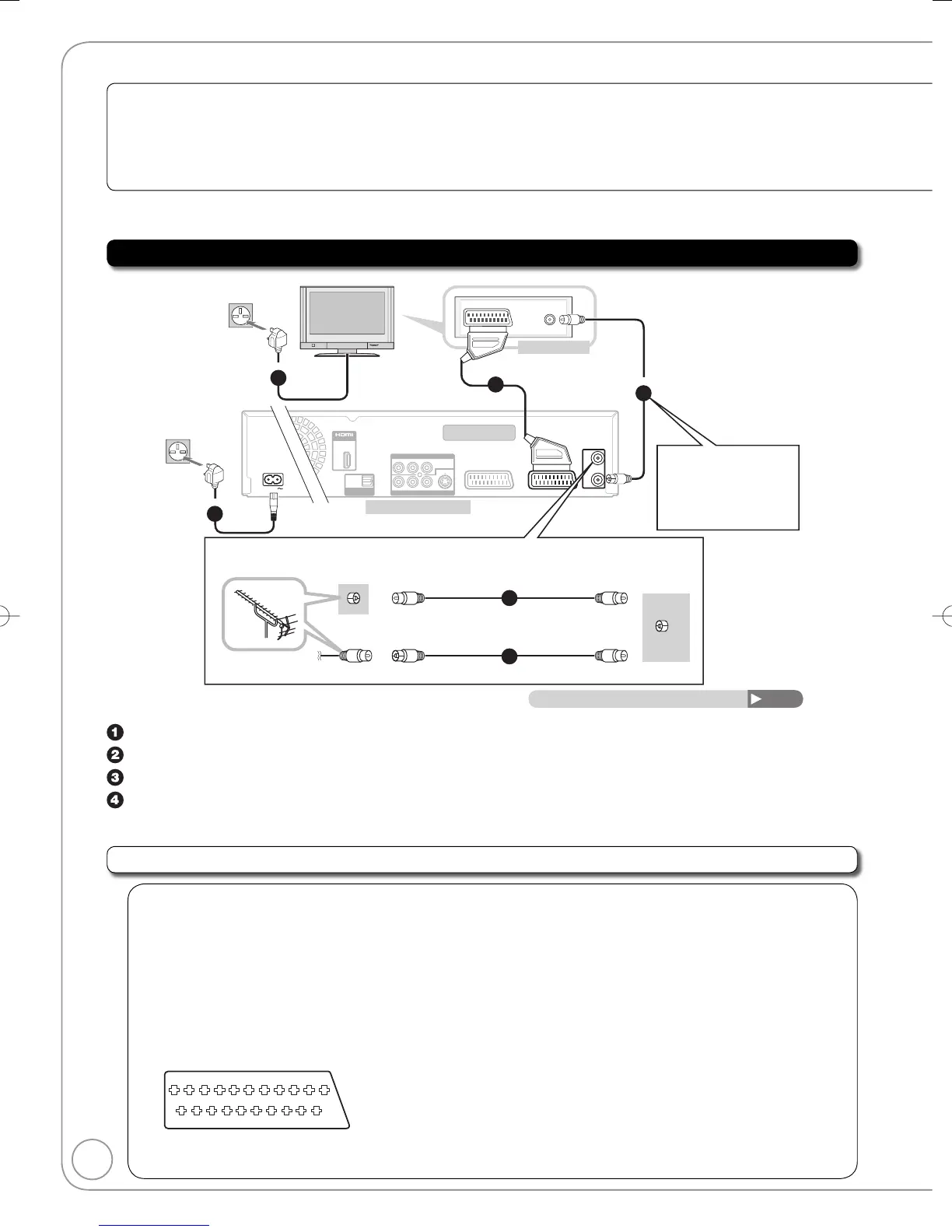

Basic Connection
Before connection, turn off the mains for all connected equipment and read the appropriate operating instructions.
Be sure to read the Caution for AC Mains Lead on page 3.
Connecting to a Television only
Connections other than the 21-pin Scart cable
87–88
Rear of this unit
Rear of TV
RF IN
AV
To household
mains socket
AC IN
AV OUT
AV 1 (TV)
RF
IN
RF
OUT
OUT
VIDEO
COMPONENT VIDEO OUT
R-AUDIO-L
S VIDEO
YP
B PR
AV 2 (EXT)
OPTICAL
DIGITAL AUDIO OUT
(
PCM/BITSTREAM
)
DMR-EZ98VEBK
PR0 00 001010
SER NO.
DMR-EX98VEBK
PR0 00 001010
SER NO.
RF
IN
The RF coaxial cable cannot
be used for showing pictures
from the unit. The unit must
be connected using another
method, e.g. 21-pin Scart
cable to show pictures from
the unit on the television set.
Use one of the RF coaxial cable (black or grey) to connect this unit’s RF IN terminal to your aerial socket or
aerial cable.
RF coaxial cable (supplied, grey)
or
RF coaxial cable (supplied, black)
To the aerial
To this unit
To household
mains socket
4
Step
3
Step
2
Step
4
Step
1
Step
1
Step
RF coaxial cable (supplied) from the aerial socket or aerial cable to the “RF IN” on the unit.
RF coaxial cable (supplied, black) from the “RF OUT” on the unit to the “RF IN” on the TV.
21-pin Scart cable (not supplied) from the “AV1 (TV)” on the unit to the “AV” on the TV.
AC mains lead (supplied) from the “AC IN~” on the unit and the TV to a household mains socket.
After completing the above connections, proceed to the TV Tuning (➔ 13).
21-pin Scart terminal
19
20
21
1
3
5
7
9
11
13
15 17
2
4
6
8
10 12 14 16 18
The 21-pin Scart terminal transmits both input
and output signals for picture and sound.
TVs equipped with the same type of terminal
can be connected here.
This type of terminal is also called Peritel,
Euro Connector and Euro AV.
AV1 Scart terminal (TV)
V1 Scart terminal (TV)
AV2 Scart terminal (EXT)
V2 Scart terminal (EXT)
1 Audio output CH2 (R) 1 Audio output CH2 (R)
2 Audio input CH2 (R) 2 Audio input CH2 (R)
3 Audio output CH1 (L) 3 Audio output CH1 (L)
4 Audio ground 4 Audio ground
5 Blue ground 5 Blue ground
6 Audio input CH1 (L) 6 Audio input CH1 (L)
7 Blue output 7 Blue input
8 Switching voltage output 8 Switching voltage input
9 Green ground 9 Green ground
10 Q Link control signal 10 Reserved
11 Green output 11 Green input
12 Reserved 12 Reserved
13 Red ground 13 Red ground
14 Blanking ground 14 Blanking ground
15 Red output / chrominance output 15 Red input / chrominance input
16 Blanking output 16 Blanking input
17 Video output ground 17 Video output ground
18 Video input ground 18 Video input ground
19 Video output / luminance output 19 Video output
20 Video input 20 Video input / luminance input
21 Ground 21 Ground
• When the unit is connected to a
Q Link-compatible TV with a fully wired 21-pin
Scart cable, you can use convenient functions
of Q Link.
Use of the RF coaxial cable
To prevent interference patterns from appearing on your TV, use only the supplied RF coaxial cables when you
connect this unit to your TV and aerial outlet or aerial cable.
Keep the RF coaxial cables as far away as possible from other cables.
Do not roll up the RF coaxial cables.
•
•
RQT9089-BDMR-EX98VEB.indb10RQT9089-BDMR-EX98VEB.indb10 2008/04/2318:59:132008/04/2318:59:13
