You can connect this unit to a TV using the audio/video (AV) cable, S Video cable or component video cables instead of the 21-
pin Scart cable (➔ 10, 11, 86).

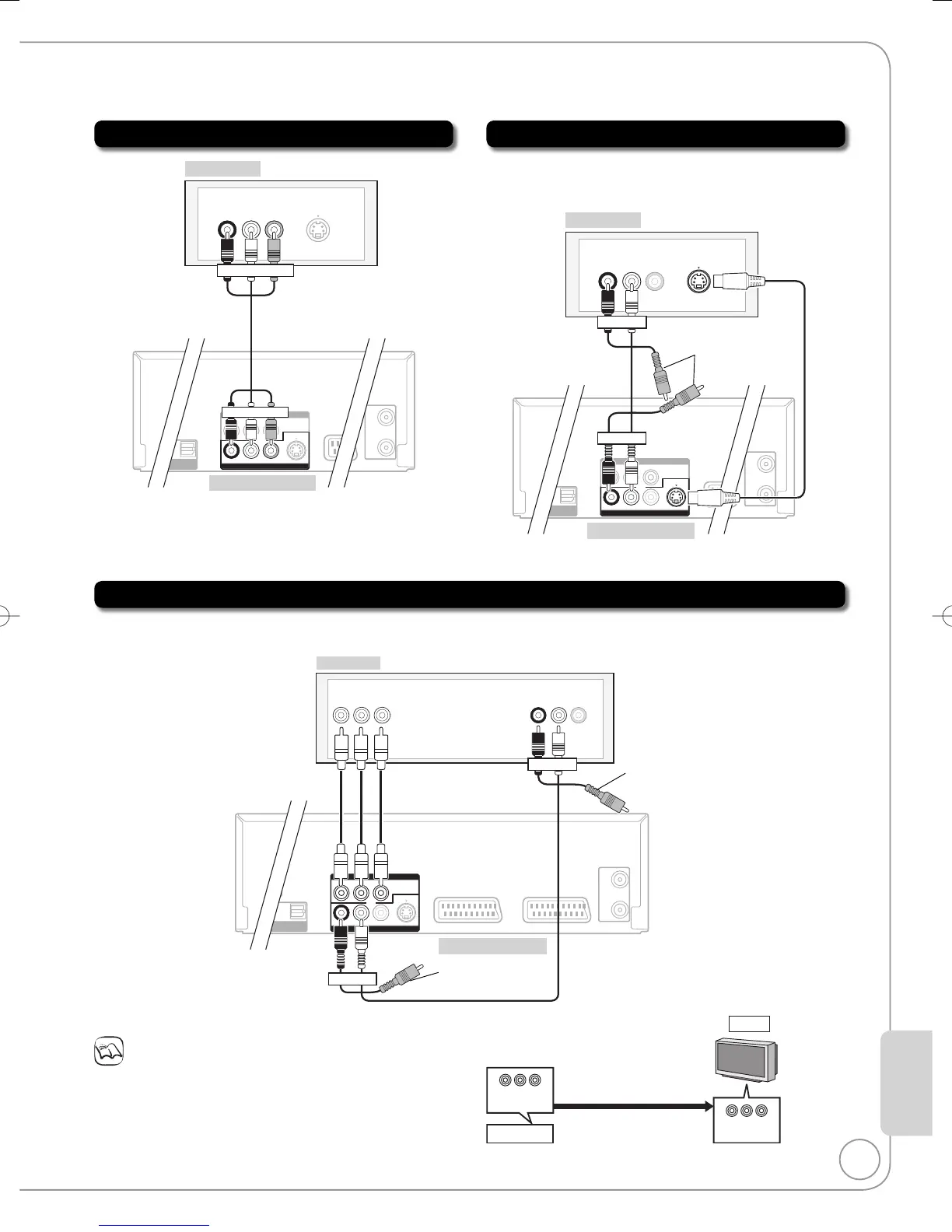

Using an Audio/Video Cable
RF
IN
RF
OUT
AV 2 (EXT)
T
PTICAL
GITAL AUDIO OUT
CM/BITSTREAM)
S VIDEO
VIDEO
P
R
P
B
Y
R-AUDIO-L
COMPONENT VIDEO OUT
OUT
AC IN
Rear of TV
Rear of this unit
S VIDEO
IN
AUDIO IN
R L
VIDEO
IN
Red White Yellow
Red White Yellow
Using an S Video Cable
The S VIDEO OUT terminal achieves a more vivid picture
than the VIDEO OUT terminal. (Actual results depend on the
television.)
AV 2 (EXT)
T
PTICAL
GITAL AUDIO OUT
CM/BITSTREAM)
S VIDEO
VIDEO
P
R
P
B
Y
R-AUDIO-L
COMPONENT VIDEO OUT
OUT
AC IN
RF
IN
RF
OUT
Rear of TV
Rear of this unit
AUDIO IN
R L
VIDEO
S VIDEO
IN
Red White
Red White
IN
S Video cable
(not supplied)
Audio/video cable
(supplied)
Leave the yellow
cable unconnected.
Using Component Video Cables
The COMPONENT VIDEO OUT terminals on this unit can be used for either interlace or progressive output (➔ 105) to provide a
purer picture than the S VIDEO OUT terminal.
RF
IN
RF
OUT
AV 1 (TV)AV 2 (EXT)
OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
S VIDEO
VIDEO
P
R
P
B
Y
R-AUDIO-L
COMPONENT VIDEO OUT
OUT
AC IN
Rear of TV
AUDIO IN
R L
VIDEO
IN
COMPONENT
VIDEO IN
YPB PR
Rear of this unit
Red White
Red White
Audio/video cable
(supplied)
Component video cables
(not supplied)
Leave the yellow cable
unconnected.
Leave the yellow cable
unconnected.
For progressive output (➔ 75)
Notes
If you have a regular television (CRT : cathode ray tube)
Progressive output may cause some flickering, even
if it is progressive compatible. Turn off “Progressive”
if you are concerned about it (➔ 75). This is the
same for multi-system televisions using PAL mode.
•
COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN
This unit
Progressive output
CRT
DO NOT
•
Audio/video cable
(supplied)
RQT9089-BDMR-EX98VEB.indb87RQT9089-BDMR-EX98VEB.indb87 2008/04/2319:01:292008/04/2319:01:29
