Panasonic Diga DMR-EX98VEB User Manual

86
RQT9089
Using a fully wired 21-pin Scart cable
You can use a variety of Q Link functions by connecting the unit to a Q Link compatible television (➔ 50).
You can enjoy high-quality viewing by connecting the unit to an RGB compatible television.
“AV1 Output” in the Setup menu is set to “RGB 1 (without component)” or “RGB 2 (without component)” (➔ 83)
Make “AV2 Input” settings in the Setup menu (➔ 83).
Use of the supplied RF coaxial cable
To prevent interference patterns from appearing on your TV, use only the supplied RF coaxial cables when you connect this
unit to your Video Cassette Recorder and aerial outlet or aerial cable.
Keep the RF coaxial cables as far away as possible from other cables.
Do not roll up the RF coaxial cables.
–
–
•
•
HDD/DVD output and HDD/DVD/VHS output
The unit has HDD/DVD/VHS common out terminals and HDD/DVD priority out terminals.
HDD/DVD/VHS common out
For HDD/DVD/VHS common out terminals, both HDD/DVD and VHS signals
can be output, e.g. RGB or composite video.
HDD/DVD priority out
This is the dedicated terminal to enjoy pictures played on HDD/DVD in
higher picture quality, e.g. HDMI or component video.
The HDD/DVD priority out terminals can also output the VHS signal.
However this is not possible during HDD/DVD recording or HDD/DVD timer
recording.
•
•
•
AV OUT
AV 1 (TV)
RF
IN
RF
OUT
OUT
VIDEO
COMPONENT VIDEO OUT
R-AUDIO-L
S VIDEO
YP
B PR
AV 2 (EXT)
OPTICAL
DIGITAL AUDIO OUT
(
PCM/BITSTREAM
)
HDD/DVD/VHS common out
HDD/DVD priority out
Before connection, turn off the mains for all connected equipment and read the appropriate operating instructions.
Be sure to read the Caution for AC Mains Lead on page 3.

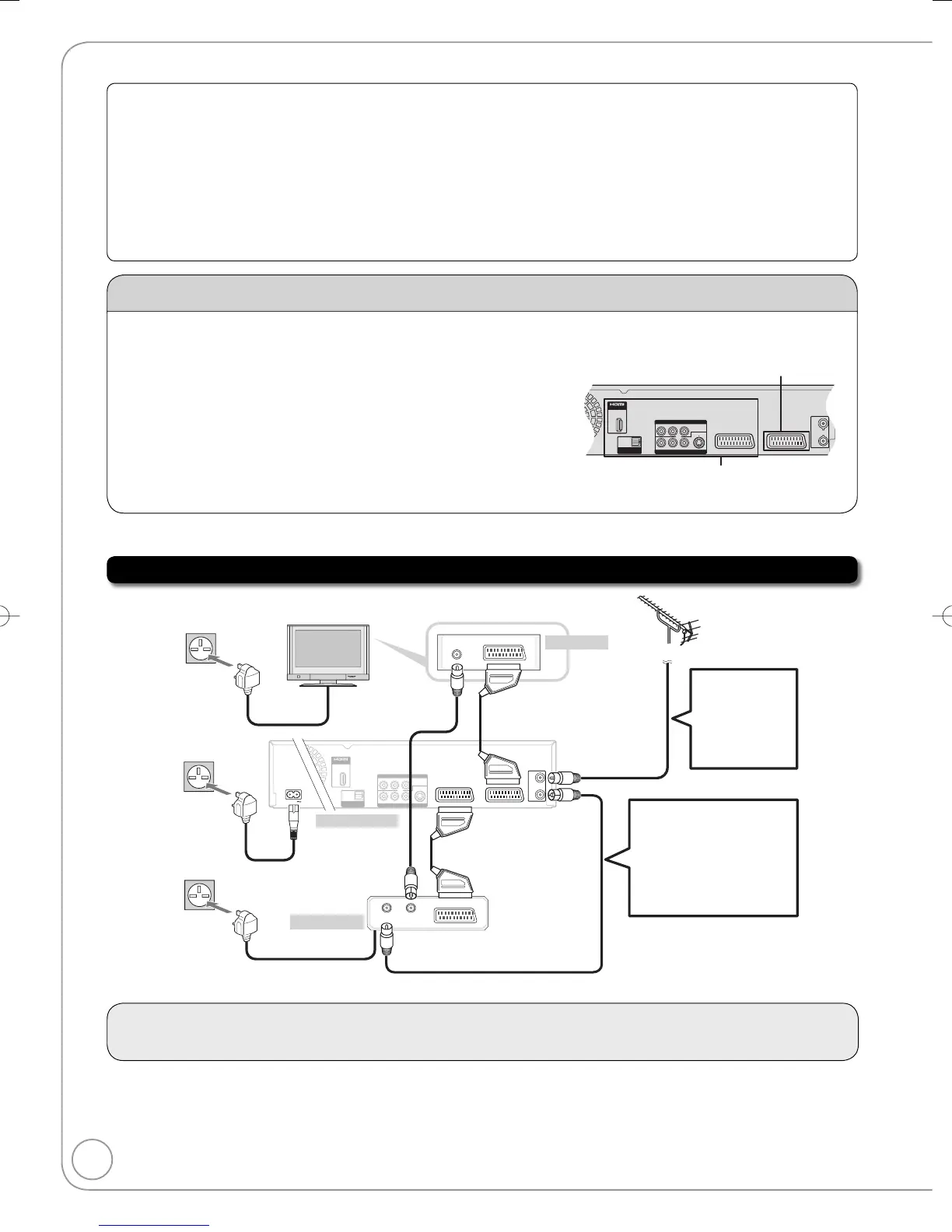

Adding a VCR: Connecting to a Television and a Video Cassette Recorder
AC IN
RF IN
RF
IN
RF
OUT
AV 1 (TV)AV 2 (EXT)
AV OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
S VIDEO
VIDEO
P
R
P
B
Y
R-AUDIO-L
COMPONENT VIDEO OUT
OUT
AV
RF OUT
AV
RF IN
RF coaxial cable
(supplied, black)
The RF coaxial cable cannot be
used for showing pictures from the
unit. The unit must be connected
using another method, e.g. 21-pin
Scart cable to show pictures from
the unit on the television set.
Use one of the RF
coaxial cable (black
or grey) to connect
this unit’s RF IN
terminal to your aerial
socket or aerial cable
(➔ 10).
Rear of TV
Rear of VCR
To the aerial
To household
mains socket
Rear of this unit
To household
mains socket
To household
mains socket
AC mains lead
(supplied)
21-pin Scart cable
(not supplied)
21-pin Scart cable
(not supplied)
RF coaxial cable
(supplied)
After completing the above connections, proceed to the TV Tuning (➔ 13).
To recording from a VCR
Refer to “Recording from an External Device” (➔ 32).
•
Additional Connections
RQT9089-BDMR-EX98VEB.indb86RQT9089-BDMR-EX98VEB.indb86 2008/04/2319:01:282008/04/2319:01:28
