Paradox Esprit 738 User Manual

Reliability
The Esprit’s superior capabilities are driven by cutting edge hardware. Use of the most powerful RISC
processors on the market, with built-in “Analog to Digital” converters and SMD Technology, means these
control panels require 30-40% less components than any comparable units.
Total Compatibility
All programming, comprehensive system features, and upload/download software of Esprit panels are
identical. This total compatibility significantly reduces the time required to conduct training, programming
and system upgrades. There’s just one set of procedures for all Esprit panels.
Advanced Technology Zoning ( 728L , 728 , 738 , 748 )

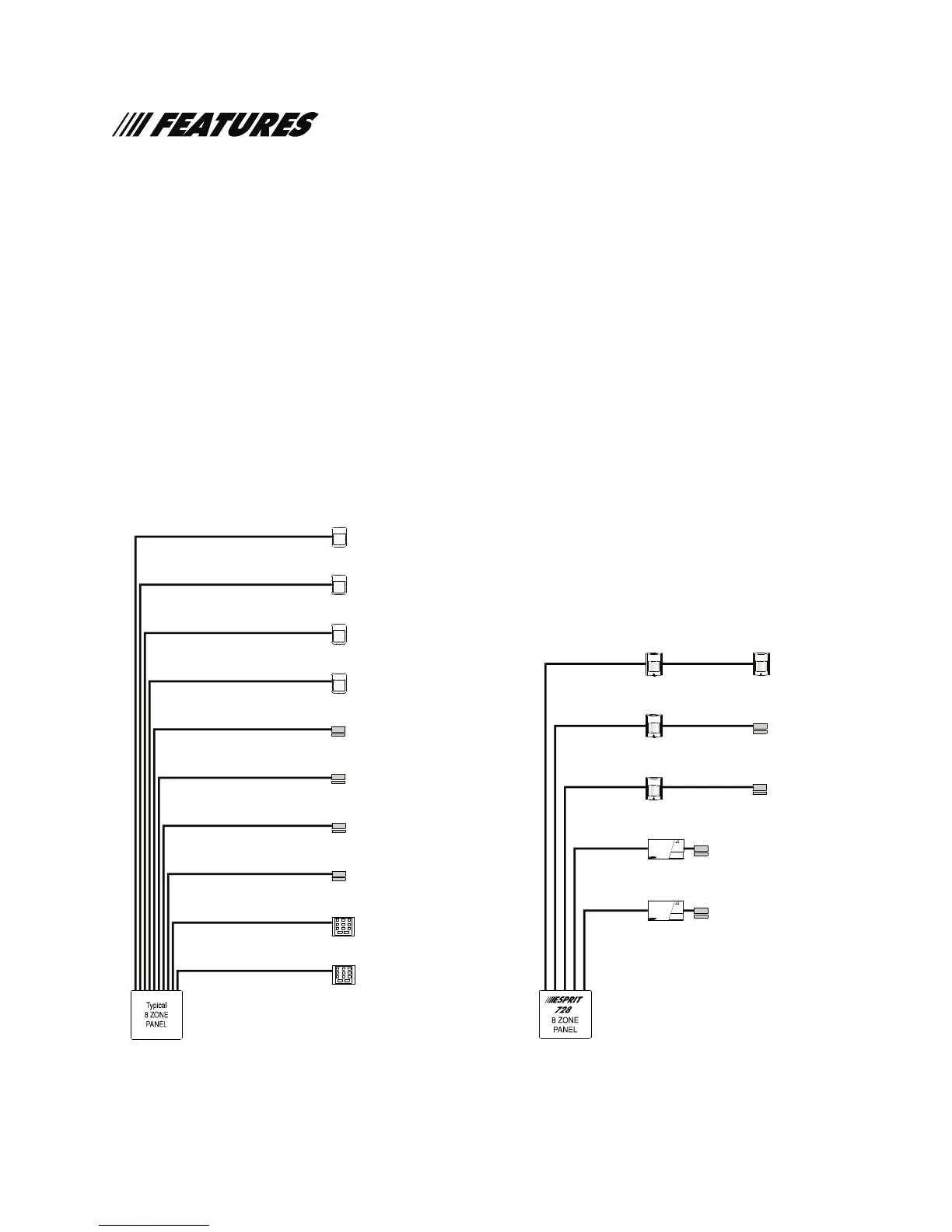

Advanced Technology Zoning software circuitry has been developed, which permits 2 zones and tamper
on a single pair of wires, as well as wire fault recognition. ATZ simplifies the task of meeting the zone
requirements of any application and, at the same time, reduces installation costs.
5
Advanced Technology Zoning
No additional circuits required
for tamper supervision
Note:
For tamper supervision,
install additional circuits.
Note:
Model 728 shown also
available on 728L, 738, 748.
Door contact
Detector
Detector
Detector
Detector
Door contact
Door contact
Door contact
Keypad-1
Keypad-2
A
R
M
E
D
A
R
M
E
D
Zone 1 Zone 4
Zone 5
Zone 6
Zone 7
Zone 8
Zone 2
Zone 3
Traditional "Home Run" Zoning
Door contact
Door contact
Door contact
Door contact
Keypad
Keypad
Detector
Detector
Detector
Detector
123
45
6
7
89
0
ENTER
123
456
789
0
ENTER
Zone 1
Zone 4
Zone 5
Zone 6
Zone 7
Zone 8
Zone 2
Zone 3
Zoning -
the "Old-fashioned" Way
The Paradox innovation -
"Advanced Technology Zoning"
Model 728 shown
(also available on 728L, 738, 748)
