Fuses

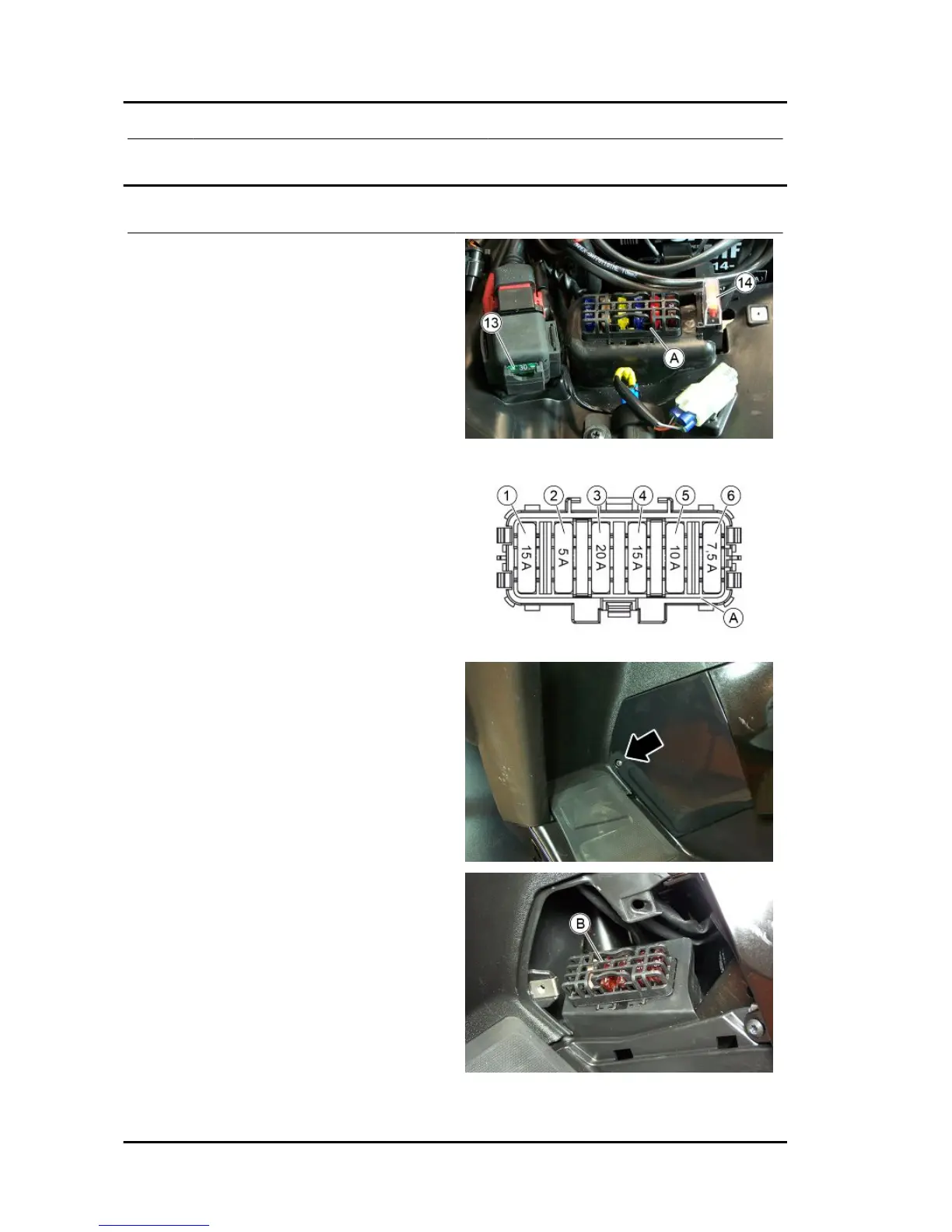

The electrical system has thirteen fuses for pro-
tection of different system circuits divided into one
single fuse «13» and two fuse-boxes.
The fuse «13» and the first box, «A», are placed
inside the battery compartment while the second
box, «B», is inside the footrest on the left side of
the vehicle.
To reach the box «B», remove the plastic cover
after removing the screw indicated in the picture.
The vehicle version equipped with ABS - ASR sys-
tem, is equipped with an additional fuse «14», for
the protection of the ABS control unit circuit and
placed inside the battery compartment.
The following tables show the characteristics of
the fuses on the vehicle.
