PIAGGIO MP3 500 i.e. SPORT User Manual

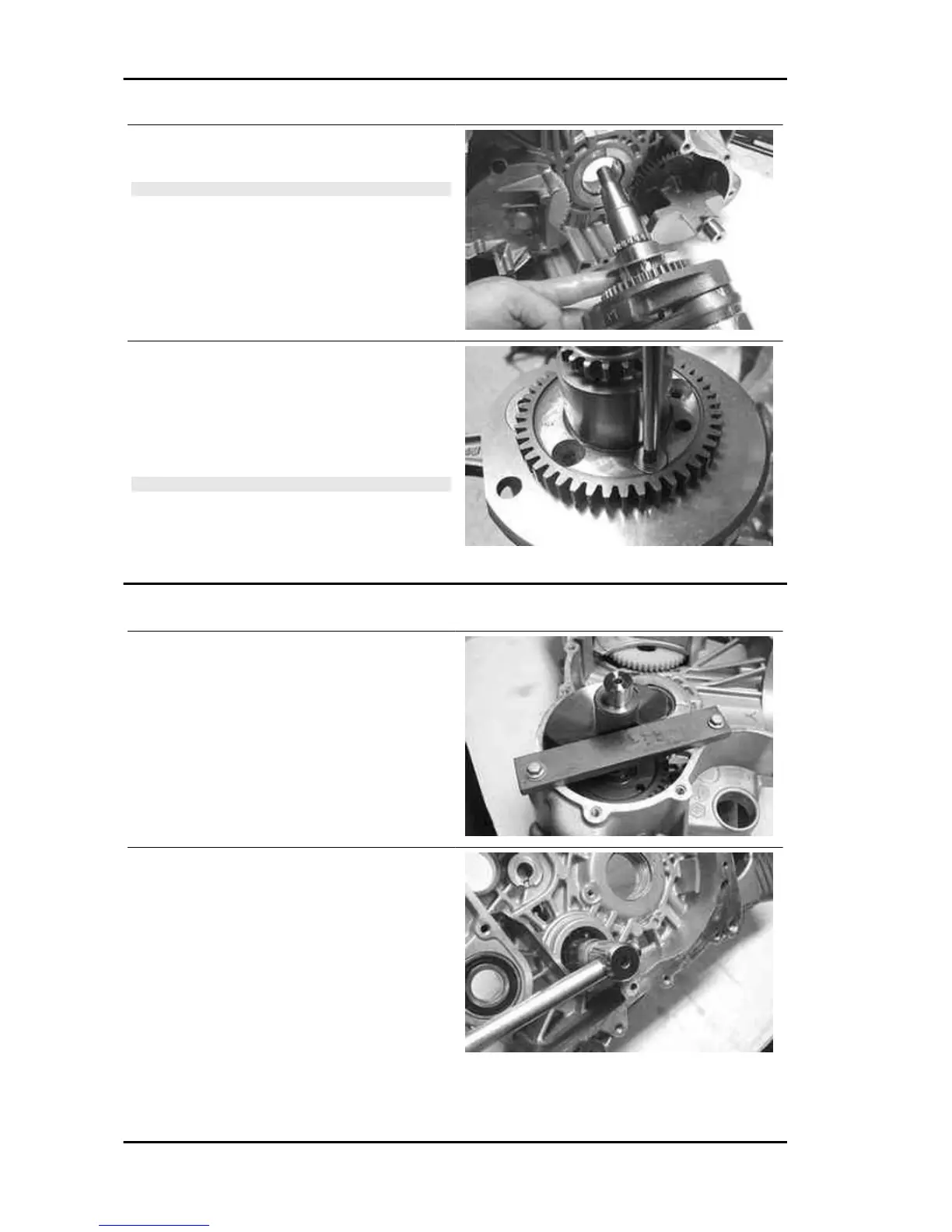

- Remove the crankshaft with the shim adjustment
washer on the flywheel side.
CAUTION
WHILE OPENING THE CRANKCASE AND REMOVING THE
CRANKSHAFT, CHECK THAT THE SHAFT THREADED
ENDS DO NOT INTERFERE WITH THE MAIN BEARINGS.
FAILURE TO OBSERVE THIS PRECAUTION CAN DAMAGE
THE MAIN BEARING.
Removing the oil pump and countershaft con-
trol gear.
- To remove the control gear, loosen the 4 fasten-
ing screws.
Remove the gear only if actually required.
CAUTION
THE SCREWS HAVE A COUNTERSUNK HEAD AND THEIR
THREADING IS LOCKED BY LOCTITE. BE CAREFUL NOT
TO DAMAGE THE CONTROL HEXAGON. TO OBTAIN BET-
TER RESULTS IT IS PREFERABLE TO USE AN INSIDE
HEXAGON SOCKET WRENCH.
Removing the countershaft
- Place the special tool as shown in the figure.
Specific tooling
020479Y Countershaft lock wrench
- Remove the fastening nut with relevant washer.
Engine MP3 500 i.e. SPORT Business_LT_ ABS-ASR_EU_USA (2015)
ENG - 222
