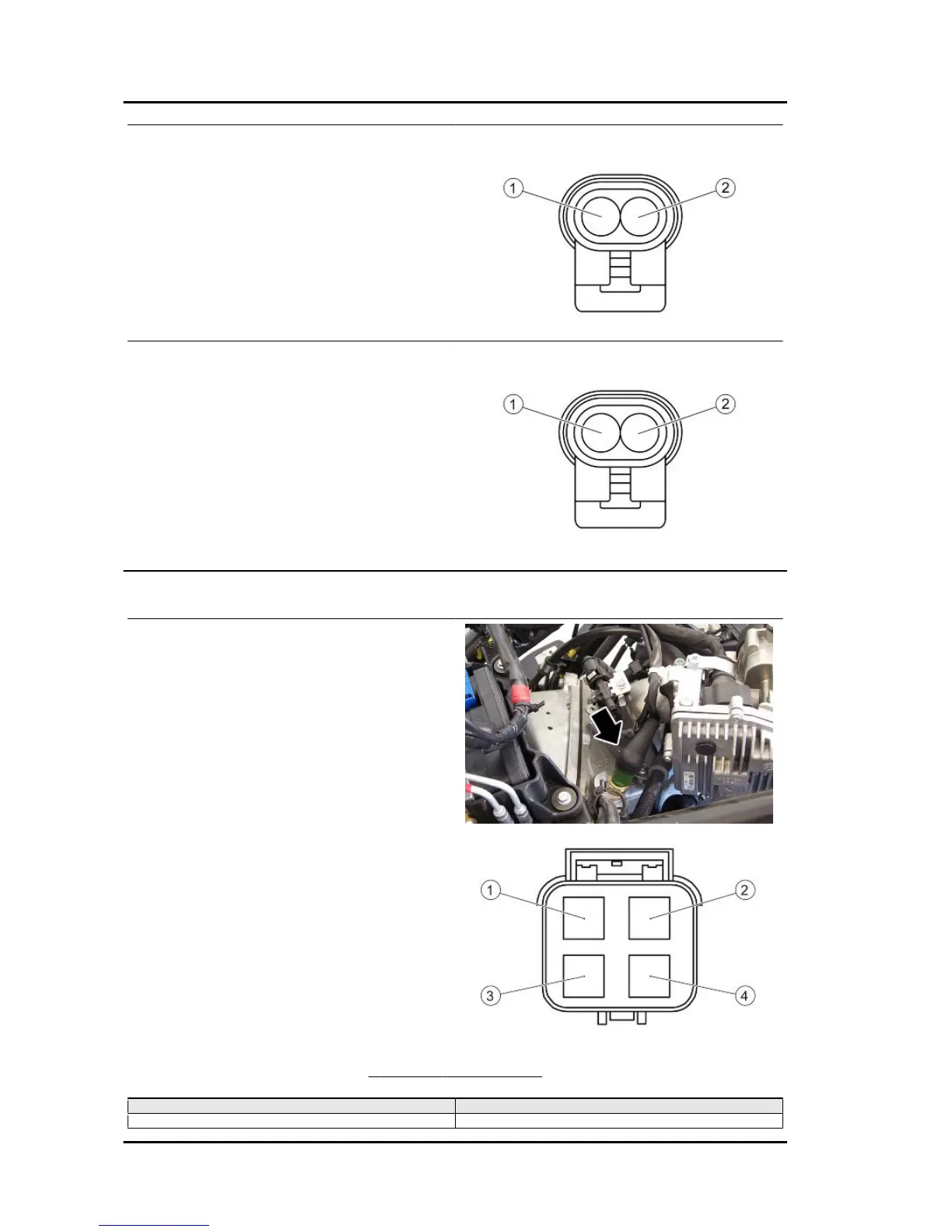

H.V. COIL CONNECTOR
1. Injection load relay (Black-Green)
2. Injection ECU (Pink-Black)
PICK-UP CONNECTOR
1. Injection ECU (Red)
2. Injection ECU (Brown)
Diagnostic instrument
ENGINE TEMPERATURE SENSOR
Function
Serves the purpose of communicating the engine
temperature to the control unit in order to optimise
performance.
Operation / Operating principle
NTC type sensor (resistance sensor, inversely
variable with temperature).
Pin-out:
1. Injection ECU
2. Instrument panel
3. Control unit ground
4. Ground lead
ELECTRICAL SPECIFICATIONS
Temperature
Resistance
20° C 1,965 - 2,500 Ω
60° C 561.1 - 590.5 Ω
Electrical system MP3 500 i.e. SPORT Business_LT_ ABS-ASR_EU_USA
(2015)
ELE SYS - 126
