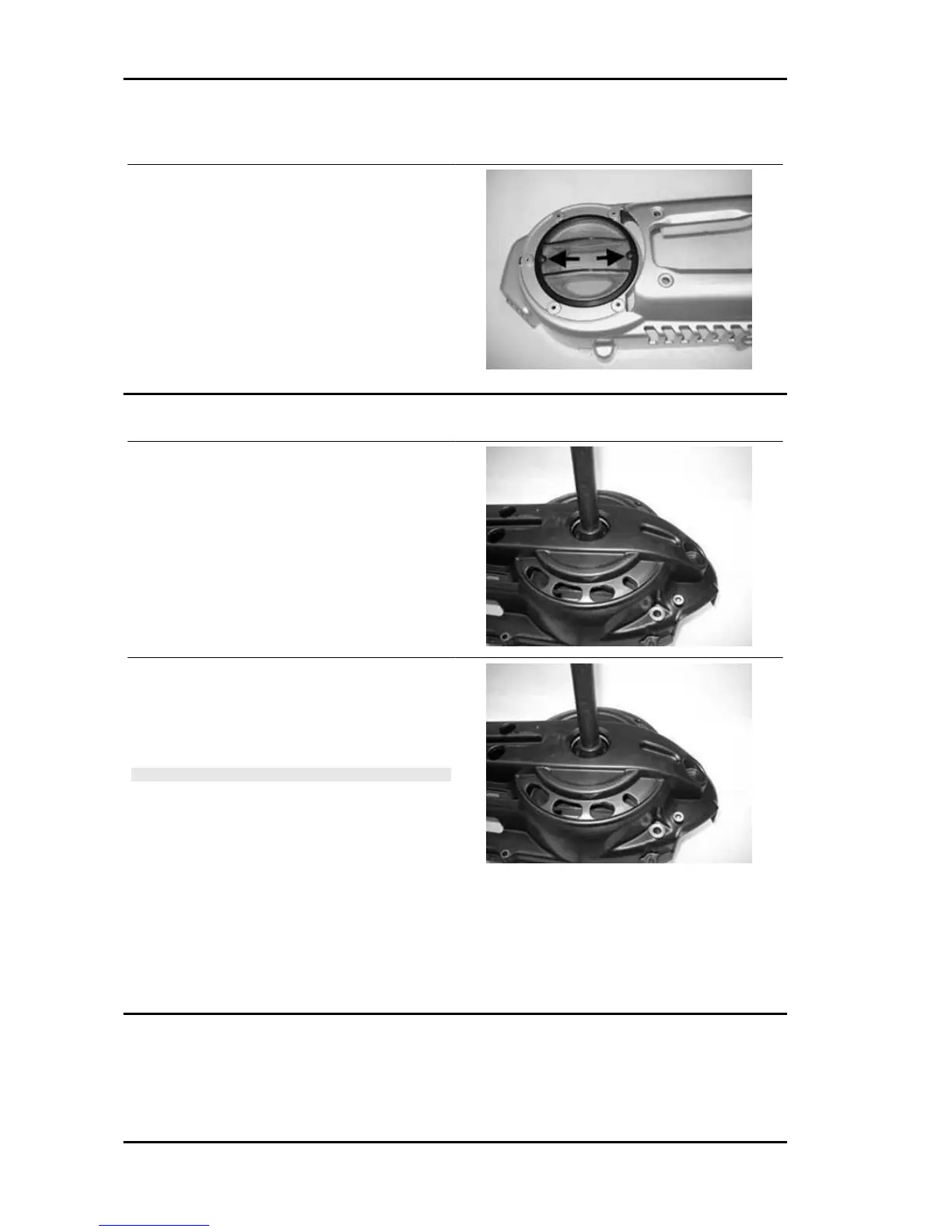

Air duct filter
- Remove the external air conveyor.
- Unscrew the 2 fastening screws shown in the fig-
ure to remove the conveyor filter.
Removing the driven pulley shaft bearing
- Remove the transmission cover.
- Remove the Seeger ring.
- Place transmission cover on a wood surface and
use the special tool so that it is adequately sup-
ported.
- Pull out the bearing using the special tool.
N.B.
BELL MUST BE PLACED INTO THE TRANSMISSION COV-
ER, CLOSE TO THE BEARING SEAT AND THE WOODEN
SURFACE, SINCE WITHOUT BELL THE ENTIRE COVER
STRUCTURE WOULD BEND. NOT ONLY IN THE AREA OF
MAXIMUM STURDINESS.
Specific tooling
001467Y002 Driver for OD 73 mm bearing
020376Y Adapter handle
020375Y 28 x 30 mm adaptor
020439Y 17 mm guide
Engine MP3 500 i.e. SPORT Business_LT_ ABS-ASR_EU_USA (2015)
ENG - 146
