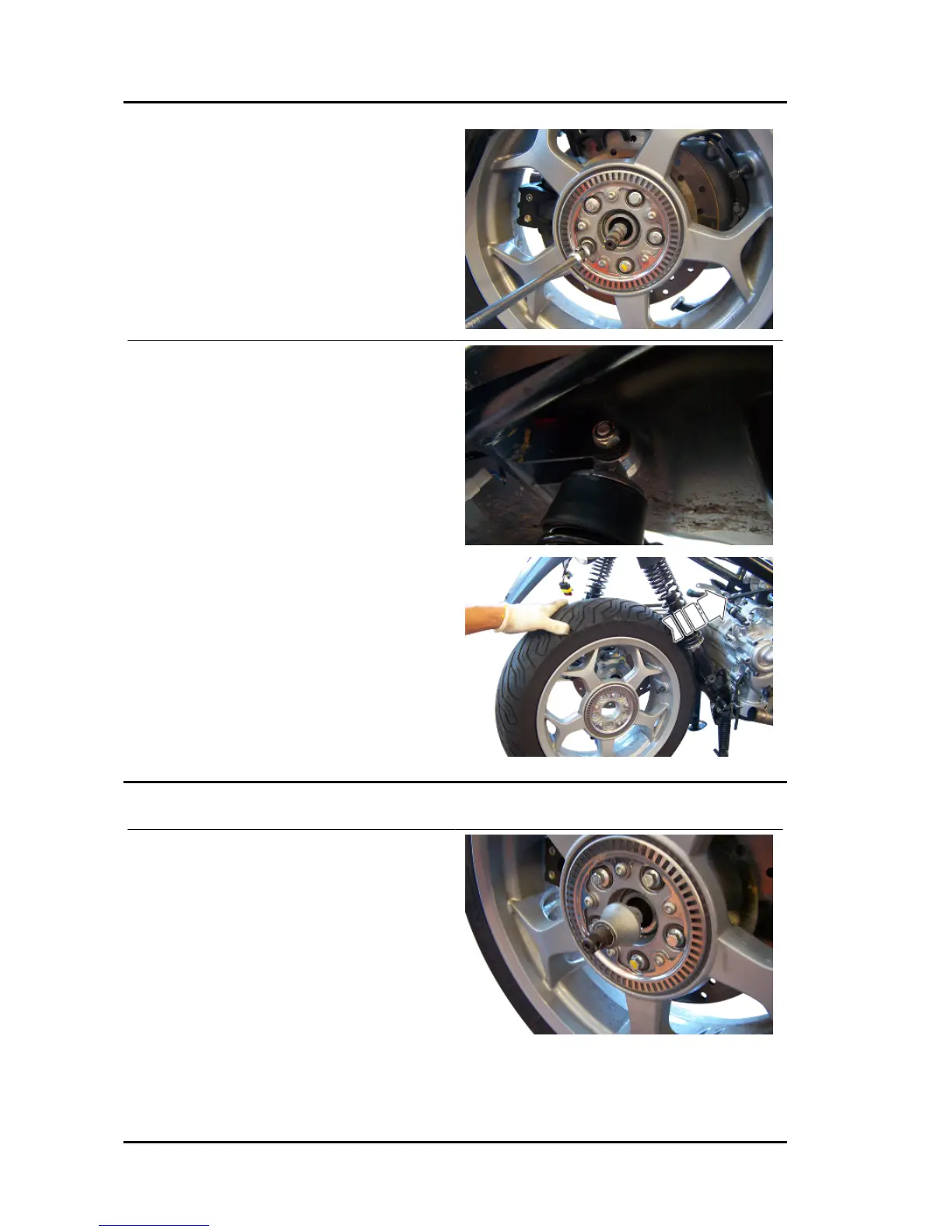

- Undo the upper fixing of the right shock absorber
and remove it.
- Remove the wheel.
- If also the plastic of the side fairings has been
removed previously, to allow the removal of the
wheels, just pull aside the shock absorber towards
the front part of the vehicle.
Refitting the rear wheel
To fit, follow the removal steps but in the reverse
sequence, being careful to fit the spacers on the
wheel axle as shown in the picture.
Locking torques (N*m)
Silencer arm clamping screws 27 - 30 Rear
wheel axle nut 104 to 126 Shock absorber-crank-
case attachment bracket 20 - 25 Lower shock
absorber clamping screw 33 - 41 Nm Rear brake
calliper fixing screws 41.5 to 51.5
Suspensions MP3 500 i.e. SPORT Business_LT_ ABS-ASR_EU_USA
(2015)
SUSP - 346
