Specification Desc./Quantity
8 Fuse No. 8 Capacity: 5 A
Protected circuits (live): Stop lights (via relay), starter
relay.
9 Fuse No. 9 Capacity: 7.5 A
Protected circuits (live): Horn, high beam flashing
switch.
10 Fuse No. 10 Capacity: 7.5 A
Protected circuits (live): Injection load relay, ABS con-
trol unit, tip over sensor, engine control unit, immobilizer
aerial.
11 Fuse No. 11 Capacity: 7.5 A
Protected circuits (live): USB socket, parking electron-
ic control unit, pressure sensor, horn (via relay), head-
light relay, pre-installation for anti-theft device, instru-
ment panel, warning lights unit.
12 Fuse No. 12 Capacity: 7.5 A
Protected circuits (live): PMP connection, daylight run-
ning lights, licence plate lights, instrument panel lighting,
turn indicator control device, pre-installation heated
handgrips control device and leg warmer.
13 Fuse No. 13 Capacity: 30 A
Protected circuits: Recharge circuit.
Protected circuits (live): Fuses No. 8, 9, 10 and 11.
14 Fuse No. 14 (if present) Capacity: 40 A
Protected circuits: ABS control unit.

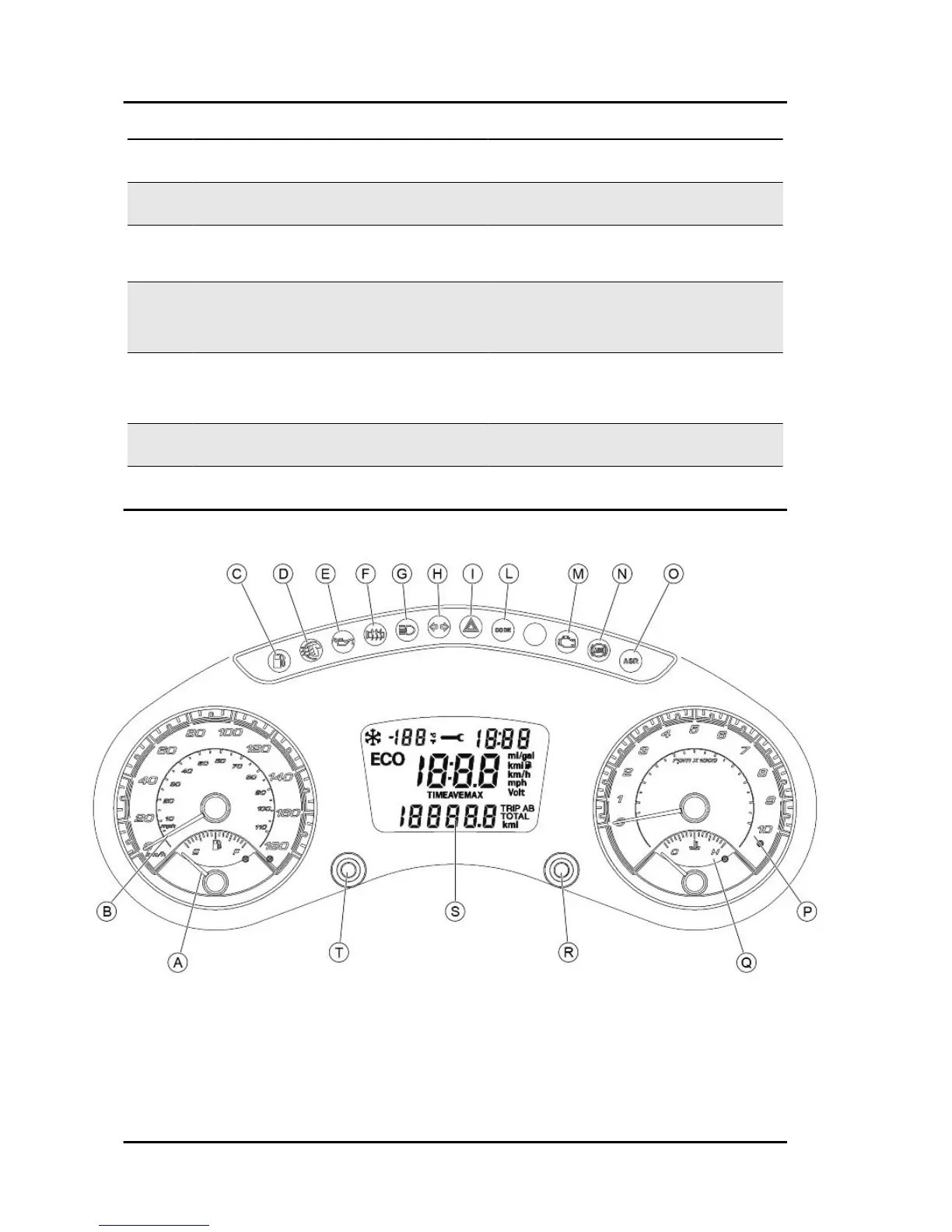

Dashboard
A = Fuel gauge
B = Speedometer
C = Fuel reserve warning light
D = Leg warmer warning light (if fitted)
M = Low oil pressure warning light
Electrical system MP3 500 i.e. SPORT Business_LT_ ABS-ASR_EU_USA
(2015)
ELE SYS - 114
