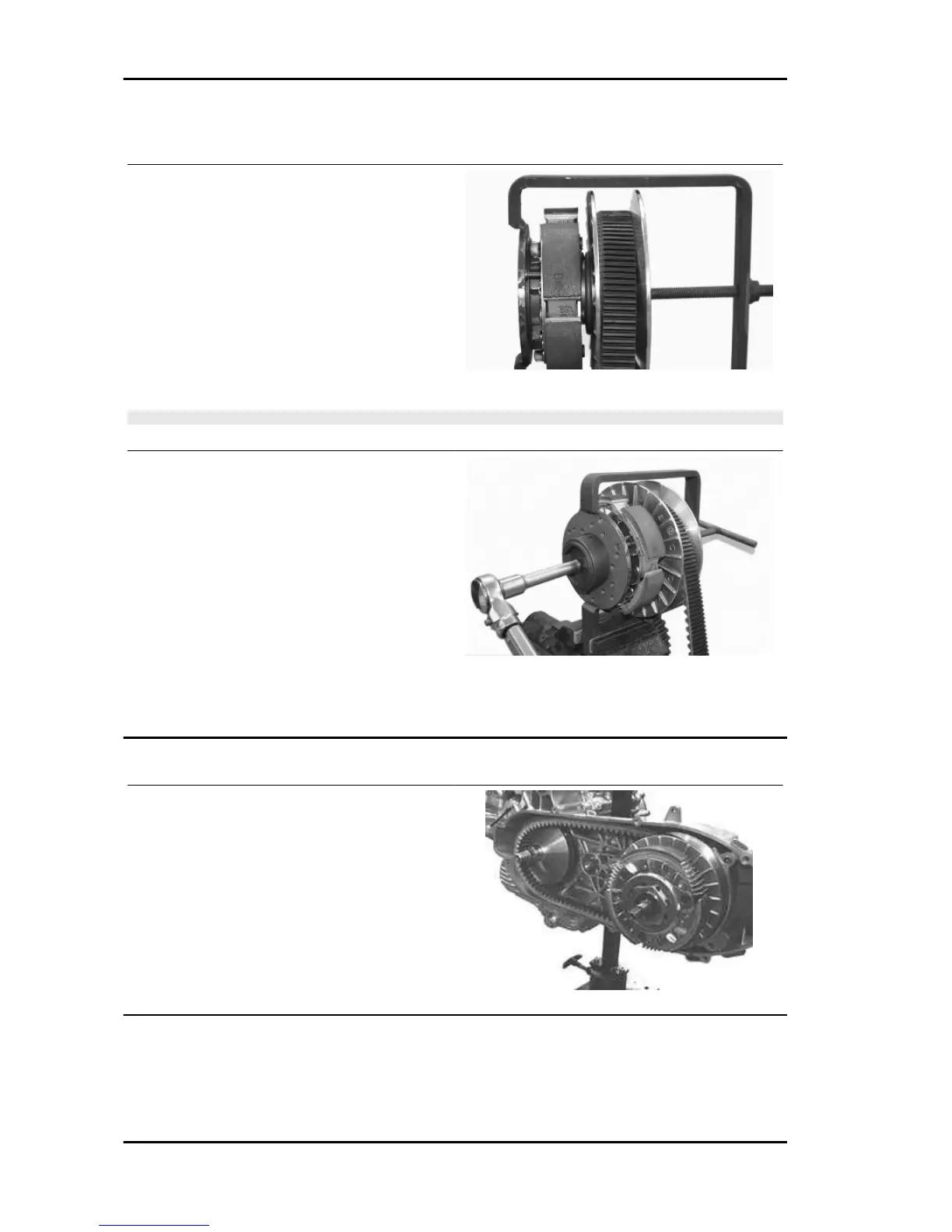

Refitting the clutch
- Prepare the special tool as for removal;
- Preassemble the driven pulley unit with the drive
belt according to its direction of rotation;
- Insert the driven pulley unit, the spring with
sheath and clutch into the tool.
Specific tooling
020444Y Tool for fitting/removing the clutch on
the driven pulley
- Compress the spring and insert the clutch on the driven pulley bushing.
N.B.
BE CAREFUL NOT TO DAMAGE THE SHEATH OR THE BUSHING THREADED END.
- Tighten the ring nut by hand and complete the
tightening using the special wrench to the prescri-
bed torque.
Specific tooling
020444Y Tool for fitting/removing the clutch on
the driven pulley
Locking torques (N*m)
Clutch ring nut 65 - 75
- To facilitate reassembly on the engine, turn the moving driven pulley and insert the belt onto the smaller
diameter.
Refitting the driven pulley
- Install the driven pulley assembly with belt.
Engine MP3 500 i.e. SPORT Business_LT_ ABS-ASR_EU_USA (2015)
ENG - 154
