TO AVOID SCORING THE FAYING SURFACE, DO NOT ROTATE THE VALVE WHEN NO LAPPING
COMPOUND IS LEFT. CAREFULLY WASH THE CYLINDER HEAD AND THE VALVES WITH A
SUITABLE PRODUCT FOR THE TYPE OF LAPPING COMPOUND BEING USED.
CAUTION
DO NOT CHANGE THE VALVE FITTING POSITION (RH - LH).

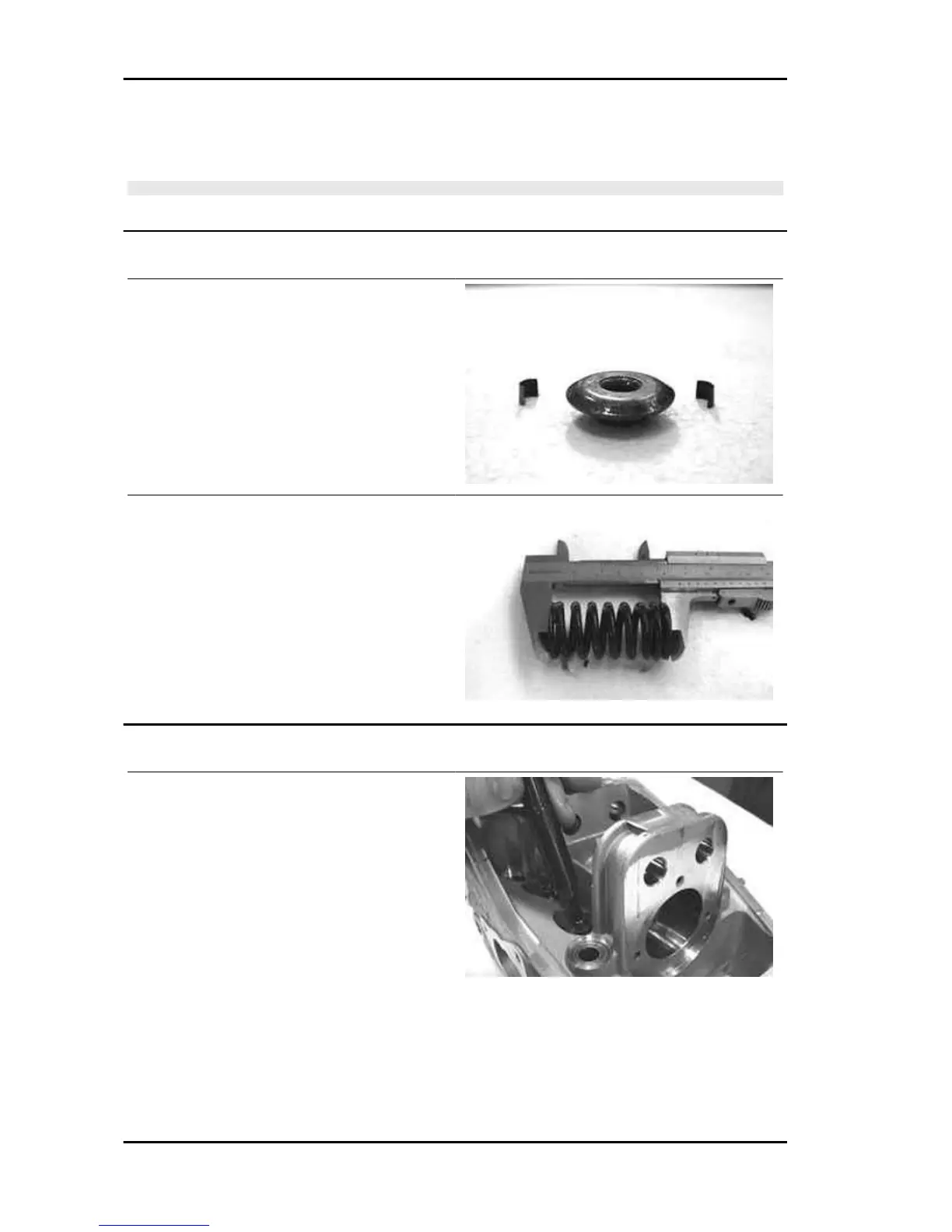

Inspecting the springs and half-cones
- Check that the upper and lower supporting spring
washers, the cotters and the oil seal show exhibit
no signs of abnormal wear. Replace a component
when worn.
- Measure the unloaded spring length.
Characteristic
Standard length:
44.4 mm
Limit allowed after use:
42.4 mm
Refitting the valves
- Place the valve spring support washers on the
head.
- Alternately insert the 4 oil guards using the spe-
cial tool.
- Lubricate the oil guards and the valve guides.
Specific tooling
020306Y Punch for fitting the valve seal rings
Engine MP3 500 i.e. SPORT Business_LT_ ABS-ASR_EU_USA (2015)
ENG - 208
