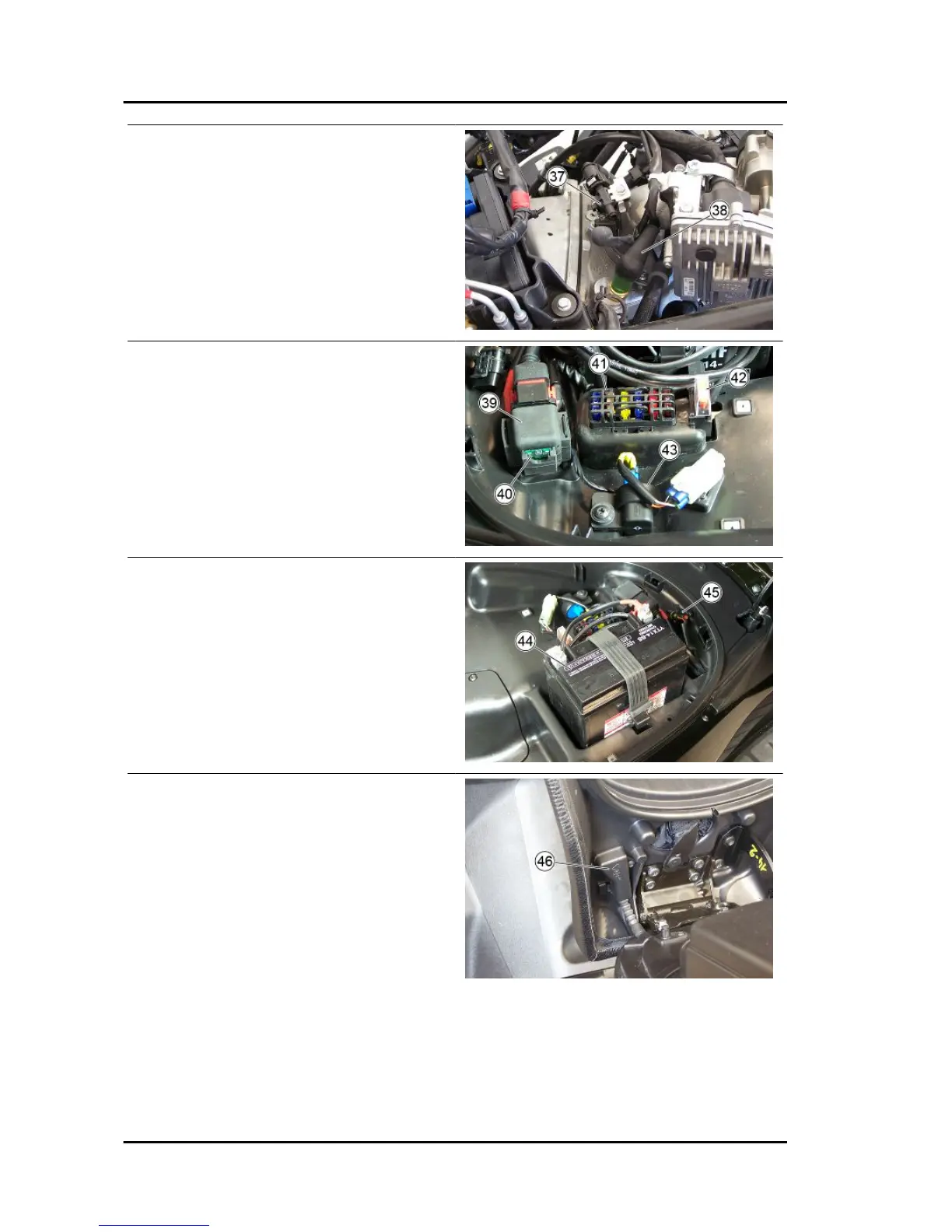

37. INJECTOR
38. ENGINE TEMPERATURE SENSOR
Remove the inspection cover located in the helmet
compartment to reach it.
39. START-UP RELAY
40. FUSE No. 13
41. MAIN FUSES
42. FUSE No. 14 (IF APPLICABLE)
43. TIP OVER SENSOR
These components are found in the helmet com-
partment.
44. BATTERY
45. DIAGNOSIS SOCKET
These components are found in the helmet com-
partment.
46. RIDER DETECTION SENSOR
The sensor is located under the saddle, undo the
screw and remove the cover to reach it.
Electrical system MP3 500 i.e. SPORT Business_LT_ ABS-ASR_EU_USA
(2015)
ELE SYS - 74
