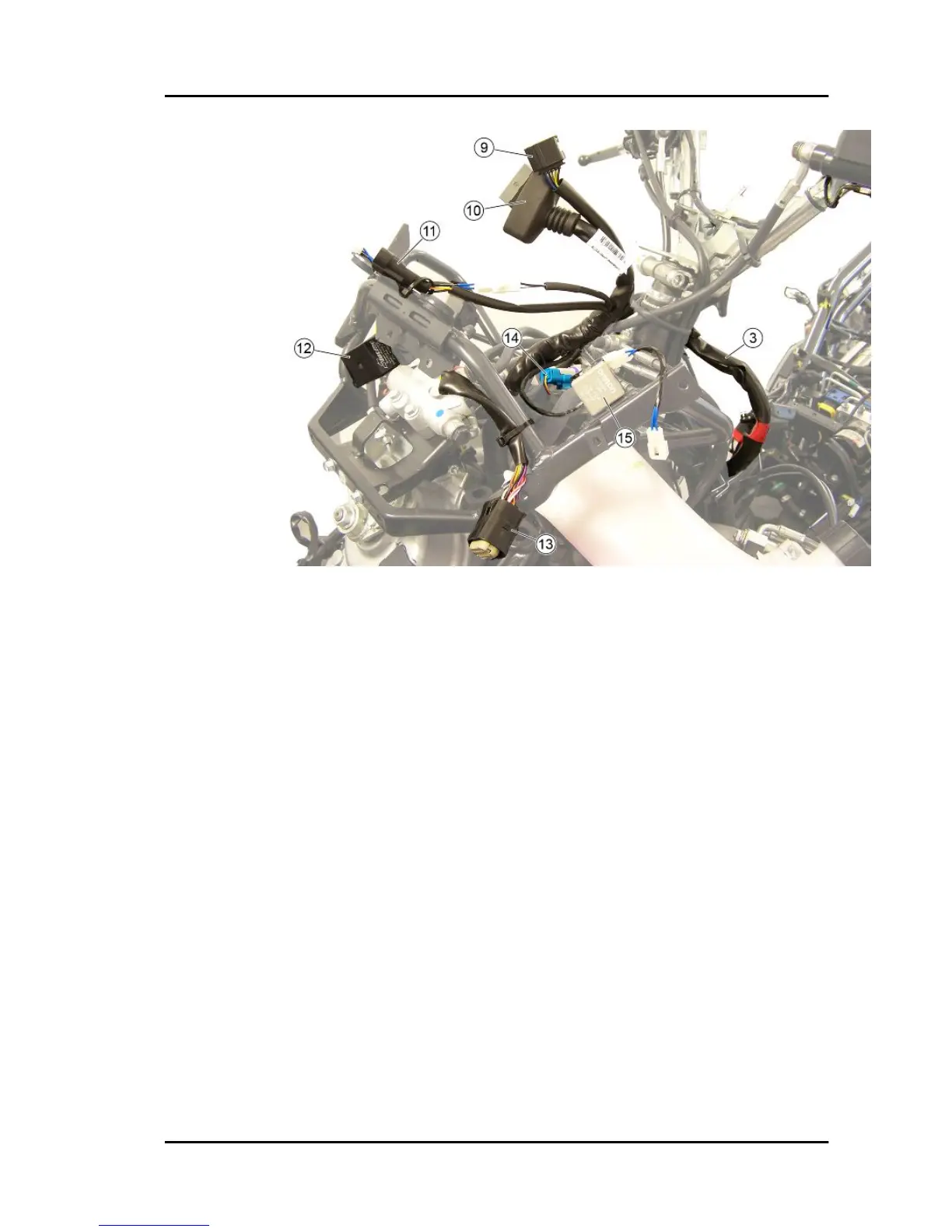

9. Warning light unit connector
10. Instrument panel connector
11. USB socket connector
12. Turn indicators control device
13. PMP connection
14. Pressure sensor
15. Stop light relay
MP3 500 i.e. SPORT Business_LT_ ABS-ASR_EU_USA (2015) Electrical
system
ELE SYS - 77
