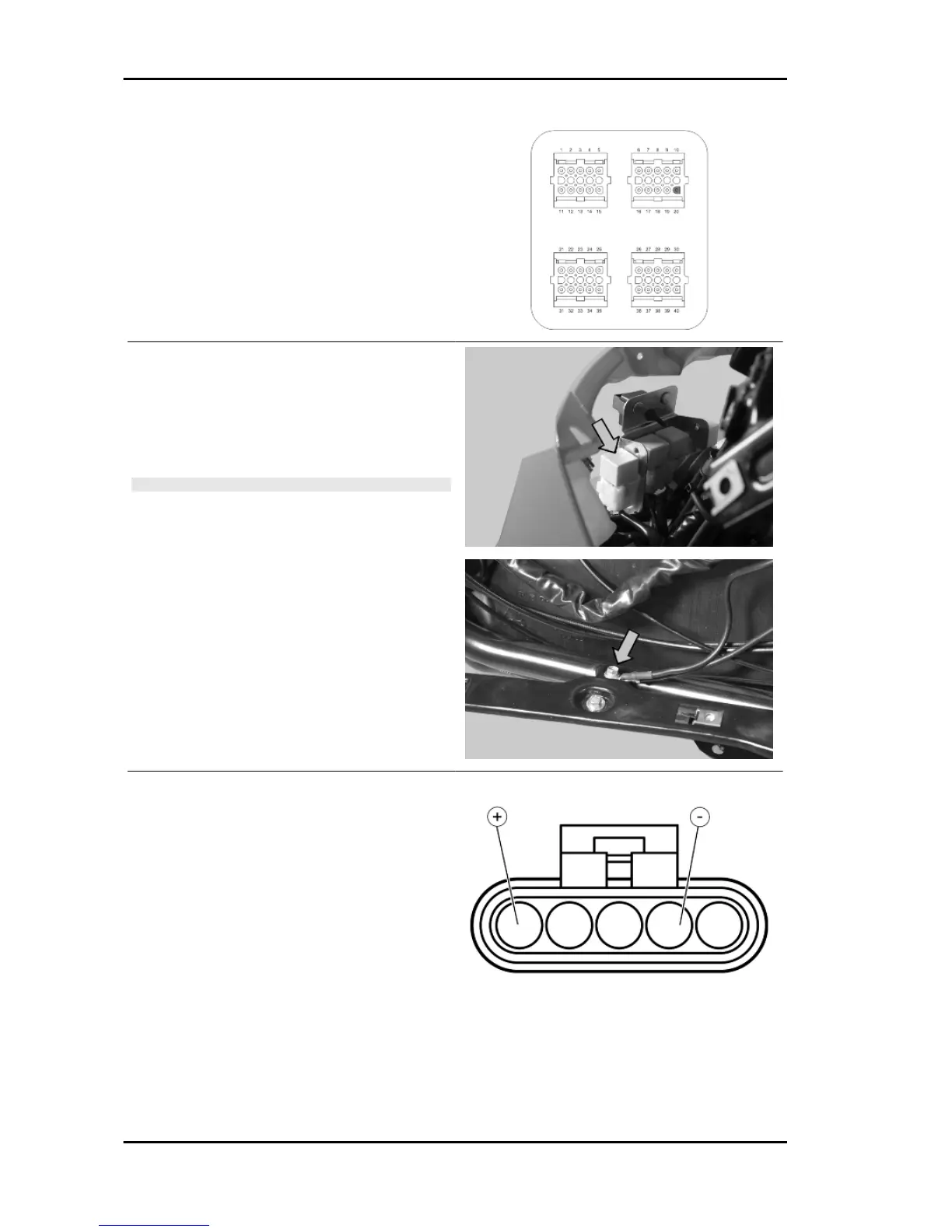

Check if there is steady voltage between the Or-
ange-Blue cable of the remote control base and
the ground lead. If there is not, check the continuity
of the Orange-Blue cable between the fuse box
(15A fuse No. 5) and the remote control base.
N.B.
CONTINUITY TESTS MUST BE CARRIED OUT
WITH THE COMPONENTS DISCONNECTED.
(REMOTE CONTROLS, CONTROL UNIT,
FUSES ETC.).
After switching to «ON», check that there is battery
voltage, for about 2 seconds, between the Black-
Green cable of the pump connector and the
ground lead with the pump connector disconnec-
ted. Otherwise, check the continuity of the Black-
Green cable between the pump connector and the
remote control base.
Check the efficiency of the earth line of the fuel
pump by measuring the continuity between the
pump connector black cable, system side, and the
ground lead.
If, when switching to «ON», the pump continues to
turn after 2 seconds of activation, check, with the
Injection X7 250ie
INJEC - 18

PIAGGIO X7 250ie Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	244 cc
Fuel System	Electronic fuel injection
Rear Suspension	Dual hydraulic shock absorbers
Rear Brake	240 mm disc
Seat Height	790 mm
Cooling System	Liquid cooled
Transmission	CVT
Front Suspension	Telescopic fork
Front Brake	Disc
Max Power	16.2 kW (22 hp) at 8, 250 rpm
