Pioneer VSX-1020-K Service Manual

100
VSX-1020-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4

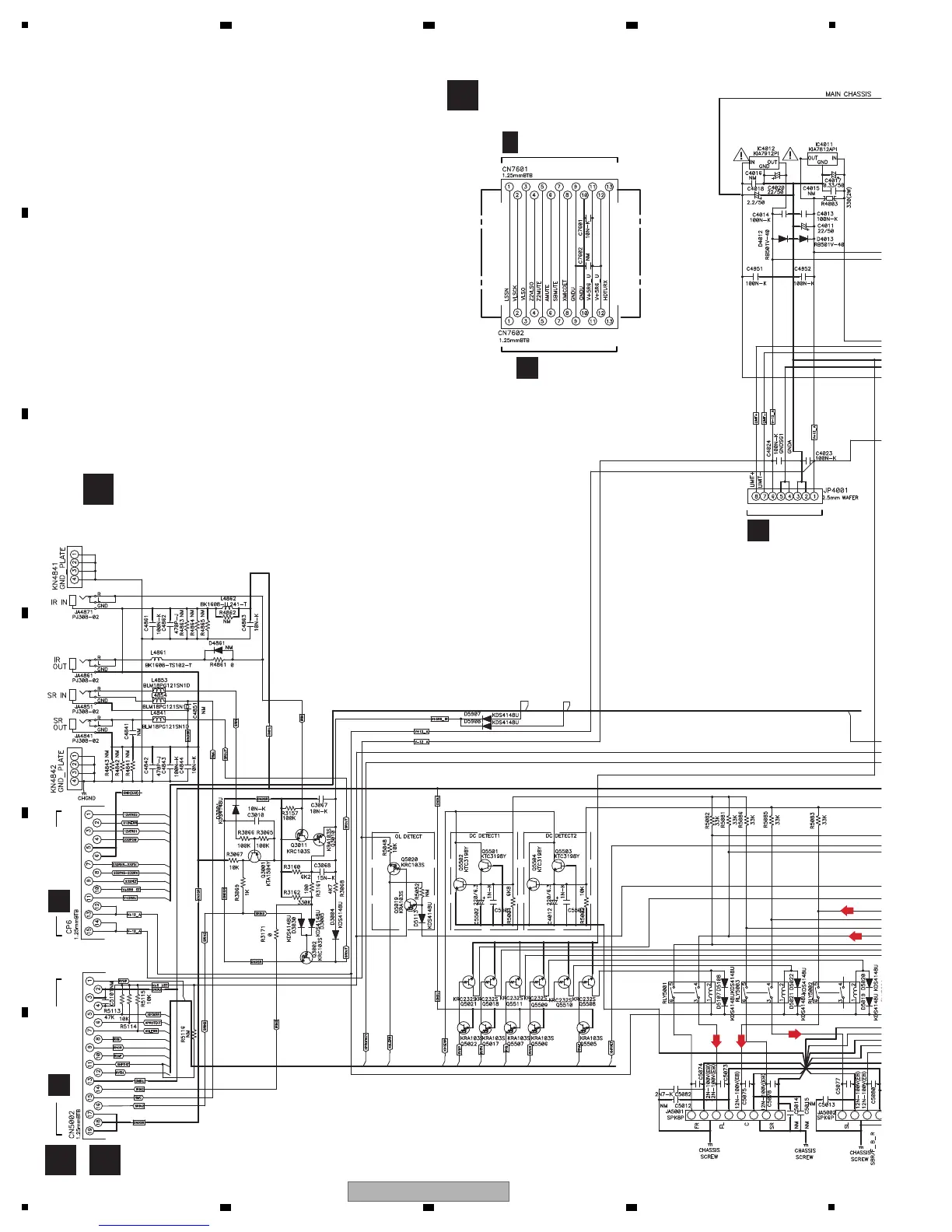

10.19 MAIN and BRIDGE1 ASSYS
O P
O
MAIN ASSY
(7028069211010-IL)
P
BRIDGE1 ASSY
(7028069213010-IL)
A
CN2201
A
CN2107
B
CN8017
B
CN8012
N
3/12
CN1401
(SL)
(FL)
(C)
(FL)
(C)

Pioneer VSX-1020-K Specifications

Power

power requirements	AC 120 V/60 Hz
power consumption	245 Watts
standby power consumption	Less than 0.5 Watts

Weight and Dimensions

width	16.55 inches
height	6.23 inches
depth	14.93 inches
weight	22.4 lbs
