Pioneer VSX-1020-K Service Manual

102
VSX-1020-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4

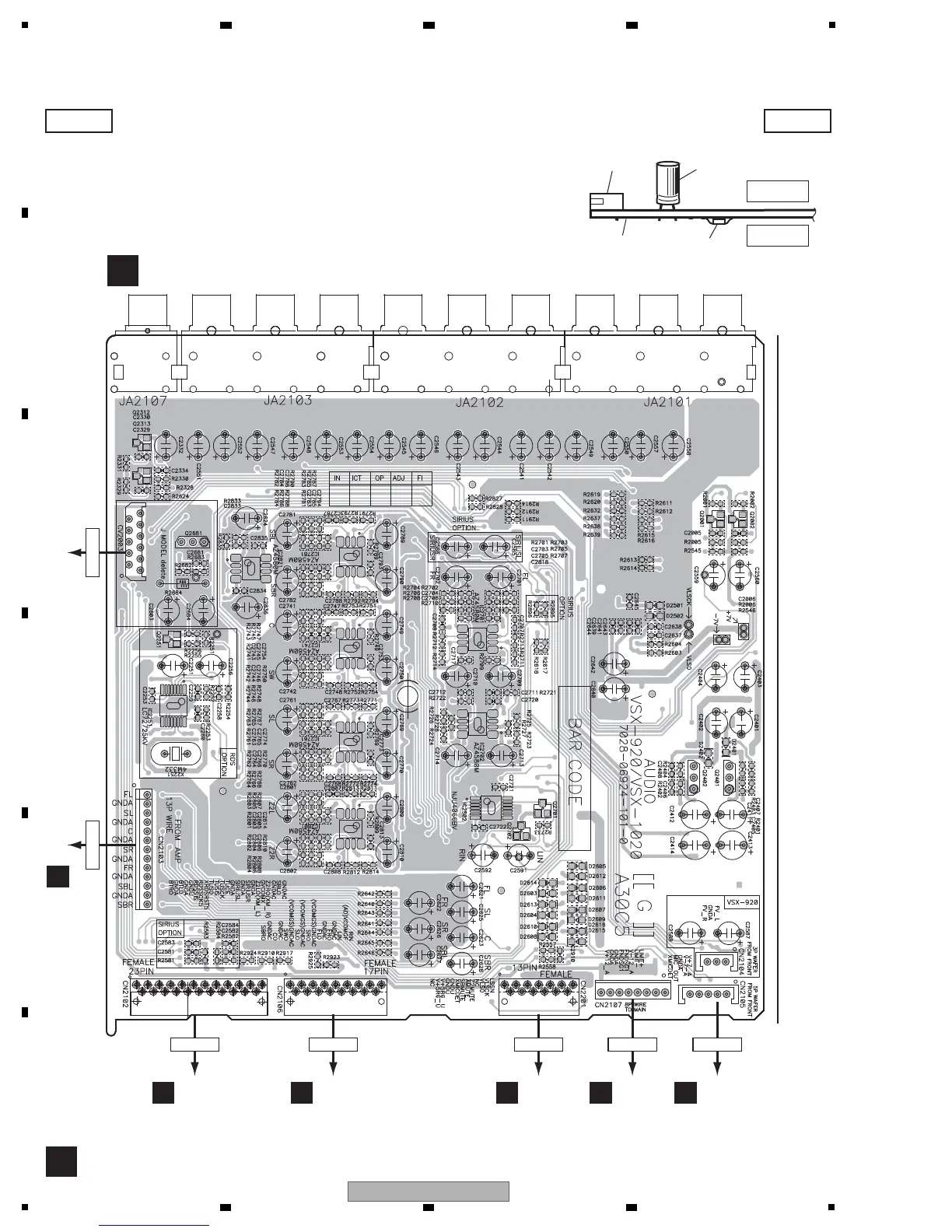

11. PCB CONNECTION DIAGRAM
11.1 AUDIO ASSY
A
A
AUDIO ASSY
SIDE A SIDE A
F
CN7613
CN2102
F
CN7615
CN2106
P
CN7602
CN2201
D
CN3652
CN2105
O
JP4001
CN2107
J
CN5001
CN2103
FM/AM TUNER UNIT
CV2003
Q2312Q2313Q2681Q2251 IC2821
IC2781IC2741
IC2251
IC2761IC2801
IC2502 IC2702 IC2701
Q2001 Q2002
Q2702
Q2701
Q2402 Q2401
NOTE FOR PCB DIAGRAMS :
1. The parts mounted on this PCB include all
necessary parts for several destinations.
For further information for respective desti-
nations, be sure to check with the sche-
matic diagram.
CapacitorConnector
P.C.Board Chip Part
SIDE A
SIDE B
2. View point of PCB diagrams.

Pioneer VSX-1020-K Specifications

Power

power requirements	AC 120 V/60 Hz
power consumption	245 Watts
standby power consumption	Less than 0.5 Watts

Weight and Dimensions

width	16.55 inches
height	6.23 inches
depth	14.93 inches
weight	22.4 lbs
