Pioneer VSX-1020-K Service Manual

60
VSX-1020-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4

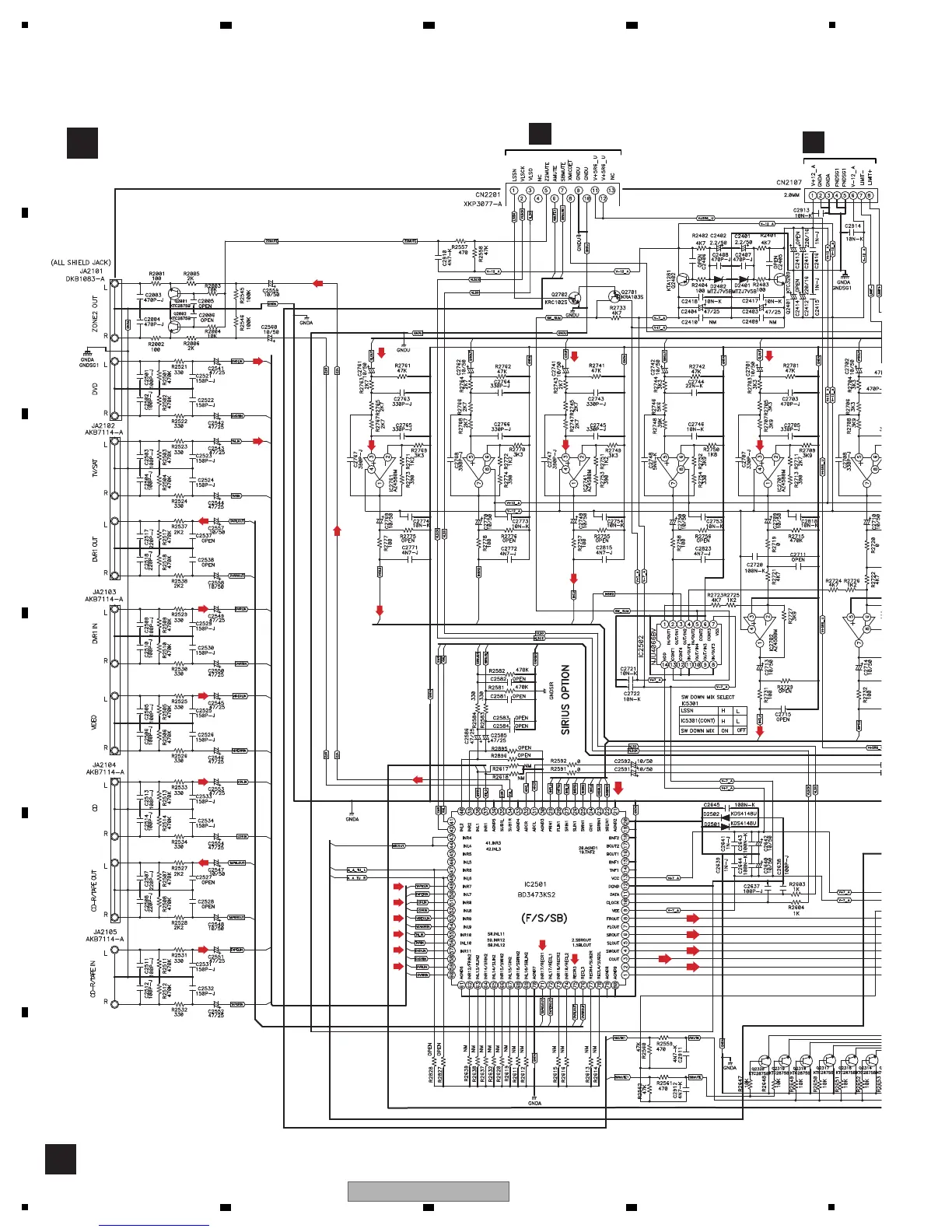

10. SCHEMATIC DIAGRAM
10.1 AUDIO ASSY
A
A
AUDIO ASSY
(7028069241010-IL)
O
JP4001
P
CN7602

Pioneer VSX-1020-K Specifications

Power

power requirements	AC 120 V/60 Hz
power consumption	245 Watts
standby power consumption	Less than 0.5 Watts

Weight and Dimensions

width	16.55 inches
height	6.23 inches
depth	14.93 inches
weight	22.4 lbs
