9. EXPLODED VIEWS AND PARTS LIST

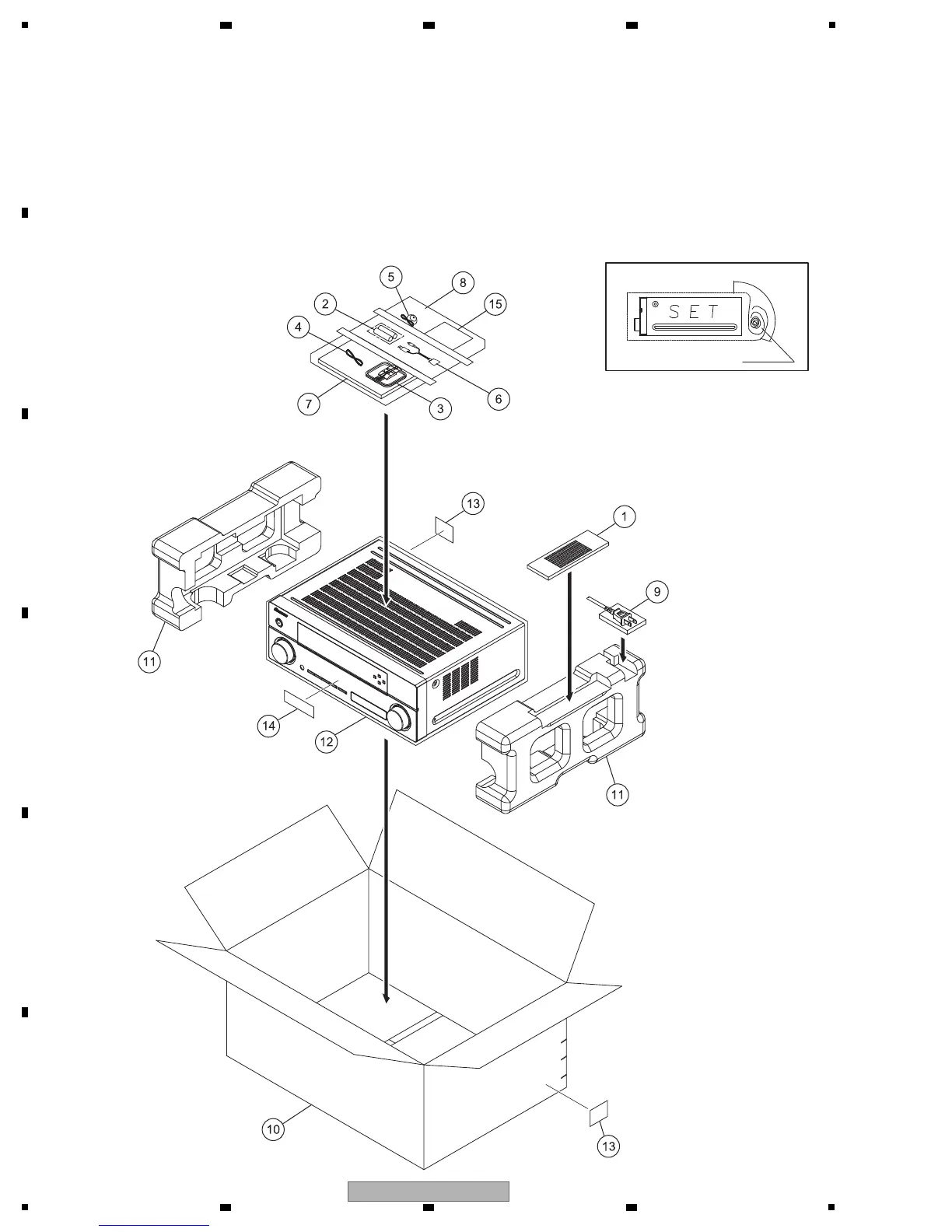

9.1 PACKING SECTION
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
-
Screws adjacent to b mark on product are used for disassembly.
-
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
Poly bag packing style
Cord AC
Tape (clear)
1/2
2/2

Pioneer VSX-1020-K Specifications

Power

power requirements	AC 120 V/60 Hz
power consumption	245 Watts
standby power consumption	Less than 0.5 Watts

Weight and Dimensions

width	16.55 inches
height	6.23 inches
depth	14.93 inches
weight	22.4 lbs
