Pioneer VSX-1020-K Service Manual

70
VSX-1020-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4

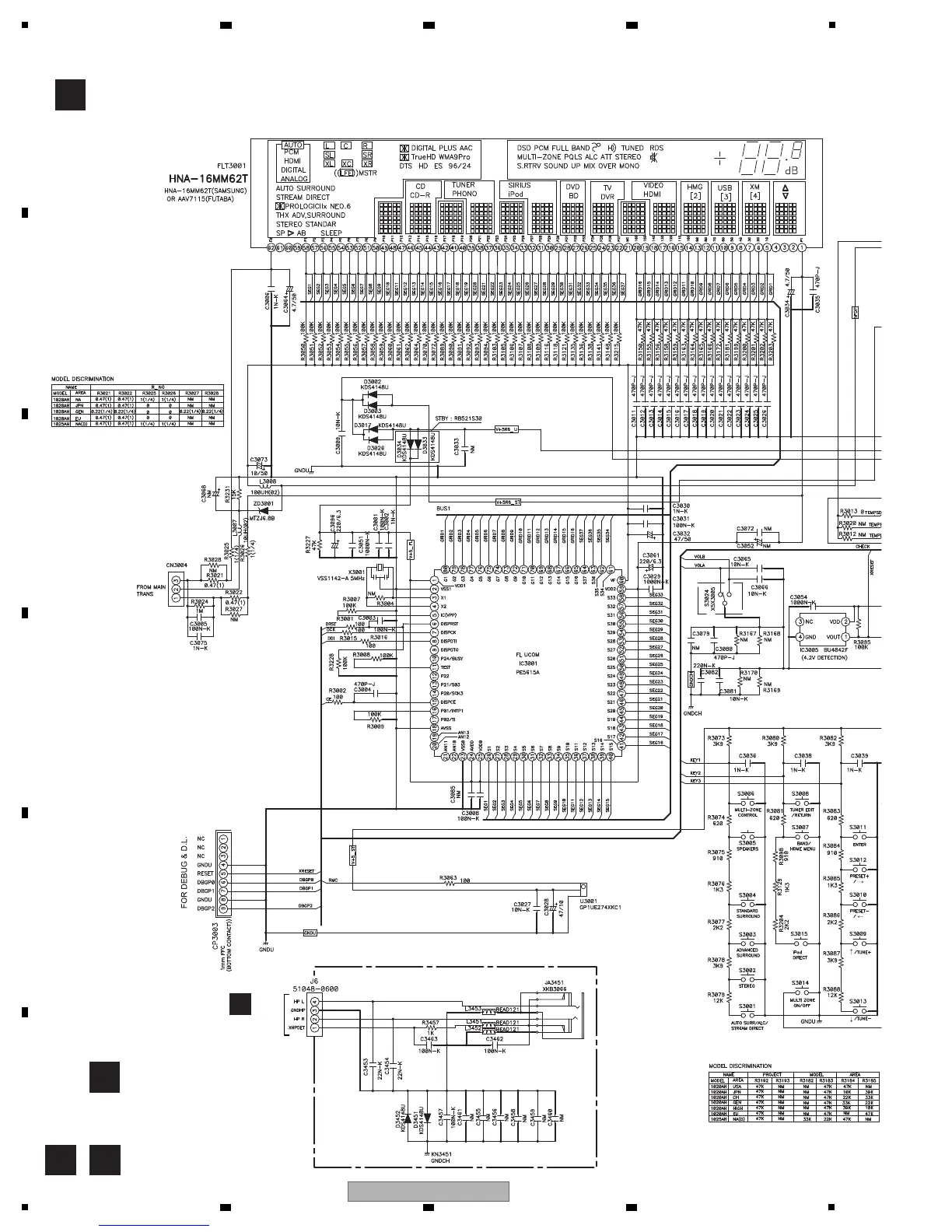

10.6 DISPLAY, HEADPHONE and POWER SW ASSYS
K L
K
DISPLAY ASSY (7028069221010-IL: VSX-1020-K)
(70280692210C0-IL: VSX-1025-K)
L
HEADPHONE ASSY
(7028069225010-IL)
O
JH5301

Pioneer VSX-1020-K Specifications

Power

power requirements	AC 120 V/60 Hz
power consumption	245 Watts
standby power consumption	Less than 0.5 Watts

Weight and Dimensions

width	16.55 inches
height	6.23 inches
depth	14.93 inches
weight	22.4 lbs
