Pioneer VSX-1020-K Service Manual

62
VSX-1020-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4

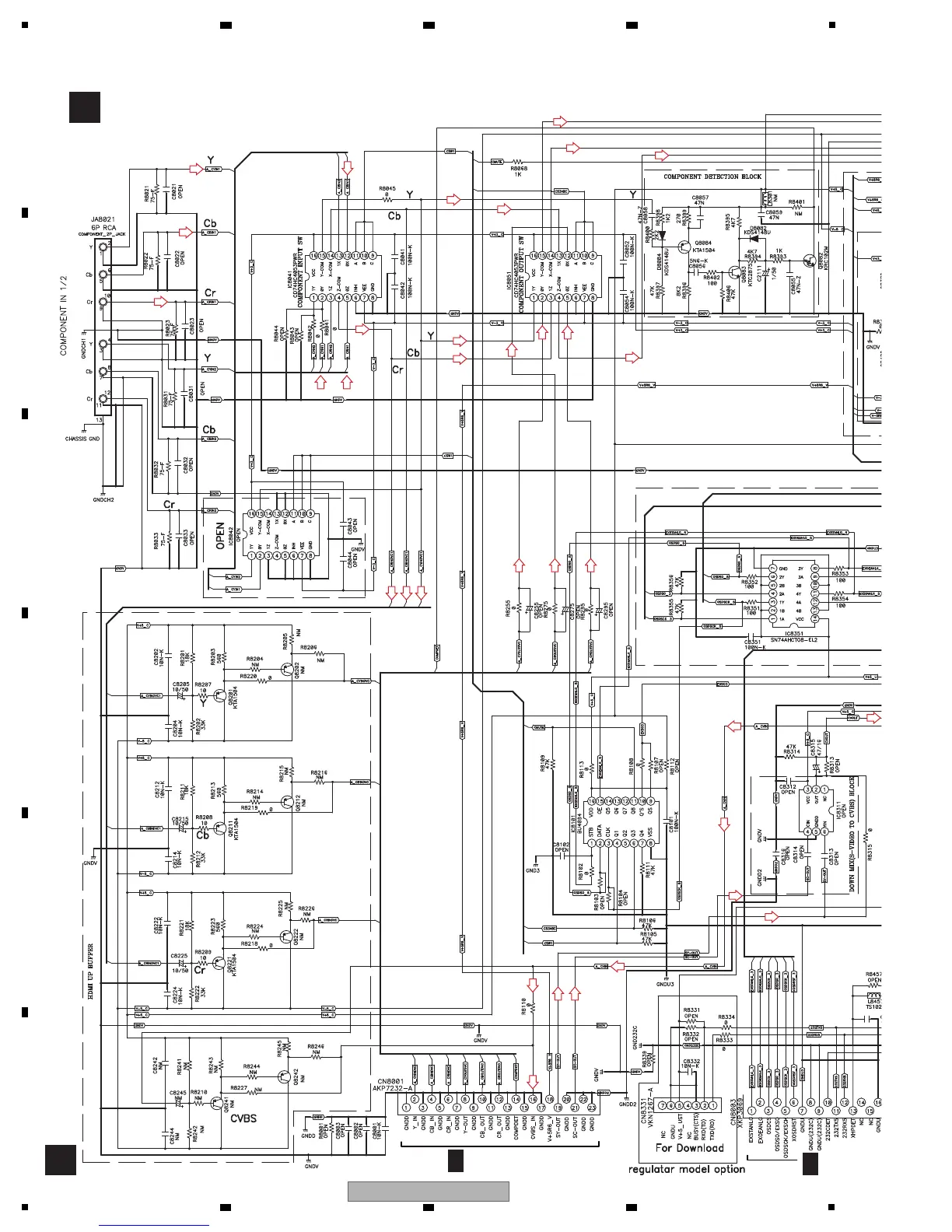

10.2 COMPONENT ASSY
B
B
COMPONENT ASSY
(7028069242010-IL)
N
2/12
CN1
N
2/12
CN1254
(CY)
(Y)
(Y)
(CR)
(CR)
(CB)
(CB)
(CR)
(CR)
(Y)
(CB)
(CB)
(CR)
(CR)
(CB) (CY)
(VSY)
(VSC)
(VCR)
(VCR)
(VCB)
(VCB)
(VCY)
(VCY)
(VSY)
(VSC)
(CY)
(CR)

Pioneer VSX-1020-K Specifications

Power

power requirements	AC 120 V/60 Hz
power consumption	245 Watts
standby power consumption	Less than 0.5 Watts

Weight and Dimensions

width	16.55 inches
height	6.23 inches
depth	14.93 inches
weight	22.4 lbs
