Pioneer VSX-1020-K Service Manual

108
VSX-1020-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4

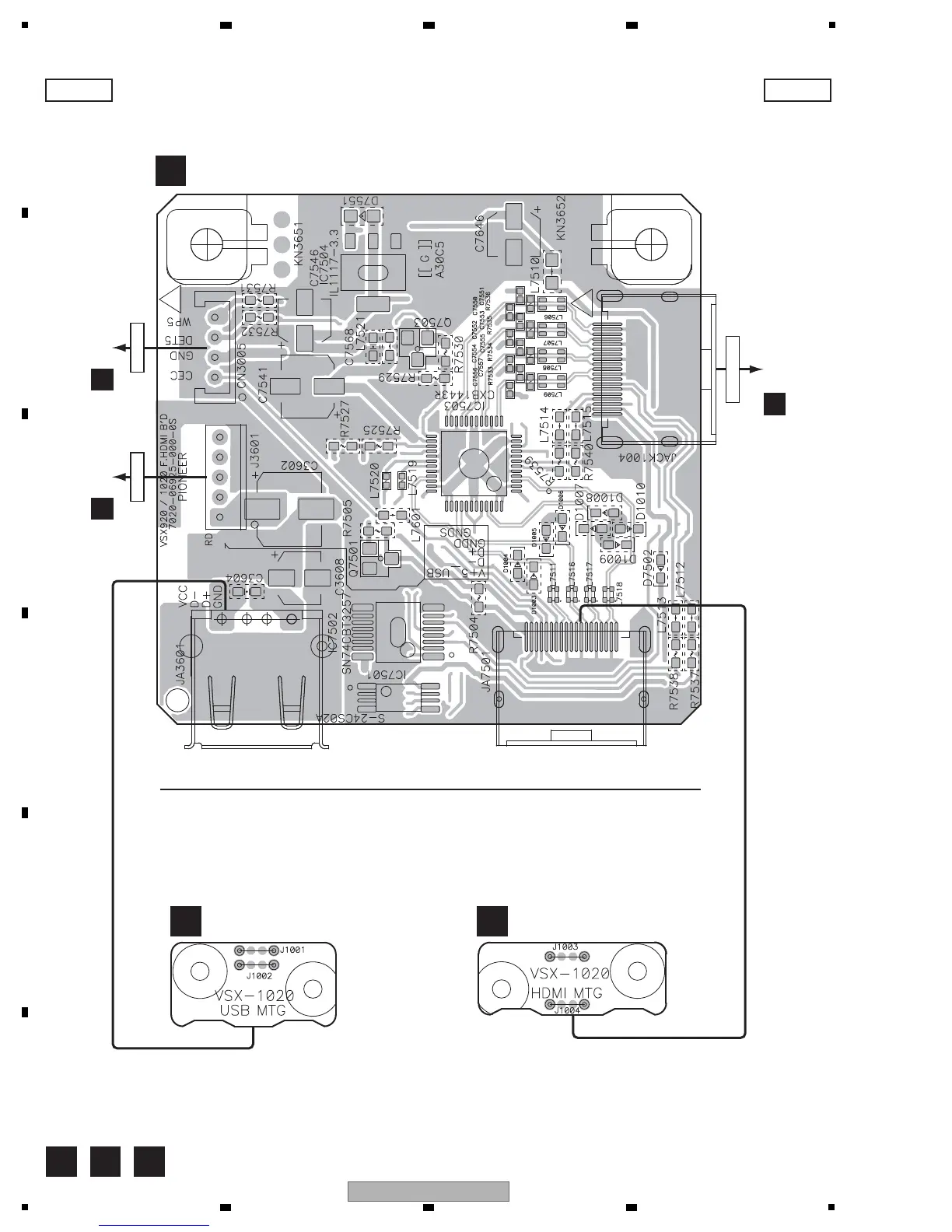

11.4 F-HDMI, USB MTG and HDMI MTG ASSYS
G H I
G
F-HDMI ASSY
H
USB MTG ASSY
I
HDMI MTG ASSY
SIDE A SIDE A
K
CP3002
CN3005
N
CN1259
J3601
N
CN1601
JACK1004
IC7503
IC7502
IC7501
IC7504 Q7503
Q7501

Pioneer VSX-1020-K Specifications

Power

power requirements	AC 120 V/60 Hz
power consumption	245 Watts
standby power consumption	Less than 0.5 Watts

Weight and Dimensions

width	16.55 inches
height	6.23 inches
depth	14.93 inches
weight	22.4 lbs
