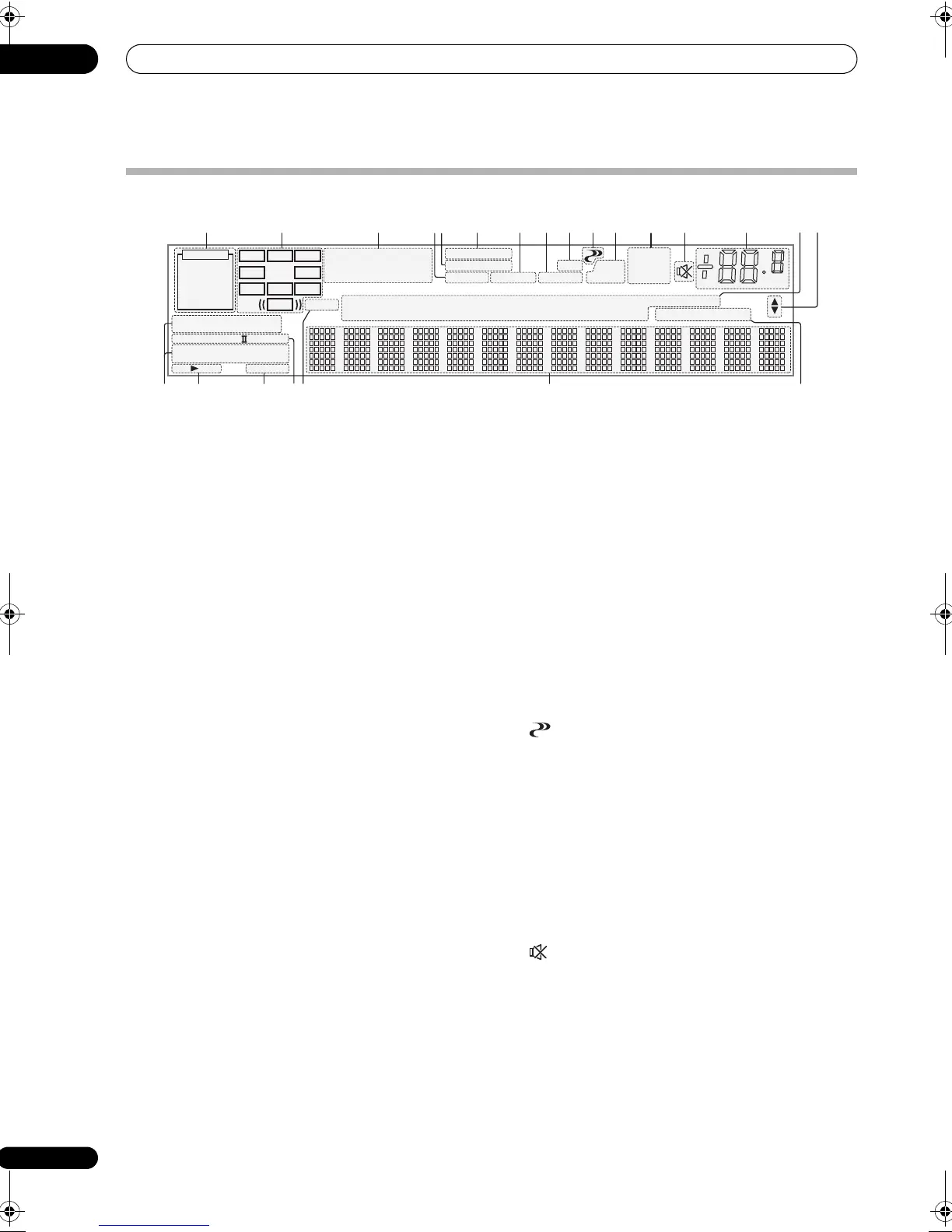

Controls and displays
02
12
En
Display
1 SIGNAL indicators
Light to indicate the currently selected input signal.
AUTO lights when the receiver is set to select the input
signal automatically (page 56).
2 Program format indicators
Light to indicate the channels being input when PCM
signals are being input. They do not indicate the audio
signals being output from the receiver.
L/R – Left front/Right front channel
C – Center channel
SL/SR – Left surround/Right surround channel
LFE – Low frequency effects channel (the (( )) indicators light
when an LFE signal is being input)
XL/XR – Two channels other than the ones above
XC – Either one channel other than the ones above, the mono
surround channel or matrix encode flag
3 Digital format indicators
Light when a signal encoded in the corresponding format
is detected.
4 S.RTRV
Lights when the Sound Retriever function is active
(page 61) .
5 MULTI-ZONE
Lights when the MULTI-ZONE feature is active (page 64).
6 DSD PCM – Light during DSD (Direct Stream Digital) to
PCM conversion with SACDs.
PCM – Lights during playback of PCM signals.
7 SOUND
Lights when any of the Midnight, Loudness or tone
controls feature is selected (page 61).
Lights when Dialog Enhancement is switched on.
8 UP MIX
Lights when the Up Mix is switched on (page 55).
9 Listening mode indicators
AUTO SURROUND – Lights when the Auto Surround
feature is switched on (page 51).
ALC – Lights when the ALC (Auto level control) mode
is selected (page 54).
STREAM DIRECT – Lights when Direct/Pure Direct is
selected (page 54).
ADV.SURROUND – Lights when one of the
Advanced Surround modes has been selected
(page 53).
STEREO – Lights when stereo listening is switched
on (page 53).
STANDARD – Lights when one of the Standard
Surround modes is switched on (page 51).
THX – Lights when one of the Home THX modes is
selected (page 52).
10 ( PHASE CONTROL )
Lights when the Phase Control is switched on (page 56).
11 Analog signal indicators
Light to indicate reducing the level of an analog signal
(page 65).
12 Tuner indicators
TUNED – Lights when a broadcast is being received.
STEREO –
Lights when a stereo FM broadcast is being
received in auto stereo mode.
MONO – Lights when the mono mode is set using
MPX.
13
Lights when the sound is muted (page 10).
PCM
HDMI
DIGITAL
ANALOG
L C R
SL SR
XL XR
XC
LFE
AUTO
DIGITAL PLUS
AUTO SURROUND
STREAM DIRECT
PROLOGIC x Neo:6
THX ADV.SURROUND
STEREO STANDARD
SP AB SLEEP
DSD PCM
DTS HD ES 96/24
MSTR
S.RTRV SOUND UP MIX OVER
MONO
dB
2
MULTI-ZONE STEREO TrueHD WMA9Pro
TUNED
PQLS ALC ATT
2
2
USB
VIDEO
TV
DVD
HDMI
DVR BD
CD
TUNER
CD-R
iPod
[ 2 ]
[ 3 ]
[ 4 ]
21 3 118 9765 1210 13 14 15
21 2217 18 19 20
16
9
4
