Pioneer VSX-LX52 User Manual

The Advanced MCACC menu
10
81
En

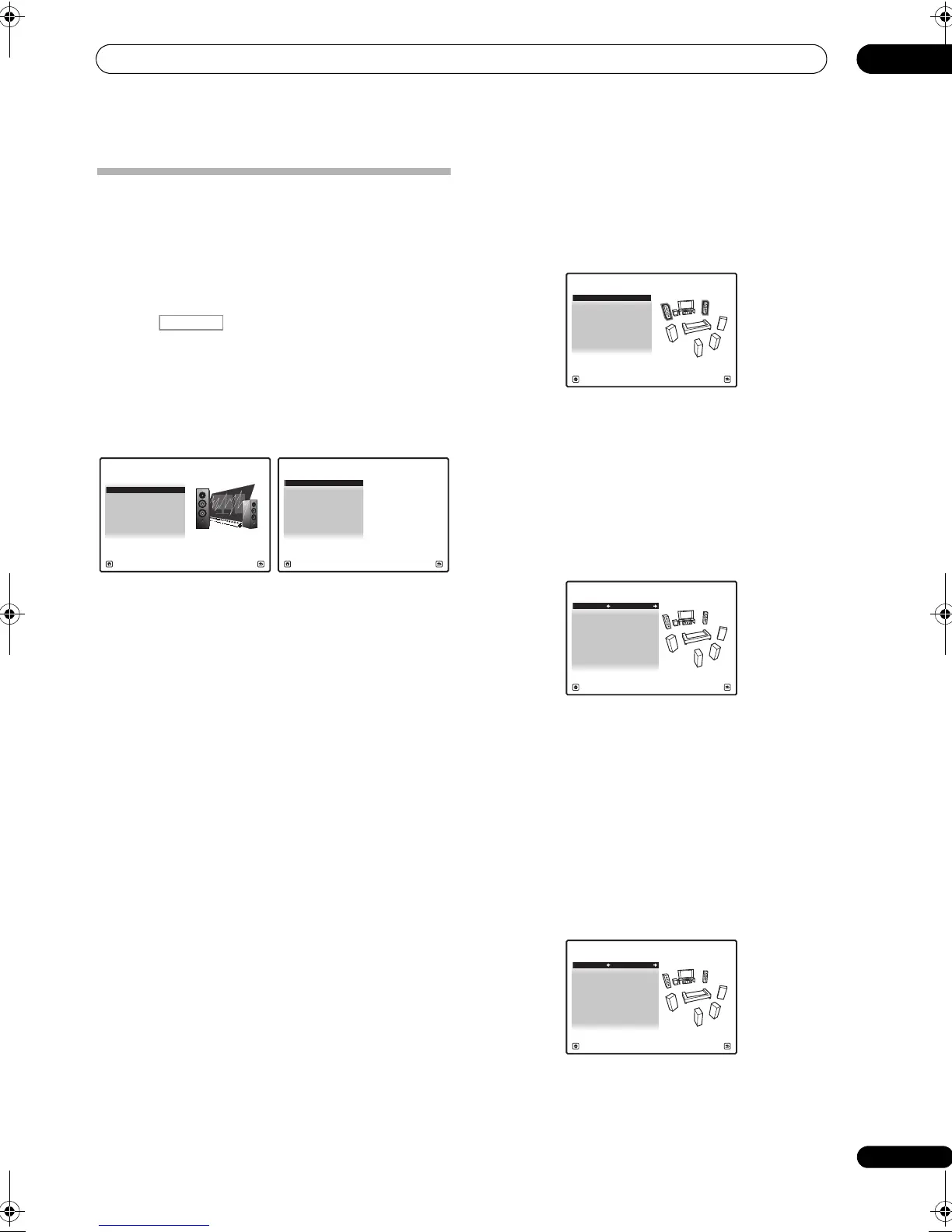

Checking MCACC Data
At the procedure of Automatically setting up for surround
sound (Auto MCACC) on page 39, the procedure of
Automatic MCACC (Expert) on page 73 or after fine-
adjusting at Manual MCACC setup on page 75, you can
check your calibrated settings using the GUI screen or, if
a computer is connected, on the computer’s screen.
1 Press , then press HOME MENU .
A Graphical User Interface (GUI) screen appears on your
TV. Use /// and ENTER to navigate through the
screens and select menu items. Press RETURN to
confirm and exit the current menu.
2 Select ‘ MCACC Data Check ’ from the HOME
MENU
.
3 Select the setting you want to check.
• Speaker Setting – Used to check the settings of the
speaker systems. See Speaker Setting below for more
on this.
• Channel Level – Used to check the output level of the
different speakers. See Channel Level below for more
on this.
• Speaker Distance – Used to check the distance to
the different speakers. See Speaker Distance below
for more on this.
• Standing Wave – Used to check the standing wave
control filter settings. See Standing Wave on page 82
for more on this.
• Acoustic Cal EQ –
Used to check the calibration
values of the listening environment’s frequency
response. See
Acoustic Cal EQ on page 82 for more on
this.
• Output PC – See Output PC on page 82 for more on
this.
4Press RETURN to go back to MCACC Data Check
menu, repeating steps 2 and 3 to check other settings.
5 When you’re finished, press
RETURN .
You will return to the HOME MENU.
Speaker Setting
Use this to display the speaker size and number of
speakers. See
Speaker Setting on page 86 for more on this.
1Select ‘ Speaker Setting ’ from the MCACC Data
Check
menu.
2 Select the channel you want to check.
Use / to select the channel. The corresponding
channel on the layout diagram is highlighted.
Channel Level
Use this to display the level of the various channels. See
Channel Level on page 87 for more on this.
1Select ‘ Channel Level ’ from the MCACC Data
Check
menu.
2 When ‘
MCACC ’ is highlighted, use / to select
the MCACC preset you want to check.
The level of the various channels set at the selected
MCACC pr eset is displayed. ‘---’ is displayed for channels
that are not connected.
Speaker Distance
Use this to display the distance from the different
channels to the listening position. See Speaker Distance
on page 88 for more on this.
1Select ‘ Speaker Distance ’ from the MCACC Data
Check
menu.
RECEIVER
1. Advanced MCACC
2. MCACC Data Check
3. Data Management
4. System Setup
Exit Return
HOME MENU
A/V RECEIVER
a. Speaker Setting
b. Channel Level
c. Speaker Distance
2.MCACC Data Check
d. Standing Wave
e. Acoustic Cal EQ
f. Output PC
A/V RECEIVER
Exit Return
Front : LARGE
Surr : LARGE
Center : LARGE
2a.Speaker Setting
SB : LARGE x 2
SW : YES
A/V RECEIVER
Exit Return
A/V RECEIVER
Exit Return
MCACC : M1.MEMORY 1
L : 0.0 dB
2b.Channel Level
C : 0.0 dB
R : 0.0 dB
SBR : 0.0 dB
SR : 0.0 dB
SBL : 0.0 dB
SL : 0.0 dB
SW : 0.0 dB
A/V RECEIVER
Exit Return
L : 3.61m
2c.Speaker Distance
C : 3.69m
R : 3.51m
SBR : 5.77m
SR : 2.74m
SBL : 5.13m
SL : 2.26m
SW : 3.54m
MCACC : M1.MEMORY 1
