Connecting your equipment
03
24
En
Connecting your DVD player with no HDMI output

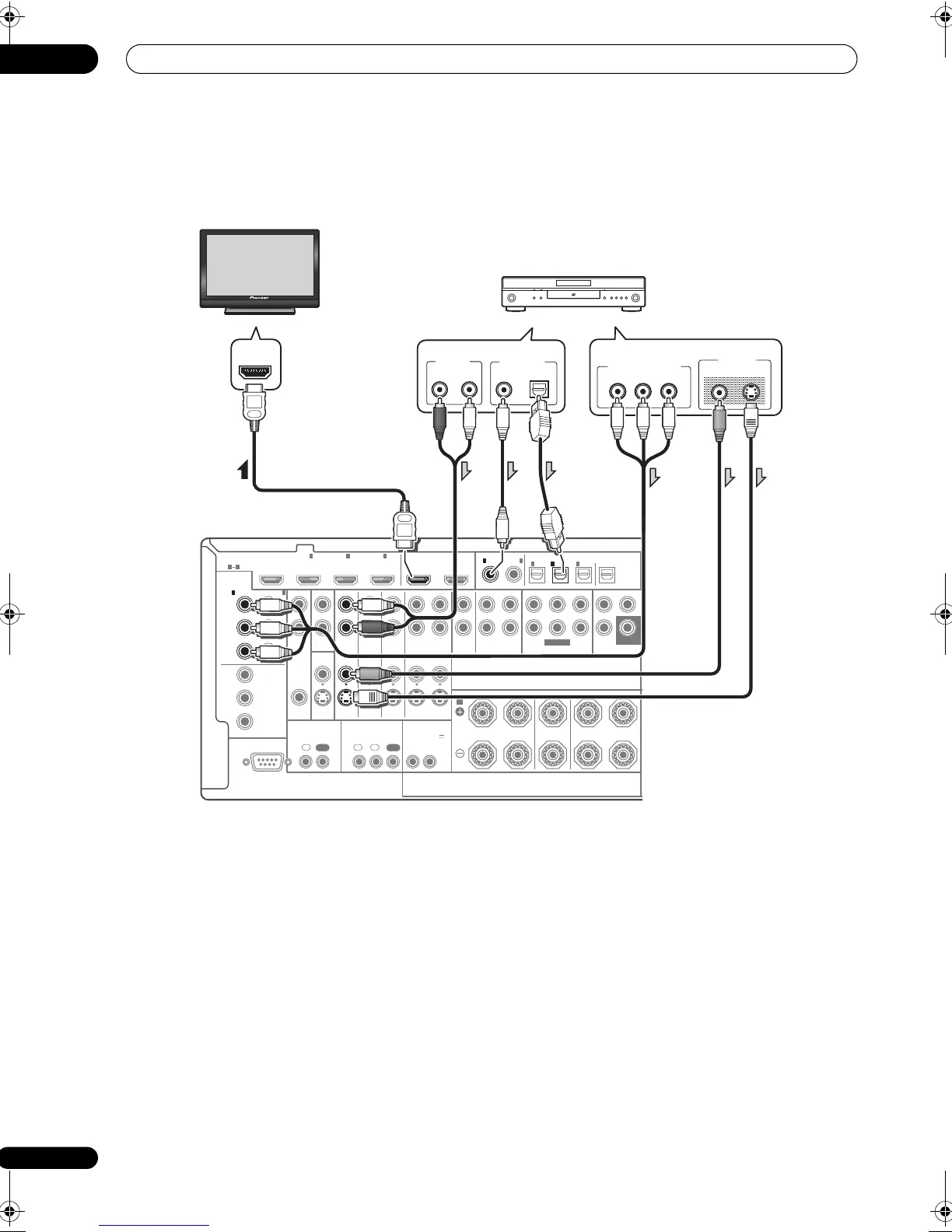

This diagram shows connections of a TV (with HDMI input) and DVD player (or other p layback component with no
HDMI output) to the receiver.
• If you want to listen to the sound of the TV over the
receiver, connect the receiver and TV with audio
cables.
•Component video should give superior picture quality
when compared to composite
or S-Video. You can also
take advantage of progressive scan video (if your
source and TV are both compatible), which delivers a
very stable, flicker-free picture. See the manuals that
came with your TV and source component to check
whether they are compatible with progressive-scan
video.
•If your DVD player offers multi-channel analog audio
outputs, see Connecting the multichannel analog inputs
on page 28
.
RS-232C
COMPONENT
VIDEO
HDMI
ZONE2
VIDEO
S-VIDEO
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
ASSIGN-
ABLE
MONITOR
OUT
MONITOR
OUT
IN
Y
L
R
P
B
P R
Y
P
B
P R
Y
OUT
DVD
IN
TV/SAT
IN
VIDEO DVR
IN
CD
ININOUT
CD-R/TAPE
MULTI CH IN PRE
SPEAKERS
OPTICAL
COAXIAL
INOUT
ZONE3
OUT
P
B
P R
1
INBD IN
1
IN
2
IN OUT 1 OUT 2
(
KURO
LINK
)
(
DVD
) (
CD
)(
TV/SAT
) (
DVR
) (
VIDEO
)
3
IN
1
IN
1
A
IN
2
IN
OUT
FRONT
R
L
R
L
CENTER SURROUND
FRONT CENTER SURROUND FRONT CENTER
S
3
IN
2
1 3
(
DVD
)
IN
2
(
DVR
)
CONTROL IR
12 V TRIGGER
IN IN IN
OUT OUT
12
12
(OUTPUT 12 V
TOTAL 50 mA MAX)
SUBWOOFER
SUBWOOFER
HDMI IN
ANALOG
R
AUDIO OUT
VIDEO OUT
VIDEO S-VIDEO
Y
P
B
PR
COMPONENT VIDEO OUT
DIGITAL OUT
COAXIAL OPTICAL
L
DVD player, etc.
HDMI/DVI-compatible
monitor or flat screen TV
Select one
Select one
