SECTION 2.2 – Hydraulic Systems
C-Monster HPU Removal / Installation
INSTALLATION TOOLS:
• 5/8” Wrench (CM2)
• 9/16” Wrench (CM1)
• Green Marine™ ISO-32 Hydraulic Fluid
PRESSURE RELIEF:
IMPORTANT: Pressure must be relieved before proceeding
STEP 1 Lower the Power-Pole Anchor down so the Everflex™ spike is touching the ground.
WARNING: Do not touch Spike with bare hands.
STEP 2 Manually push the anchor into closed position, relieving pressure. Manually lower the anchor back to the
ground.
REMOVAL:
STEP 1 Disconnect the RED 12V (+) wire from the Battery Source, or remove the Fuse.
STEP 2 CM1 Disconnect the Hydraulic Tubing by loosening the Compression Fitting Nuts with a 9/16”
Wrench.
CM2 Disconnect Hydraulic Cylinder Fittings with a 5/8” Wrench.
NOTE: Cover the end of the hydraulic tubing/hose to avoid getting contaminants in the system.

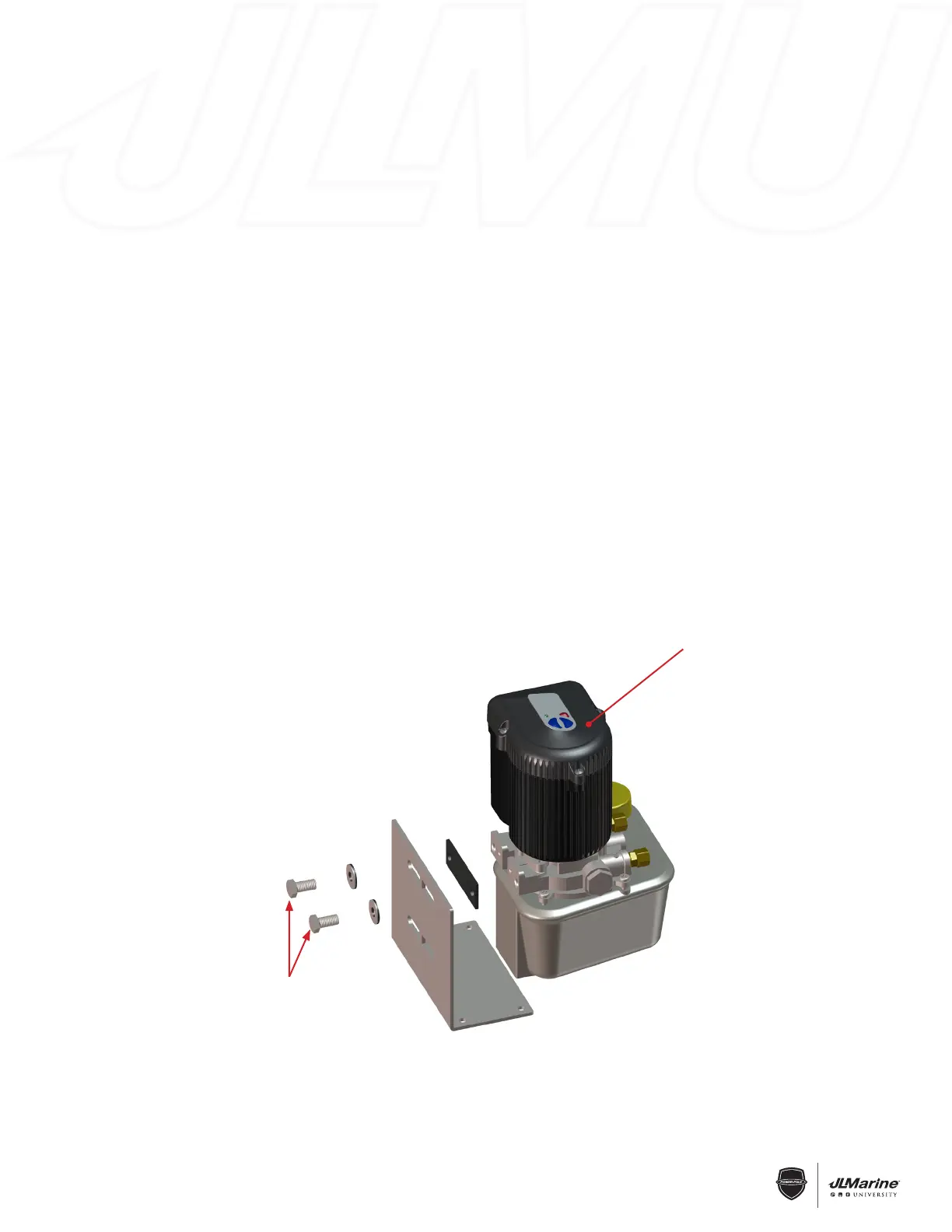

STEP 3 Remove the old HPU from its mounting bracket by loosening the bolts that secure it with a 9/16”
Wrench. FIG 1
9/16” wrench
Figure 1
HPU
