28 | MOVE ZR Installation & Owner’s Guide
STOWING, DEPLOYING, AND ADJUSTING

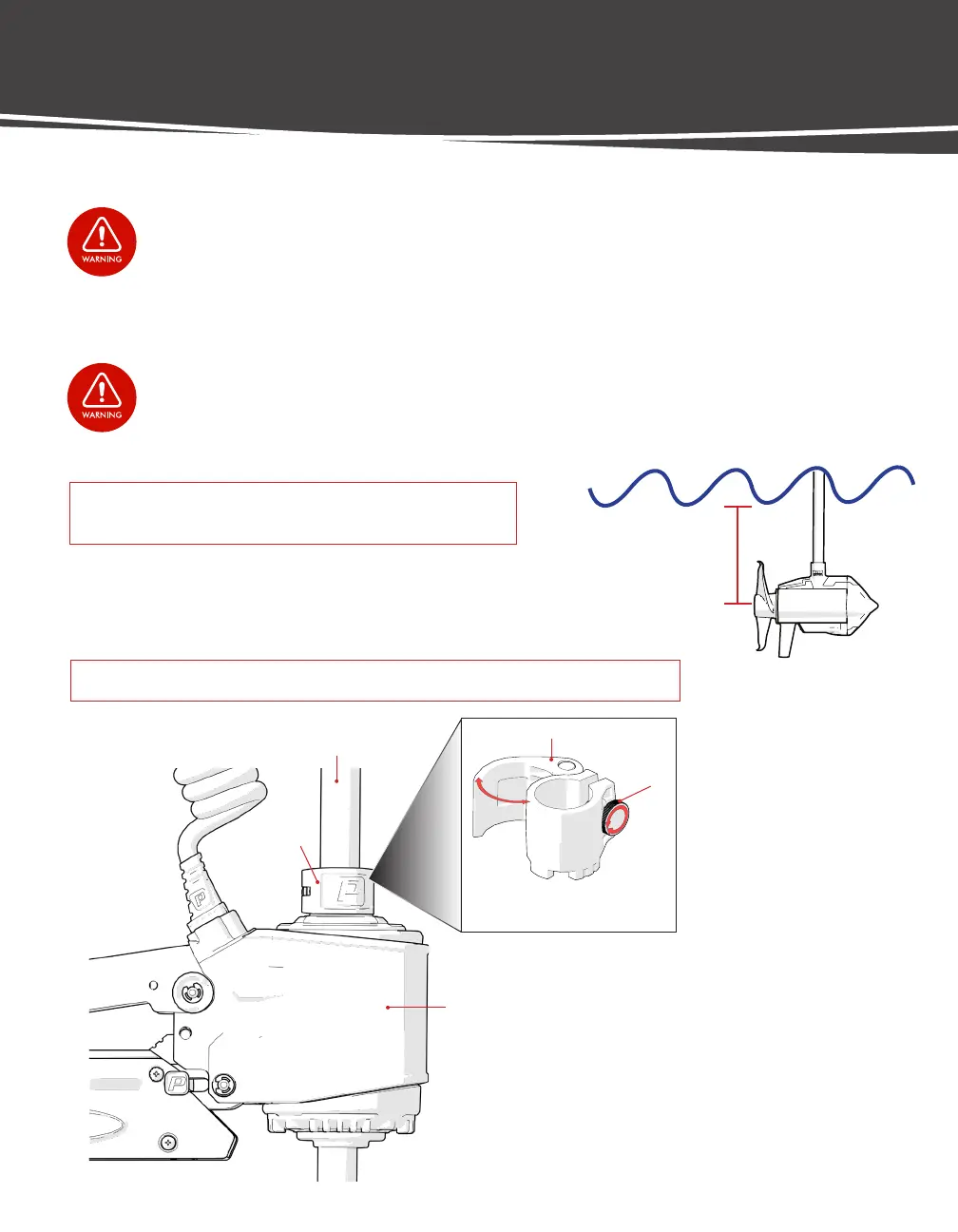

ADJUSTING THE MOVE ZR DEPTH
STEP 2 Slide the Propulsion Motor up or down until it is in the desired position.
NOTICE: For optimum operation, the Propulsion Motor must
be at least 12" below the water's surface.
STEP 3 Clasp the Clamp Handle back into its original position.
STEP 4 If the Shaft Clamp does not hold the Shaft in place and keep it from
sliding while the Clamp Handle is closed, open the Clamp Handle
and tighten the Thumb Screw. Then, close the Clamp Handle.
Clamp Handle
Thumb
Screw
Clamp Adjustment
Shaft Clamp
Shaft
Die Cast Motor Housing
The Move's depth may be adjusted using the Shaft Clamp to ensure it stows properly or the Propulsion Motor is deep
enough in the water for optimum performance.
STEP 1 While firmly grasping the Shaft, open the Clamp Handle.
IMPORTANT! The Shaft Clamp MUST be tight or the ZR will not function properly.
Waterline
12 Inches
When stowing or deploying the Move, keep fingers clear of all hinges, pivot points and moving parts. To prevent
injury, always use the Pull Cord to stow or deploy the unit.
Once the Clamp Handle has been opened the Propulsion Motor can freely fall, creating a pinching hazard
between the Navigation Head and Die Cast Motor Housing.
