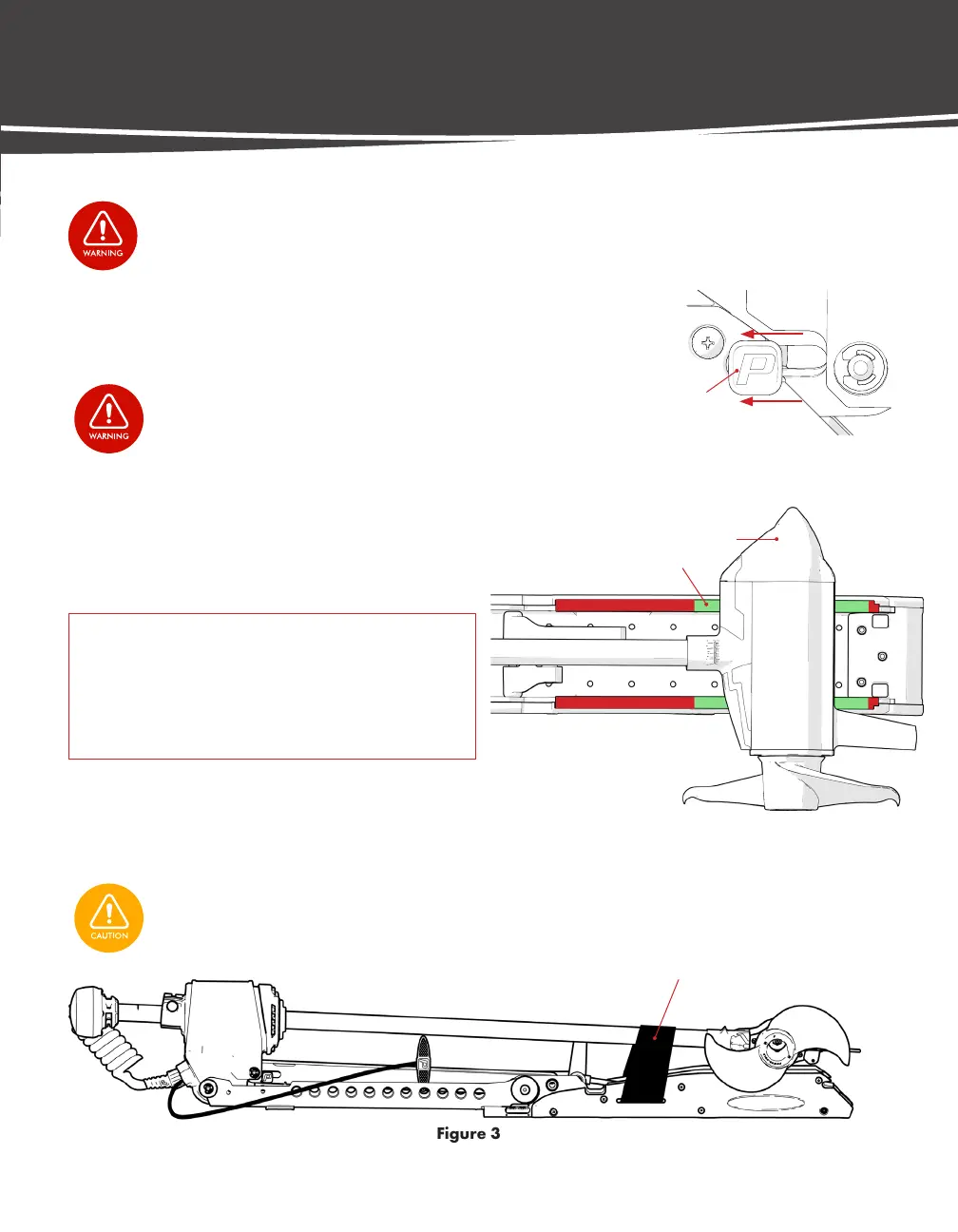

DEPLOYING THE MOVE ZR
IMPORTANT! The Propulsion Motor must be
properly seated on the flat part of the
Rubber Bumpers (shown as green in
FIG 2). If the unit is not seated properly,
redeploy the unit and follow Adjusting
Move Depth page 28.
STOWING THE MOVE ZR
Any time the trolling motor is not in use, whether when
operating the main motor or when trailering, the trolling
motor must be placed in its proper, stowed position. To avoid
damage to the unit, vessel, and/or passengers, follow the
listed stowing procedure and parameters.
Lock Bar
Figure 1
Lock Bar Position
Figure 2
Proper Stowing Position
Rubber Bumper
Propulsion Motor
Figure 3
Properly Stowed Trolling Motor
Tie-Down Strap
STEP 1 Use the Pull Cord to lift the propulsion motor out of
the water and onto the trolling motor base.
STEP 2 If needed, attach the Tie-Down Strap. FIG 3
STOWING, DEPLOYING, AND ADJUSTING
STEP 1 If needed, detach the Security Strap.
STEP 2 Use Pull Cord to lift trolling motor up and over the bow. Once the trolling
motor is in its properly deployed position, the Lock Bars will slide into
place. FIG 1
When stowing or deploying the Move, keep fingers clear of all hinges, pivot points and moving parts. To prevent
injury, always use the Pull Cord to stow or deploy the unit.
NEVER attempt to operate the trolling motor until it is in its
properly deployed position.
Failure to properly stow the trolling motor in accordance with parameters
may result in damage to the shaft and/or other components on the unit.
