Section 4 Configuration & Options

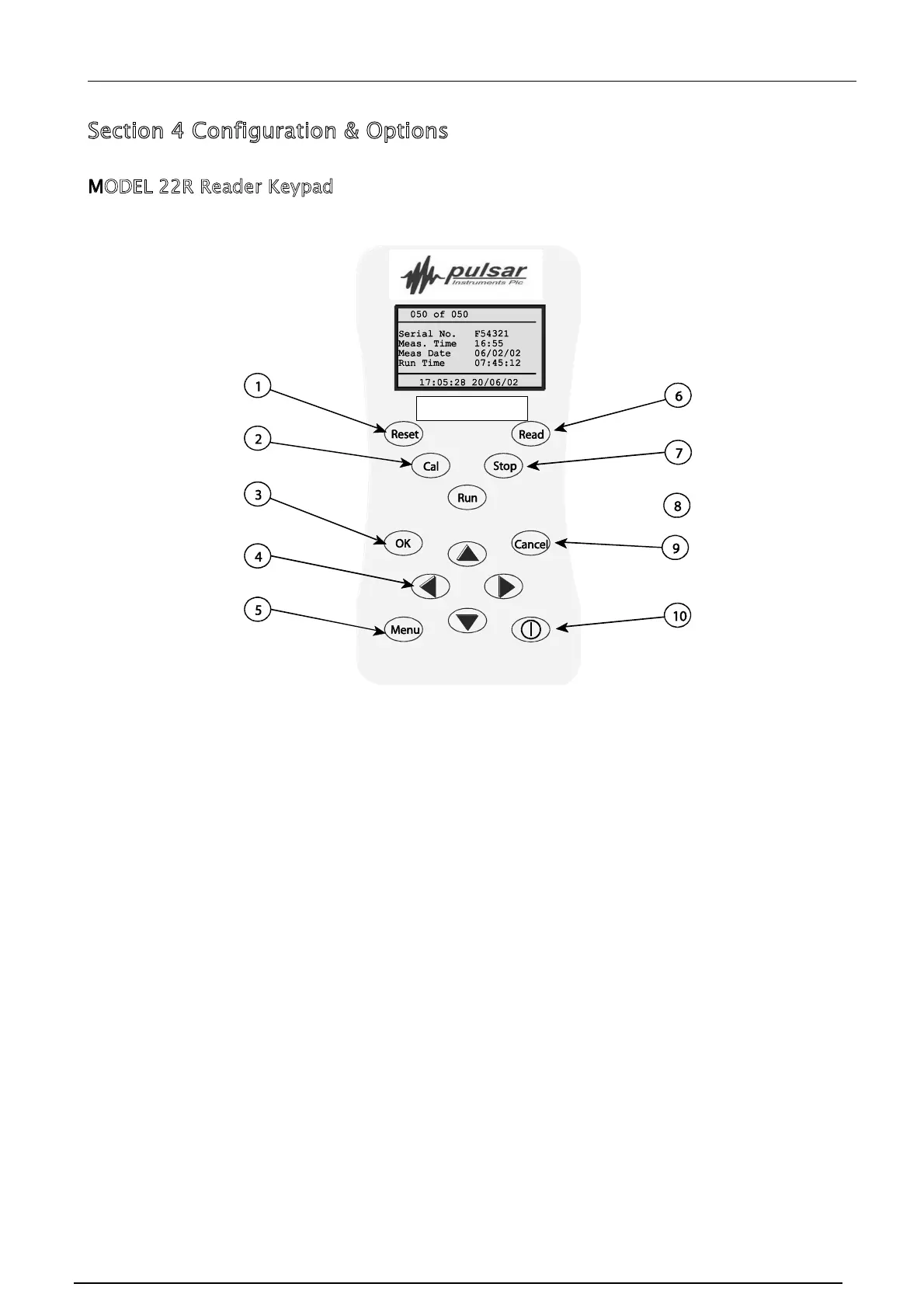

MODEL 22R Reader Keypad
The keypad of the MODEL 22R Reader unit has the following keys as shown in the
figure above:
(1) Reset Resets the dosemeter. All information in the dosemeter is deleted
and the configuration data programmed.
(2) Cal Calibrates the dosemeter using the internal Acoustic Calibrator. This
key is also used for the second calibration check if required.
(3) OK Accepts data entry or confirms menu options.
(4) Arrow Keys Allows the user to move around the menus and information shown
on the display.
(5) Menu Displays the menu options.
(6) Read Downloads the measurement information from the dosemeter to the
Reader.
(7) Stop Stops the dosemeter measurement.
(8) Run Starts the dosemeter measurement.
(9) Cancel Exits from the menu options.
(10) Power Switches the Reader on and off. The Reader will automatically
switch off after 2 minutes of inactivity.
