Output Zone − Presets
The Presets screen is used to perform these tasks:
• Recalling preprogrammed QSC loudspeaker tunings.
• Creating, saving and recalling custom loudspeaker
tunings using the provided Filters and PEQ.
• Saving and recalling output channel settings.
Factory Loudspeaker Library
When Factory / User is set to Factory, a list of QSC
loudspeakers is displayed. Factory tunings for QSC
loudspeakers use a processing block, comprised of FIR
and IIR filters, that is not user accessible.
Recalling a factory-tuned loudspeaker also recalls all of the
factory default channel settings unless the Recall Omits
have been set. (See item 6 below.)
To recall a QSC loudspeaker preset:
a. Select a loudspeaker series from the Series panel.
A list of QSC models from the selected series is
displayed in the Type panel.
b. Select a Type (model) from the Type panel.
Some loudspeaker models may have variations on
the basic tuning for use in different applications.
These variations will be shown in the Preset Name panel.
c. Make a selection from the Preset Name panel.
d. Touch Recall to load the preset.
To clear a preset:
a. Scroll to the top of the Series panel, select (Default)
b. Touch Recall .
Controls:

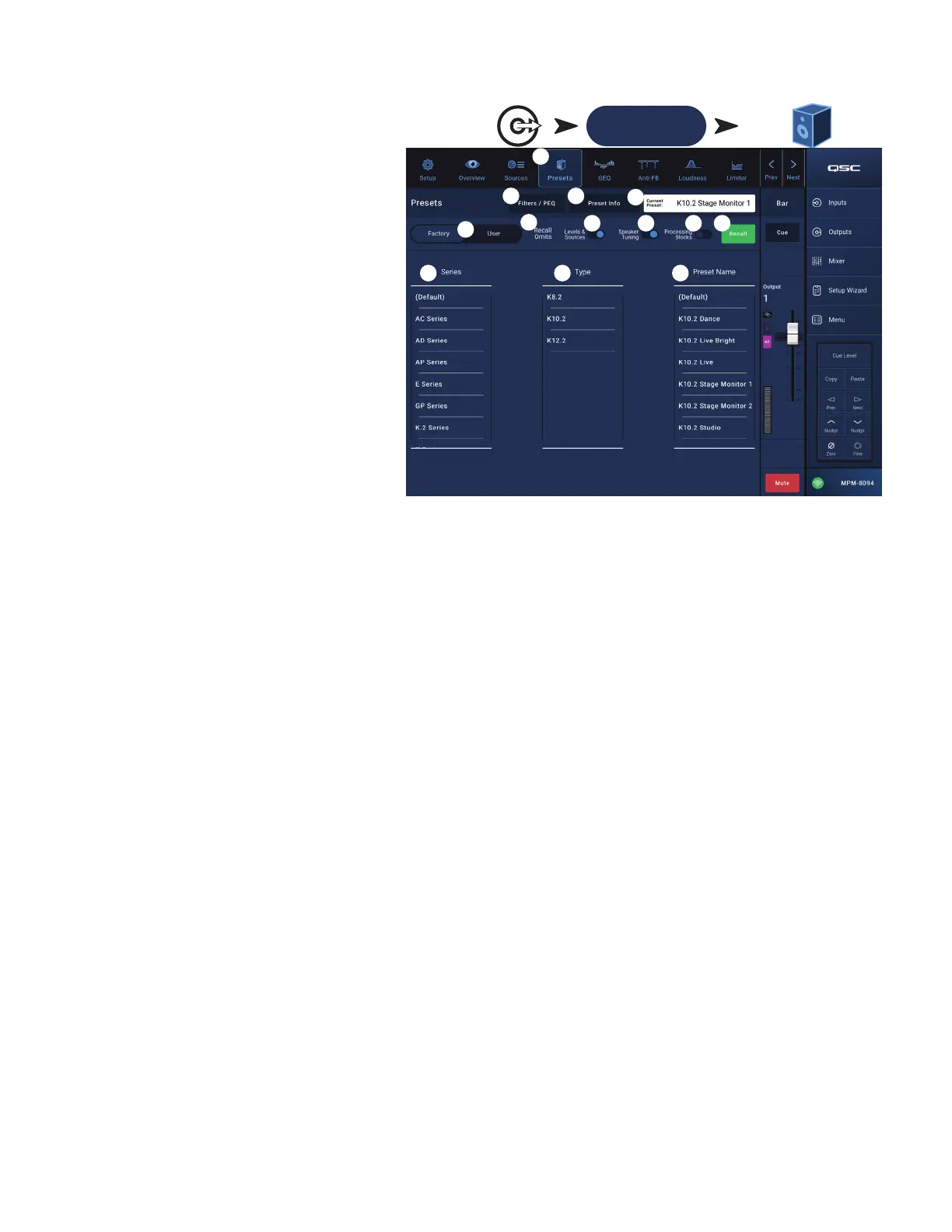

1. Presets button – Opens the Presets screen.
2. Filters/PEQ button – Opens the Filters/PEQ screen (described below) where custom tunings can be created. This equalizer may also be used
in addition to the factory tuning to “season to taste”.
3. Preset Info button – Displays a text box with information about the selected preset.
4. Current Preset field – Displays the name of the currently loaded loudspeaker preset.
5. Factory / User switch – Touch User to open a screen where custom user tunings and presets are stored and managed.
6. Recall Omits – When an Output Channel Preset is saved, all output channel settings are saved with the preset. The Recall Omits section allows
some settings to remain unchanged when the preset is recalled.
a. Omit Levels and Sources switch – Level and Source assignments are not affected by the preset recall.
b. Omit Speaker Tuning switch – The factory and user tunings are not affected by the preset recall.
c. Omit Processing Blocks switch – The GEQ, Anti-Feedback, Loudness, and Limiter are not affected by the preset recall.
7. Recall button – Loads the loudspeaker tuning selected from the Series, Type and Preset panel. If “Default” is selected, the factory tuning filters
will be set to flat.
8. Series panel – A listing of selectable QSC loudspeaker families or Series.
9. Type panel – A listing of selectable loudspeaker Types or models belonging to the selected Series.
10. Preset Name panel – A listing of available presets for the selected Series and Type.
Outputs Touch Zones
Touch a Channel
Presets Button
Zones
3
4
1
109
6
8
5
2
7
6a 6b 6c
